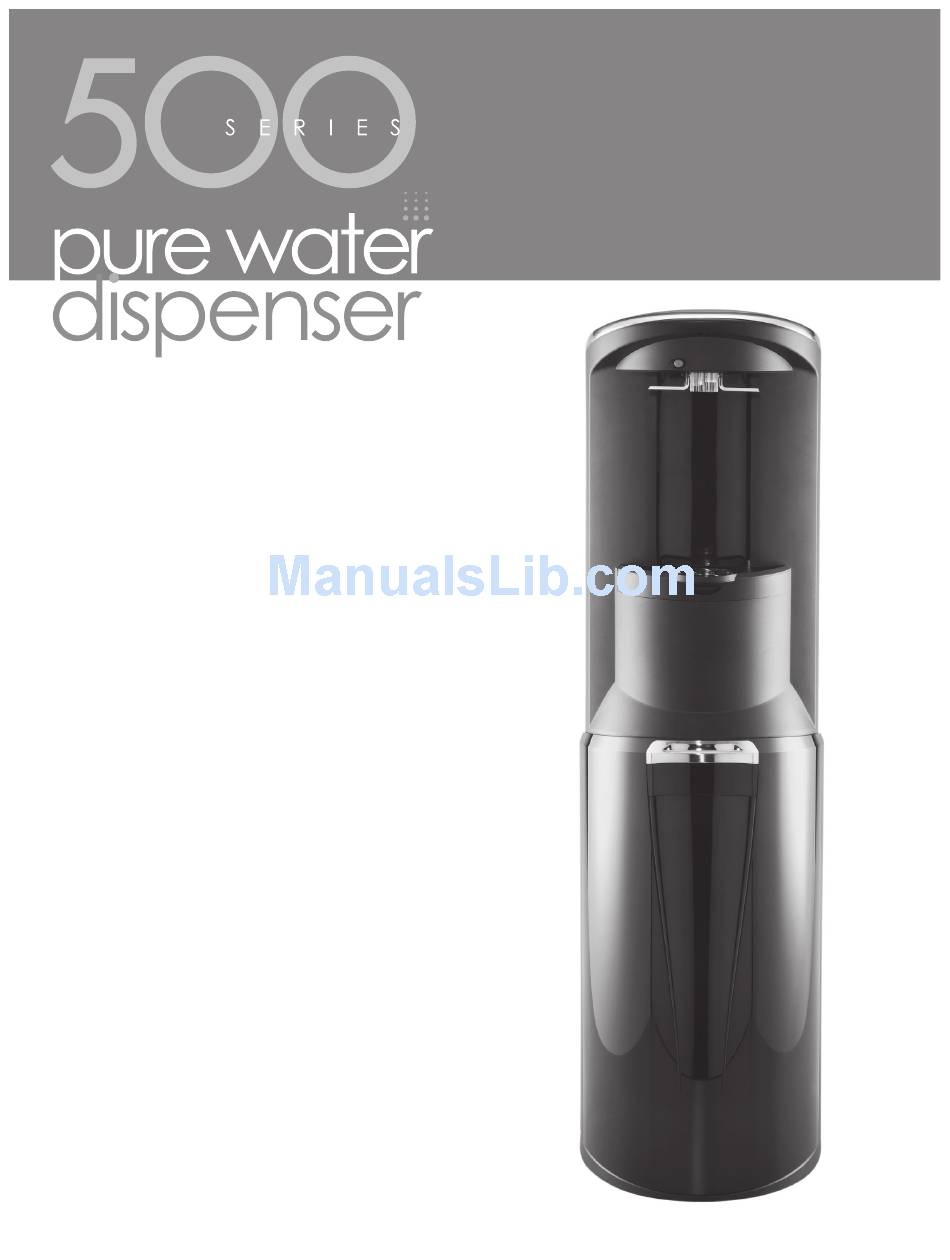

Water Dispenser Owner’s Manual – 500 Series IMPORTANT: This manual includes important safety material; please read all instructions before plugging power supply cord into receptacle.
STOP & READ DIRECTIONS before plugging in dispenser. Read complete HOW TO INSTALL instruction sequence before plugging in and turning on dispenser. Failure to follow proper installation instructions may cause damage to water dispenser. Lift dispenser THEN plug door. in dispenser. Load water bottle.
Page 3
CHILD SAFETY CAUTION: Supervise children when using the dispenser. The hot dispenser faucet is equipped with a child safeguard that reduces the risk of hot water being dispensed accidentally or by small children. To dispense hot water, simultaneously depress the child safety lock (located above the left hot faucet lever) and the left hot faucet lever.
Page 4
9. Remove bottle cap completely from the top of the bottle. 10. Unpackage the bottle adaptor from the bag inside the cabinet. Remove the protective cap from the SmartFlo™ Water System hose. Insert the hose into the bottle adaptor cap. Then insert the bottle adaptor tubing into the bottle adaptor cap. NOTE: Touching the bottle adaptor assembly pieces with bare hands could cause contamination.
Page 5
13. Slide bottle into cabinet and slide door downward to close. 14. Install drip tray. 15. Plug in dispenser and prime water system. Prime water system by first depressing the cold water lever for approximately 1 minute (or until water begins to flow from the faucet) and then depressing the hot water lever for approximately 1 minute (or until water begins to flow from the faucet).
REPLACING BOTTLE 1. Open cabinet door. 2. Place new bottle outside of cabinet. 3. Remove bottle from cabinet. 4. Remove cap from the new bottle. 5. Remove the bottle adaptor assembly from the empty bottle and place the bottle adaptor assembly into the new bottle. NOTE: Do NOT touch the bottle adaptor tubing.
CLEANING CABINET 1. Unplug dispenser from power outlet prior to cleaning cabinet. 2. All plastic parts can be cleaned using a cloth and warm, soapy water. Rinse with clean water. Never use scouring pads, steel wool or scouring powder. 3. Condenser tubes located on the back of dispenser should be vacuumed. CLEANING AND SANITIZING DISPENSER 1.
Page 8
WATER NOT HOT OR COLD ENOUGH • Check to make sure dispenser is plugged in and the hot tank heater switch is turned on. • A fuse may be blown or the circuit breaker may be tripped; if needed, replace fuse or reset breaker. •...
