The PS4350/R is an external Battery Charger for use with
Maxsys panels.
Make sure that you also follow the recommendations of
the battery manufacturer. Battery replacement should be
performed as per the recommendations of the battery
manufacturer, or every 5 years.
NOTE: To determine the battery size required, please
refer to the battery calculation chart provided with the
panel.
2.
Features and Specifications
Features
• Stand-by battery (not supplied)
• Automatic shutdown to prevent deep battery
discharge
• Self-resetting solid state over current protection
devices eliminate the need for replacement fuses
• Battery charging rate: 1.8A
Please refer to the System Installation Manual for information on limitations regarding product
use and function and information on the limitations as to liability of the manufacturer.
PS4350 External Battery Charger
Specifications
• Transformer supplied: 16V
• Output: 12V
• Dimensions:
145mm L × 83mm W × 56mm H over heat sinks
5.7" L × 3.3" W × 2.2" H over heat sinks
Installation Instructions
, 80VA
AC
, 1.8A
DC
Advertisement
Table of Contents
Summary of Contents for Maxsys PS4350
-
Page 1: Installation Instructions

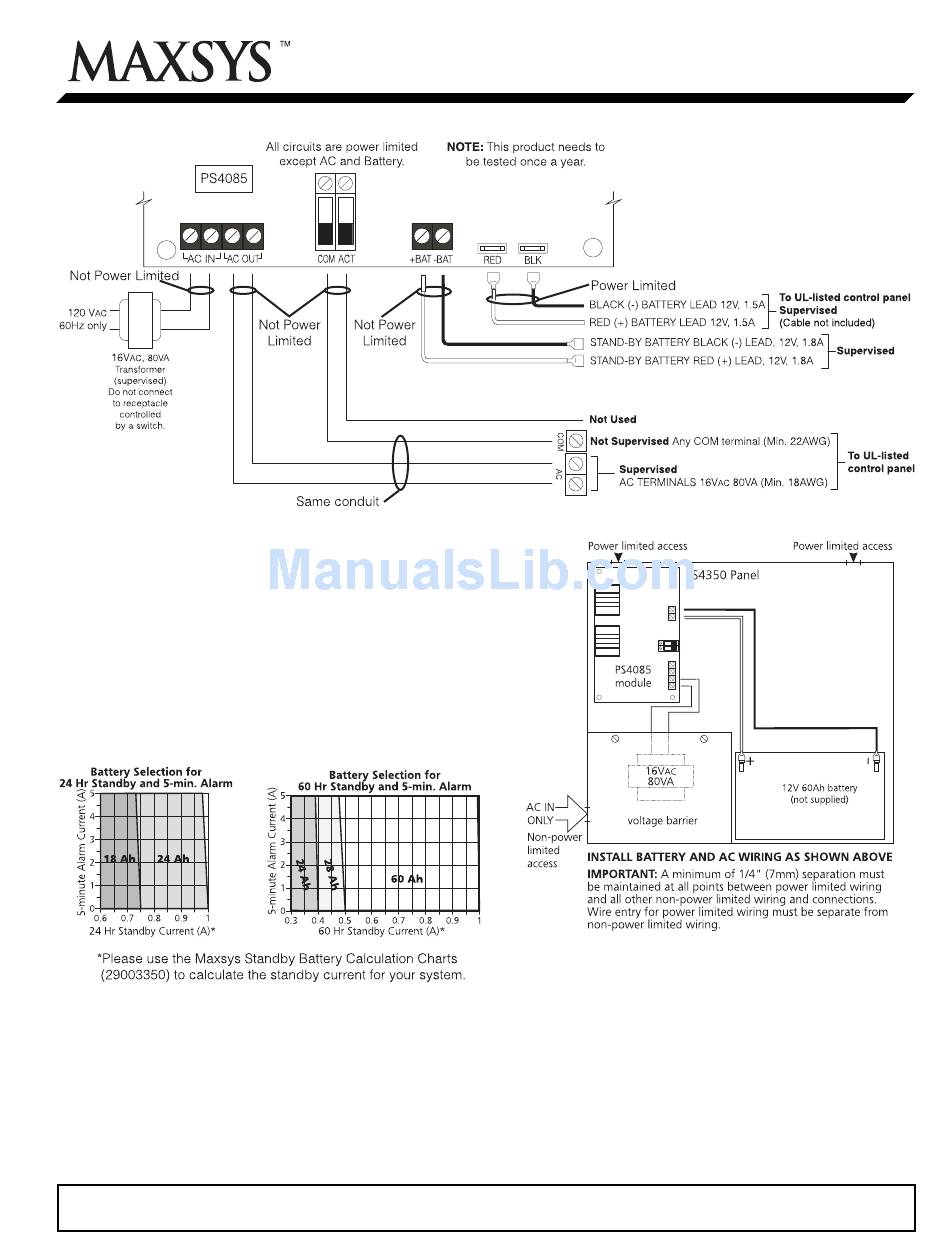

PS4350 External Battery Charger Installation Instructions Introduction The PS4350/R is an external Battery Charger for use with Maxsys panels. Make sure that you also follow the recommendations of the battery manufacturer. Battery replacement should be performed as per the recommendations of the battery manufacturer, or every 5 years. - Page 2 3.2 Mounting the Cabinet plywood sheet, as shown. When mounting the cabinet for the PS4350/R, select a dry 6. Press the PS4085 module onto the plastic stand-offs. location within 1m/3.3ft of the control panel. To mount the cabinet you will need: •...
