OWNER'S MANUAL —
Before installing and using the product, please read the instructions thoroughly and retain them for future reference.
MICROPHONE SWITCH
VOLUME DIAL
WHAT'S IN THE BOX:
• XG-947 Gaming Headset
• Xbox 360
adapter cable
®
• Owner's Manual
SPECIFICATIONS
Frequency response:
Driver size:
Impedance:
Cable length:
Max power:
Input type:
Volume control:
*
Optional headset adapter will be required for controllers without 3.5mm input.
CONTROL BOX FUNCTIONS
Volume dial
• To raise the volume, turn the volume dial towards the plus sign (+).
• To lower the volume, turn the volume dial towards the minus sign (-).
Microphone switch
• To use the microphone, slide the MIC switch towards "ON".
• To mute the microphone, slide the MIC switch towards "OFF".
HOW TO CONNECT YOUR XG-947 TO YOUR XBOX ONE
CONTROLLER WITH 3.5MM JACK
1. Turn down the volume on the XG-947 to the lowest level.
2. Place the headset on your head and adjust the headband until the
headset fits comfortably. Adjust the microphone to fit properly.
3. Insert the 3.5mm plug of the XG-947 into the bottom of the Xbox One
controller with 3.5mm jack.
4. Slowly raise the volume to a comfortable level.
5. Refer to the user guide of your Xbox One
headset to work with online play.
20 Hz – 20 kHz
40mm
32Ω±15%
Approx 1.2 m (4 ft.)
30mW
3.5mm audio
Yes
™
on how to set up the
™
HOW TO CONNECT YOUR XG-947 TO YOUR XBOX ONE
CONTROLLER USING THE MICROSOFT
ADAPTER (NOT INCLUDED)
1. Insert your Microsoft
®
Xbox One
controller.
™
NOTE: Please refer to the user guide of your Microsoft
Adapter for connection instructions.
2. Turn down the volume on the XG-947 to the lowest level.
3. Place the headset on your head and adjust the headband until the
headset fits comfortably. Adjust the microphone to fit properly.
4. Insert the 3.5mm plug of the XG-947 into the bottom of the Microsoft
Stereo Headset Adapter.
5. Slowly raise the volume to a comfortable level.
6. Refer to the user guide of your Xbox One
headset to work with online play.
HOW TO CONNECT YOUR XG-947 TO YOUR XBOX 360
1. Turn down the volume on the XG-947 to the lowest level.
2. Place the headset on your head and adjust the headband until the
headset fits comfortably. Adjust the microphone to fit properly.
3. Insert the 2.5mm end of the included Xbox 360
bottom of your Xbox 360
4. Insert the 3.5mm plug of the XG-947 into the other end of the Xbox
360
adapter cable.
®
5. Slowly raise the volume to a comfortable level.
6. Refer to the user guide of your Xbox 360
to work with online play.
HOW TO CONNECT YOUR XG-947 TO A SMARTPHONE OR TABLET
1. Turn down your audio device to the lowest level.
™
2. Place the headset on your head and adjust the headband until the
headset fits comfortably. Adjust the microphone to fit properly.
3. Insert the 3.5mm plug of the XG-947 into your smartphone or tablet.
4. Raise the audio to a comfortable volume on your device and then adjust
the volume on the XG-947 using the volume dial.

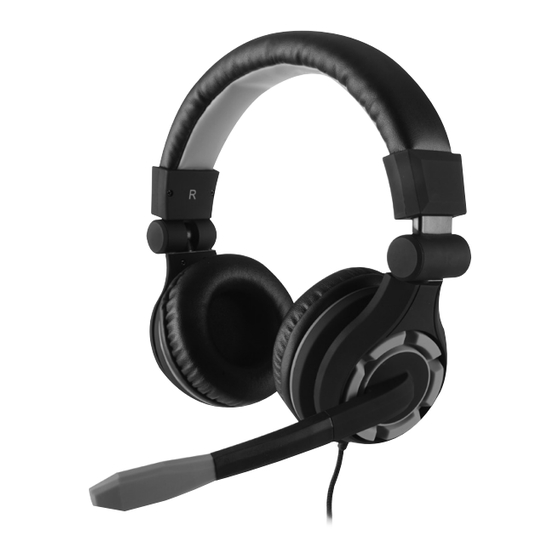

XG-947 GAMING HEADSET
STEREO HEADSET
®
Stereo Headset Adapter into the bottom of your
on how to set up the
™
adapter cable into the
®
controller.
®
on how to set up the headset
®
8049947
™
Stereo Headset
®
®
®
Advertisement
Summary of Contents for Xtreme Gaming XG-947
- Page 1 5. Slowly raise the volume to a comfortable level. 6. Refer to the user guide of your Xbox 360 on how to set up the headset ® HOW TO CONNECT YOUR XG-947 TO YOUR XBOX ONE ™ to work with online play. CONTROLLER WITH 3.5MM JACK 1. Turn down the volume on the XG-947 to the lowest level. 2. Place the headset on your head and adjust the headband until the HOW TO CONNECT YOUR XG-947 TO A SMARTPHONE OR TABLET headset fits comfortably. Adjust the microphone to fit properly. 1. Turn down your audio device to the lowest level. 3. Insert the 3.5mm plug of the XG-947 into the bottom of the Xbox One ™ 2. Place the headset on your head and adjust the headband until the controller with 3.5mm jack. headset fits comfortably. Adjust the microphone to fit properly. 4. Slowly raise the volume to a comfortable level. 3. Insert the 3.5mm plug of the XG-947 into your smartphone or tablet.
- Page 2 NOTES: • The volume dial only controls the volume of the headset. Console and device volume should be adjusted separately. • Make sure that the XG-947 is worn properly at all times. Do not place the headset around the back of your head; it must be worn over the top of your head. Make sure you allow the microphone to be positioned as close to your mouth as possible for best voice results. • When the microphone is switched to “OFF”, other players cannot hear your conversation, but you will still be able to hear them speaking. FOLDING YOUR XG-947 GAMING HEADSET IMPORTANT SAFETY PRECAUTIONS • Do not listen at a high volume level. Extended high volume levels can lead to permanent hearing loss. • Start with seing the volume level at the lowest volume and adjust until you reach a comfortable volume level. • Do not use while sleeping, as accidents may occur. • If you experience any ringing in your ears, try lowering the volume. If the ringing persists, visit your physician.
