HD Electric CDM-50 Operating And Instruction Manual

Troubleshooting

The following is a list of actions to be taken if the
unit is not working properly:
Screen is blank
Check to make sure the battery is inserted correctly.
Open battery door on the bottom rear of the unit.
The battery is inserted with the terminals on the
inside. The + and - symbols on the battery should
match the corresponding + and - symbols on the
inside of the battery compartment.
Unit does not measure all wires
Ensure that horizontal distances between wires are
within the sonic beam, as shown in the Performance
section of this manual.
Incorrect readings
Ensure the Calibrate mode switch is in correct
position, i.e. CABLE for cable height measurement,
and WALL for horizontal distance to object
measurement. Ensure no walls or similar
obstructions are within 7 feet (2m) of either side of
the unit, as reflections from these can interfere with
correct operation.

Warranty

Each unit is guaranteed against malfunction caused
by faulty components or manufacture for a period of
12 months from the date of purchase (excluding
battery). At HD Electric Company's sole discretion, it
will be decided either to repair, modify or replace the
unit. Should the Cable Distance Meter develop a
problem, contact HD Electric Company. For further
information, contact:
HD Electric Company
1475 Lakeside Drive
Waukegan, IL 60085 USA
Phone: 847-473-4980
Fax: 847-473-4981
Web: www.HDElectricCompany.com
*

SPECIFICATIONS

Model
CDM-50
1 inch (25mm) Cable Diameter 10' - 50'
(3m – 15m)
0.5 inch (12mm) Cable Diameter 10' - 50'
(3m – 15m)
0.25 inch (5.5mm) Cable Diameter 10' - 40'
(3m – 12m)
0.125 inch (2.5mm) Cable Diameter 10' - 33'
(3m – 10m)
No. of wires measured 6
Accuracy 0.5% ± 2 digits
Resolution (less than 33') 0.25" (5mm)
Resolution (more than 33') 0.5" (10mm)
Minimum gap between wires
Operating Temp. Range 14° F to 104° F (-10° C to 40° C)
Battery Life 50,000 measurements (Long Life
Alkaline type)
Measurement units Imperial (feet/inches) or metric
Auto power off delay
Dimensions 8.5" x 4" x 3"
(205mm x 100mm x 70mm)
Weight 1.1 lb. (0.5kg)
* Based on ambient temperature of 68° F (20° C)

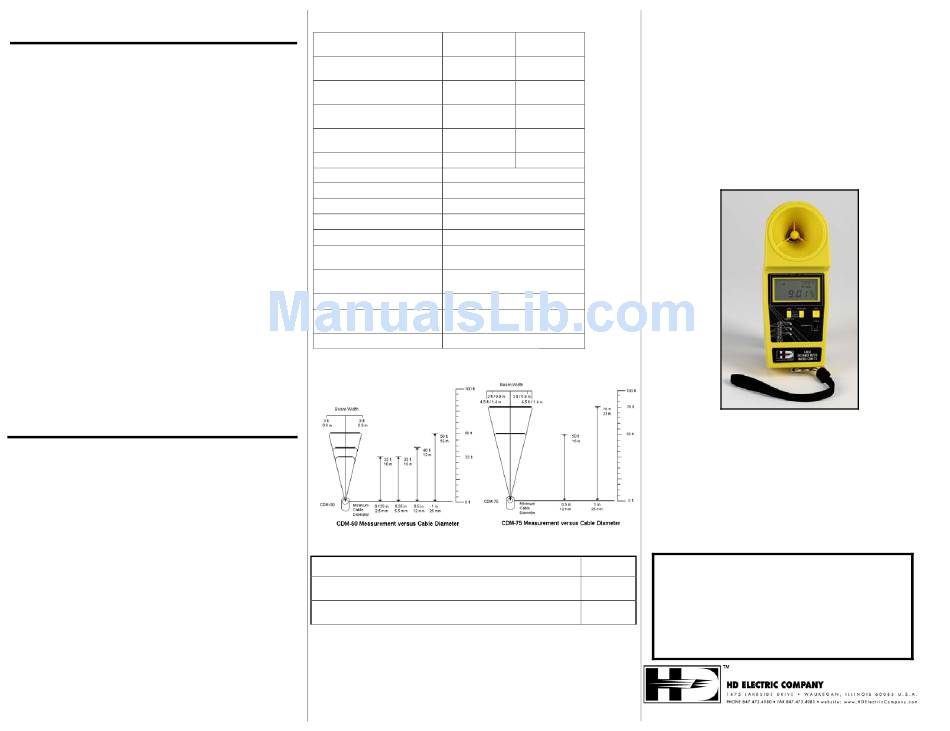

PERFORMANCE
ORDERING INFORMATION
Item
Cable Distance Meter, take measurements for 6 wires up to a distance of 50
feet (15m), includes carrying bag
Cable Distance Meter, take measurements for 6 wires up to a distance of 75
feet (23m), includes carrying bag
HD Electric Company is committed to ongoing review and improvement of its
product lines, and thus reserves the right to modify product design and
specifications without notice.
HD Electric Company products are available through HD sales representatives
worldwide.
Printed in U.S.A. © HD Electric Company 2004
Model
CDM-75
10' - 75'
(3m – 23m)
10' - 50'
(3m – 15m)
N/A
N/A
6
6" (150mm)
(meters)
3 minutes
Operating and
Order No.
CDM-50
CDM-75
Bulletin No. CDMInstMan-100
CABLE
DISTANCE
METER
Instruction
Manual
Models
CDM-50
CDM-75
