Hiker H-901 Instructions

STEP-BY-STEP ADJUSTMENTS & TIPS
Turning the dial counter clockwise will lower the bottom die for a larger gap and
turning the dial clockwise will raise the bottom die for less gap. Having the gap
too tight to begin with can cause problems, so it is always better to start with a
little extra gap.
3) Once you've adjusted the gap to approximately the thickness of the material,
insert a grommet into a sample resembling the intended application.
grommet goes on the top die with the barrel side pointing down, and the washer
goes on the bottom die with the curved side down.
4) Grommets with flat washers: After you've inserted a grommet, check to see if
the grommet spins in its hole. If so, turn the dial that is at the base of the bottom
die ½ turn clockwise, put the loose grommet you just inserted back on the die in
the correct direction and press the grommet again. This will close the grommet
further. Check the grommet again to see if it still spins in the material. Repeat
this process until the grommet has a tight fit and does not spin.
On harder material, such as SINTRA®, adjust bottom die for minimal
impressions on material. Note: The grommet only needs to curl over enough to
grab the washer.
Rolled-rim grommets with spur washers: Make sure the grommet and washer
are tight together with little to no space between grommet, material and washer.
5) Once you have adjusted the die to produce a perfect insertion in the desired
material thickness, tighten the wing-nut on the screw that goes into the bottom
die (under the base). This will hold the die and your setting firmly in place.
Once familiar with how to change the die setting on the HIKER H-901 hand
press, inserting grommets in varying material thicknesses will be a quick and
easy process that will produce quality results. Thank you for choosing HIKER.

ADDITIONAL GROMMETING PRESSES

H-307AS
Semi-Auto
Only $2995!
- Electric
- Feeds Grommet
- Manual Washer Loader
- Optional Laser Pointer
For more information, contact
your dealer or HIKER.
© HIKER USA, INC. 2004-2005
The
Available Sizes of
Self-Piercing Grommets
with Flat Washers:
#0 - 1/4" id
#1 - 5/16" id
#2 - 3/8" id
#3 - 7/16" id
#4 - 1/2" id
#5 - 5/8" id
All available in
Brass, Nickel or Black.
H I K E R
Grommets • Eyelets • Dual Feed Presses • Single Feed Presses • Manual Presses

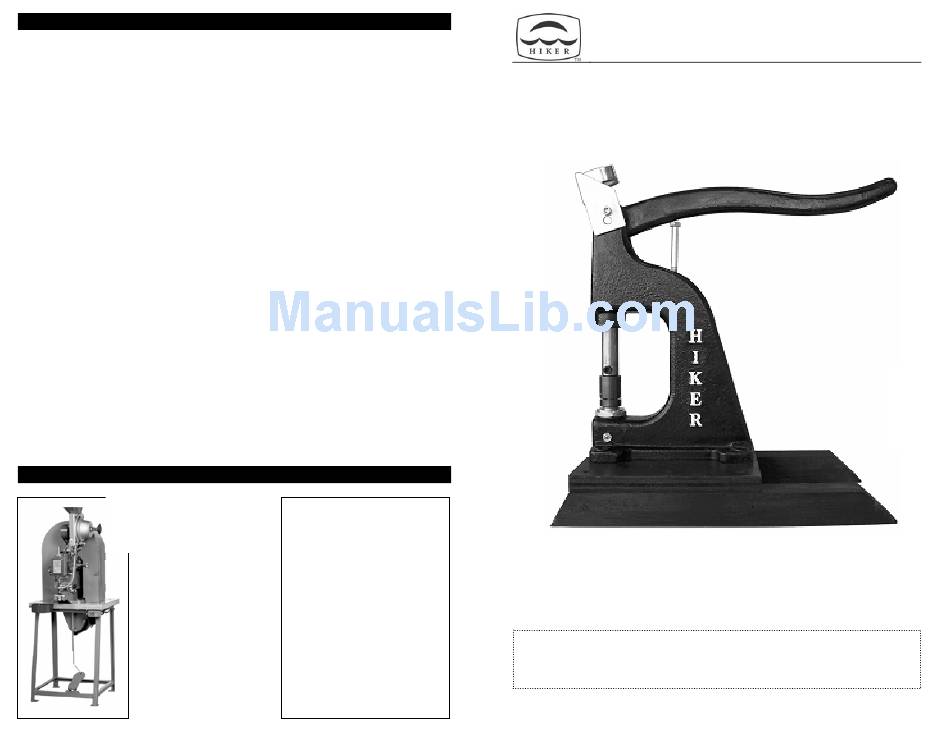

INSTRUCTIONS

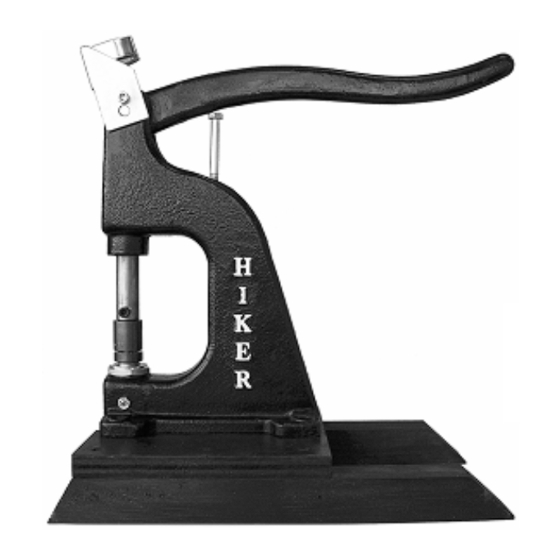

H-901
GROMMETING HAND PRESS
CAUTION: Die settings that are too tight can damage or break the hand press.
Read instructions carefully and adjust lower die to proper setting before using.
H901INS Rev. 11 1/05
