FREEDOM
AXIS
PRODUCT MANUAL
MTI P/N 063-1155-00 Rev B
Release Date: January 2013
©2008 MTI. All Rights Reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Freedom Axis and is the answer not in the manual?

Questions and answers

Summary of Contents for MTI Freedom Axis

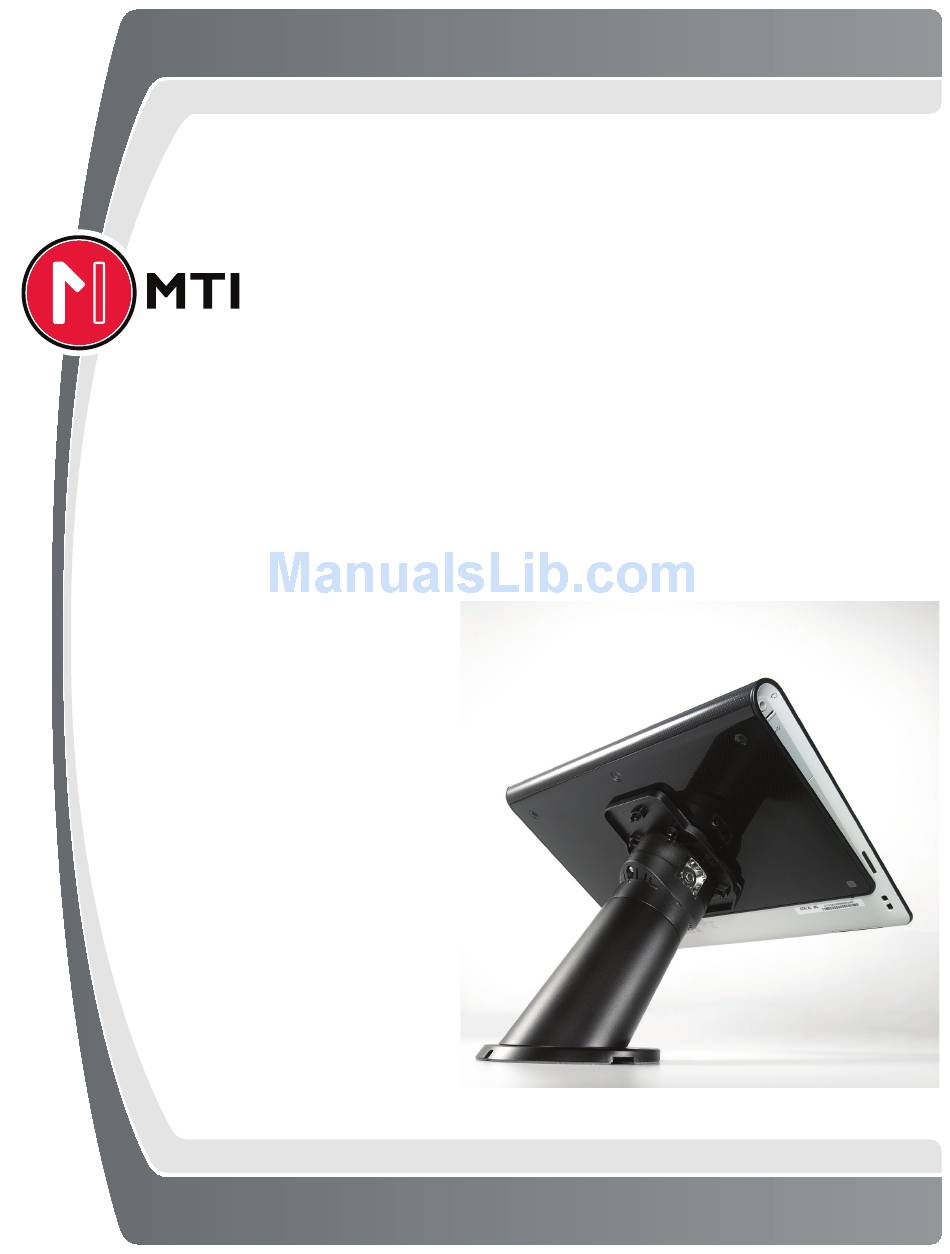

  • Page 1 FREEDOM AXIS ™ ™ PRODUCT MANUAL MTI P/N 063-1155-00 Rev B Release Date: January 2013 ©2008 MTI. All Rights Reserved.
  • Page 2: Table Of Contents

    FREEDOM UNIVERSAL 2.0 FREEDOM AXIS CONTENTS Overview ���������������������������������������������������������������������������������������������������������3 System Components & Features ������������������������������������������������������������������������������������3 Puck & Mounting Saddle Details �����������������������������������������������������������������������������������4 Base Options & Dimensions ������������������������������������������������������������������������������������������5 Installation & Setup �����������������������������������������������������������������������������������������5 Installing the Lock �������������������������������������������������������������������������������������������������������5 Installing System Components ��������������������������������������������������������������������������������������6 Mounting Products ������������������������������������������������������������������������������������������������������8 Removing Device from Saddle ��������������������������������������������������������������������������������������9 Removing Base from Fixture ���������������������������������������������������������������������������������������10...
  • Page 3: Overview

    (up to 21 volts), and full 360-degree spinning interaction. Because of its robust mechanical security, Freedom Axis is the perfect solution for high-risk areas. The basic system is comprised of an external power supply, a base with rotating puck, and a mounting saddle. The mounting saddle attaches to the tablet using a large VHB™...
  • Page 4: Puck & Mounting Saddle Details

    FREEDOM UNIVERSAL 2.0 FREEDOM AXIS Puck & Mounting Saddle Details Mounting saddle Saddle Details (see detailed view at right) Mounting bracket (optional) Lock Two brackets fit around device to provide additional mechanical Puck security (see details below) VHB adhesive pad...
  • Page 5: Base Options & Dimensions

    FREEDOM UNIVERSAL 2.0 FREEDOM AXIS Base Options & Dimensions Freedom Axis offers three base options – a surface-mount riser, a through-hole riser, and through-hole mount. Both risers present the mounted device at a 35-degree angle. Surface-mount riser Through-hole riser Through-hole mount...
  • Page 6: Installing System Components

    FREEDOM UNIVERSAL 2.0 FREEDOM AXIS Installing System Components Before you begin: Review mounting recommendations and the installation steps below to help determine the desired mounting location of all components.. Install components so the mounted device(s) will be able to fully rotate without interfering with the fixture, walls, or Angled risers should be mounted on a other positions.
  • Page 7 Plug the external power supply into an AC power then connect the power supply cable to the power source, preferably a surge-protected power strip in input cable wrapping the locking strap around the the display cabinet. connector. Freedom Axis Base AC Power Source Power input Cable Locking strap...
  • Page 8: Mounting Products

    FREEDOM UNIVERSAL 2.0 FREEDOM AXIS Mounting Products Before you begin: Review all mounting steps first to help determine Insert key into lock, then rotate counterclockwise until your the desired mounting location and orientation. Device must be hear a “click” indicating the lock is open. Remove the key mounted so it does not interfere with the fixture, walls, or other and then remove the saddle.
  • Page 9: Removing Device From Saddle

    FREEDOM UNIVERSAL 2.0 FREEDOM AXIS Removing Device from Saddle Disconnect SmartCable (if present) from If there is an optional mounting Place removal fixture over the edge of mounted device. Insert key into lock, then bracket attached, use the security the counter.
  • Page 10: Removing Base From Fixture

    FREEDOM UNIVERSAL 2.0 FREEDOM AXIS Removing Base from Fixture If a base was mounted using VHB adhesive, use the following procedure to remove the base from the fixture: Turn off the system power and disconnect the power supply cable from the base.
  • Page 11: Operation

    FREEDOM UNIVERSAL 2.0 FREEDOM AXIS OPERATION Basic Operation & Use Once the system is installed, simply turn on the system power and activate power to the secured device. Customers can now rotate and demo the device in different orientations, while the system keeps the device fully powered and secure.
  • Page 12: Maintenance

    TROUBLESHOOTING All MTI products are designed and manufactured to provide consistent, trouble-free service. If the display has a problem, refer to the troubleshooting table below. If the problem persists, contact MTI Customer Service at 1.800.426.6844 (toll-free) or 503.648.6500 (international), from 7AM - 5PM Pacific Time, Monday through Friday.
  • Page 13: Limited Warranty

    (6) months after date of shipment. This warranty shall not apply if buyer fails to notify MTI of such defect within ten (10) days after discovery, or if battery has been subjected to misuse, negligence or accident.
