4 Attaching the Drum Module
[1] Attach the Metal Rod to the Drum Module.
[2] Tighten the wing screw securely on the Drum Module.
[3] Attach the Metal Rod to the Holder clamp on the
Side Arm (L1) and adjust the position.
[4] Tighten the wind nut on the Holder clamp.
5 Attaching the Kick Trigger
[1] Attach the Rod to the holders.
[2] Attach the Kick Pedal to the Kick Pad.
[3] Tighten the wing screw on the Kick Pedal.
[4] Loosen the screw.
[5] Attach the Beater to the Kick Pedal
[6] Position the Beater from the center of the pedal, tighten the screw
[1]
[1]
[4]

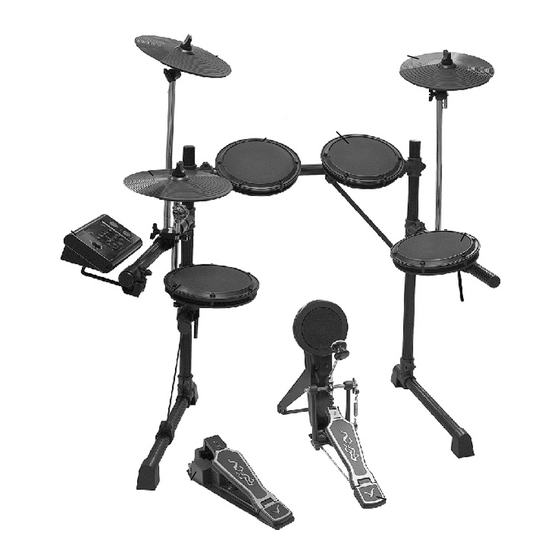

6 Setup Example
Cymbal Pad
Drum Pad
Cymbal Pad
Drum Module
Drum Pad
Hi-Hat control pedal
Wing screw
[2]
Metal Rod
[3],[4]
[1]
[3]
[2]
Beater
[5]
[9]
Drum Pad
Kick Trigger
Watch your fingers when adjusting clamps. They may become pinched resulting in injury.
Be careful around pipe ends, inside the pipe and screw ends. Metal shavings, etc. May injure your fingers.
Inside This Package
Before assembly, please make sure that all the items listed below are present.
[CYMBAL 3PCS] box
Cymbal Pad x 3
[DRUM PADS] box
Drum Pad x 2
Metal Rod x 2
[ACCESSORIES] box
Cymbal holder (L) x 2
[6]
Cymbal holder (S)
Hexagon Key (5mm)
Drum Key
Side Arm (L1)
Cymbal holder clamp
Holder clamp
Pillar (L)
Clamp
Leg (L)
Clamp
Cross pipe
Connector
DD505 V003
Rubber Foots
ASSEMBLY INSTRUCTIONS
Caution !
[BASS DRUM PEDAL] box
[DRUM PADS] box
Drum Pad x 2
Metal Rod x 2
[HI-HAT PEDAL] box
Drumstick x 2
Connecting Cable x 9
Metal Rod
[DRUM MODULE] box
AC Adaptor
Instruction Manual
Assembly Instructions
Side Arm (L2)
Side Arm (R)
Holder clamp
Cymbal holder clamp
Pillar (R)
Connector
Connector
Leg (R)
Center Pipe
Clamp
Rubber Foots
Kick Pad
Foot Pedal
Beater
Hi-Hat control pedal
Drum module
Holder clamp
Cross pipe
Clamp
Connector
Holder clamp
Advertisement
Related Manuals for Kirstein DD505
Summary of Contents for Kirstein DD505

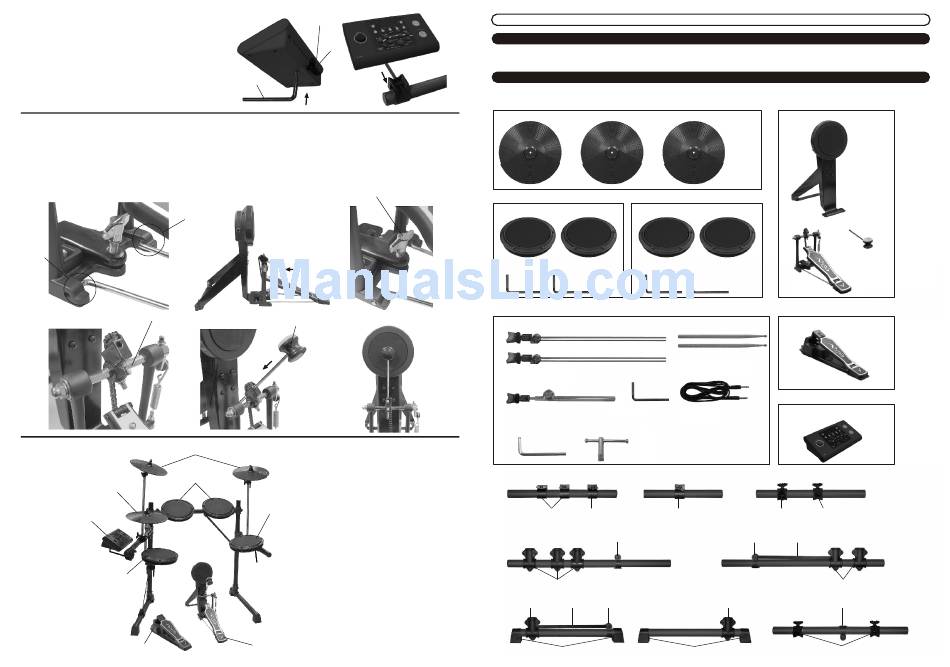

- Page 1 Holder clamp Drum Module Pillar (L) Pillar (R) Connector Connector Cross pipe Drum Pad Clamp Clamp Leg (L) Leg (R) Center Pipe Clamp Cross pipe Connector Clamp Connector Hi-Hat control pedal Kick Trigger DD505 V003 Rubber Foots Rubber Foots Holder clamp...
