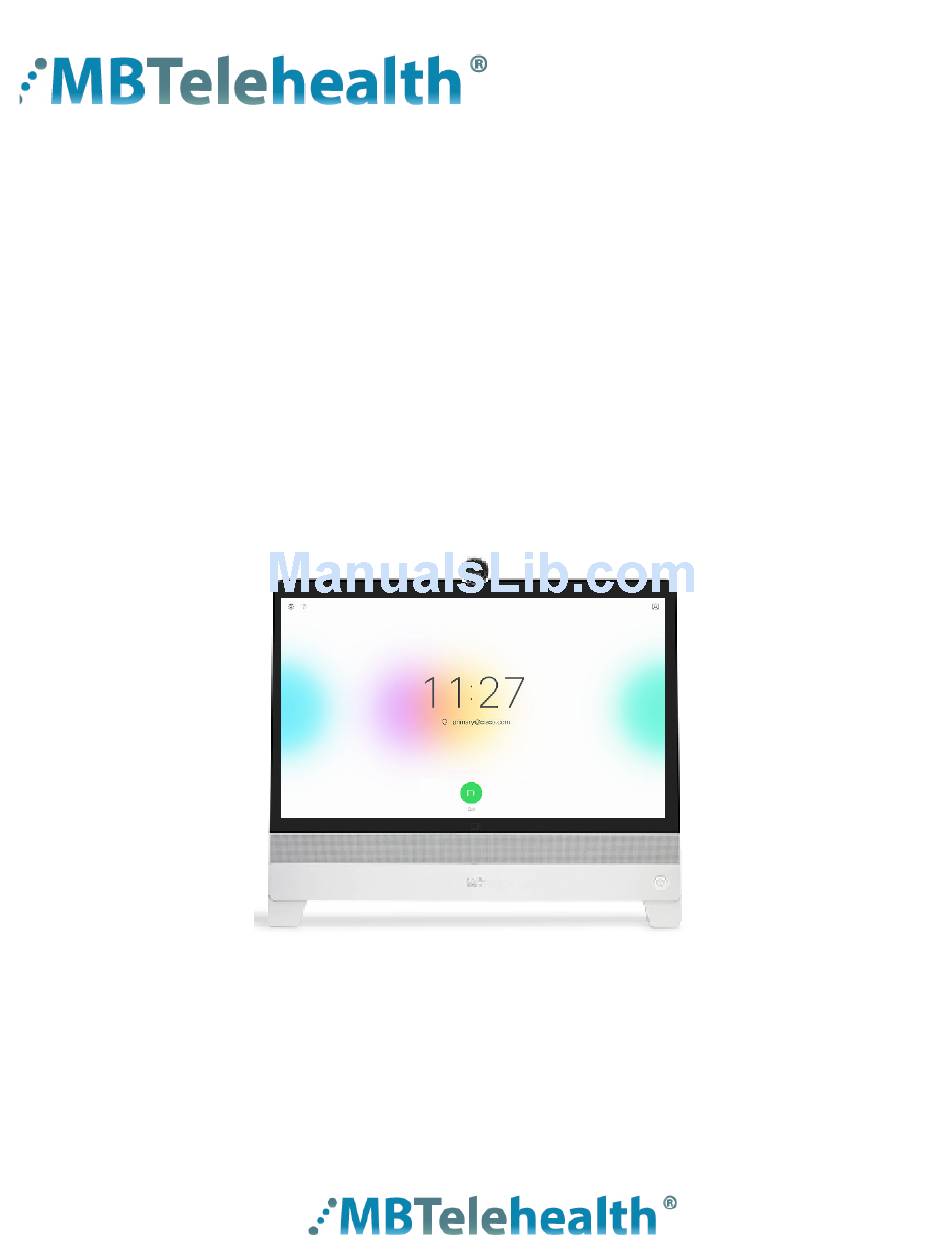

- Page 1 MBTelehealth - DX80 Touchscreen User Guide DX80 Touchscreen User Guide 07Mar2018 Page 1 of 16...
-
Page 2: Table Of Contents
MBTelehealth - DX80 Touchscreen User Guide Table of Contents Table of Contents GENERAL USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Site to Site Calls . - Page 3 Main Components of the DX80 The monitor of the DX80 is an all-in-one touchscreen unit and does not require a remote control . This unit is available in the following configurations as shown on the next page: desktop unit, mobile unit, and fixed unit (mounted to the wall) .
- Page 4 MBTelehealth - DX80 Touchscreen User Guide DX80 Configuration Options This unit is available in the configurations shown below: desktop unit, mobile unit, fixed unit/mounted to the wall . Desktop Mobile Fixed/wall mounted The monitor height can be adjusted Page 4 of 16...
-
Page 5: General Use
MBTelehealth - DX80 Touchscreen User Guide GENERAL USE The following sections will provide instructions for using your DX80 Touchscreen solution to place and receive videoconference calls . Selfview Before the meeting starts we recommend that you check the selfview . Selfview shows what others see from your video system. -
Page 6: Site To Site Calls
MBTelehealth - DX80 Touchscreen User Guide Site to Site Calls Connecting to an MBT Site Connect to an MBT Site Locate the 5 digit number on the Whiteboard, Confirmation or Clinic List (beside the VCU#). 5 digit number To switch between PC monitor and video screen - tap the screen . -
Page 7: Connecting To A Site Outside The Mbt Network
+/- . (Note: This only applies Camera . if the other site has a remotely controllable camera - unlike the DX80 which has a fixed camera.) Tap anywhere outside the camera control buttons when you’re done to return to near... -
Page 8: Sharing Presentation: Site To Site
MBTelehealth - DX80 Touchscreen User Guide Sharing Presentation: Site to Site Share Presentation: Site to Site Connect your source and make sure it is turned on . Tap Stop sharing to stop Tap Share and the content Tap Show PC will be shared with the other sharing your presentation . -
Page 9: Recent Calls And Favourites
MBTelehealth - DX80 Touchscreen User Guide Screen Layout: Presentation Options Site to Site Layout • Minimize - allows you to view the speaker full screen and puts the presentation over on the left hand side . • Maximize - allows you to restore the presentation and toggle between the presenter and presentation in case the presenter is speaking between slides . -
Page 10: Multi-Site Event Calls (Mcu)
Connect to an MCU Call • If you are participating in a multi-site event (3 or more participating sites) you will by the MBTelehealth service desk at the scheduled start time . automatically connected • Do not attempt to connect to another location . -
Page 11: Screen Layout/Far End: No Presentation - Multi-Site
MBTelehealth - DX80 Touchscreen User Guide Screen Layout/Far End: No Presentation - Multi-Site Screen Layout: No Presentation Multi Site During Multi Site calls, you can control how the other sites are displayed on your screen . Use the Up/Down arrows to scroll Tap the participant icon . -
Page 12: Screen Layout: Presentation - Multi Site
MBTelehealth - DX80 Touchscreen User Guide Screen Layout: Presentation - Multi Site Screen Layout: Presentation - Multi Site Tap Layout to change the Tap the preferred layout (see options below) . layout . Tap anywhere outside the menu when done . -
Page 13: Receiving And Ending Video Calls
. Your Cisco DX80 may be configured to automatically accept all incoming connection requests, then both site to site connections initiated by another site and multi-site connections would be automatically connected . -
Page 14: Dual Video Enabled Equipment
MBTelehealth - DX80 Touchscreen User Guide DUAL VIDEO ENABLED EQUIPMENT Dual Video Enabled Equipment Note: This information is only applicable for point to point calls when both units are using dual video enabled equipment. The equipment listed below supports dual video which allows users to display and view two different live video feeds simultaneously . -
Page 15: Troubleshooting
MBTelehealth - DX80 Touchscreen User Guide TROUBLESHOOTING Audio Issues Issue Possible Cause Resolution Far end site unable to hear you • Your microphone is muted • Un-mute your microphone Unable to hear far end site • Microphone is muted at far end site •... -
Page 16: Additional Training Information
MBTelehealth - DX80 Touchscreen User Guide ADDITIONAL TRAINING INFORMATION For additional information on videoconference equipment visit www.mbtelehealth.ca or contact your Facilitator-eHealth Solutions . VIDEOCONFERENCING ETIQUETTE The following tips on videoconferencing etiquette will help prepare you for a successful session: 9 Assume that people can see and hear you as the camera and microphone are always “Live” .
