Summary of Contents for RELM KAA0303-1

  • Page 2: Table Of Contents

    Contents Items Supplied ................1 General ....................2 Operational Safety Guidelines ............2 Controls and Indicators ..............3 Operating Instructions ..............5 Compatible RELM Batteries ............8...

  • Page 4: Items Supplied

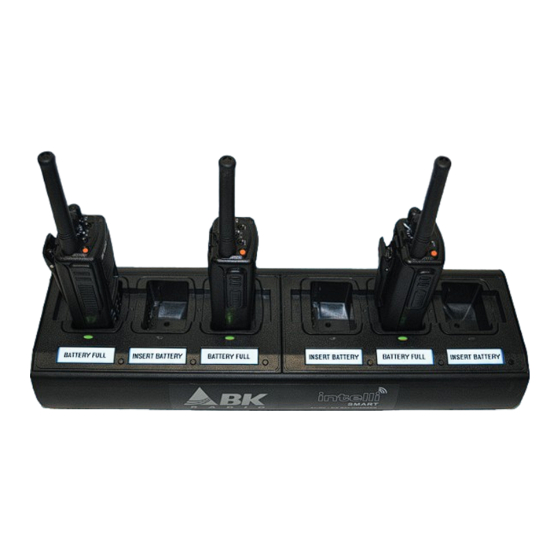

    Intelli Charger User’s Manual Items Supplied KAA0303-1: • Single Well Charger • DC Wall Adaptor • User's Manual KAA0303-6: • Six Well Charger • AC Cord • User's Manual - 1 -...

  • Page 5: General

    RELM Wireless Corporation General The Intelli Battery Charger is a multi-function intelligent battery charging system. It is a rapid charger that includes a built-in, backlit, two line LCD display that provides the battery’s charge or life condition information. The charger has adaptive reconditioning capability which optimizes the cycle life of the battery to maximize talk time.

  • Page 6: Controls And Indicators

    Intelli Charger User’s Manual Controls and Indicators Mode Buttons: • The KAA0303-1 is fitted with two mode buttons; one is labeled "Info" and the other is labeled "CHG/COND". With a smart battery inserted, pressing the "Info" button will display the battery information, and pressing the "CHG/COND" button will toggle the charger between charge and discharge modes.

  • Page 7: Led Indicator

    RELM Wireless Corporation LED Indicator: LED Indicator Color Mode BATTERY CHARGING BATTERY FULLY CHARGED BATTERY DISCHARGING WHEN FLASHING, THE BATTERY TEMPERATURE HAS INCREASED ABOVE 55° AND CHARGING HAS BEEN HALTED. Fan Operation: The built in fan only operates when the battery is charging or discharging.

  • Page 8: Operating Instructions

    Intelli Charger User’s Manual Operating Instructions Set-up KAA0303-1: Plug the AC wall adapter into the wall outlet. Connect the DC output plug to the DC input socket of the charger. Set-up KAA0303-6: Connect the charger receptacle side of the AC power cord into the charger.

  • Page 9: Charging Procedure

    RELM Wireless Corporation Charging Procedure: Intelli (smart) Batteries: With no battery inserted, the Status LED is off and the LCD display will show "INSERT [ Intelligent Battery ] ˅ BATTERY". [ Battery Model ] ˅ Carefully insert the battery with the [ Battery Chemistry ] alignment tabs of the well. The Status LED ˅...
  • Page 10 Intelli Charger User’s Manual Non-Smart Batteries: With no battery inserted, the Status LED is off and the LCD display will show "INSERT BATTERY". Carefully insert the battery with the alignment tabs of the well. The Status [ Charge Current ] LED will light red and the LCD display ˅ will show "READING DATA". [ Current Voltage ] ˅...

  • Page 11: Compatible Relm Batteries

    RELM Wireless Corporation Compatible RELM Batteries Compatible RELM Batteries Model Chemistry Capacity Type KAA0103 Li-Ion 2300 mAH Intelli (Smart) KAA0100 Li-Ion 2270 mAH Standard Li-Ion 3600 mAH Standard KAA0101 Li-Ion (Intrinsically Safe) 2300 mAH Standard KAA0100IS KAA0101IS Li-Ion (Intrinsically Safe)
