Summary of Contents for Ryval Hoops C872 Series

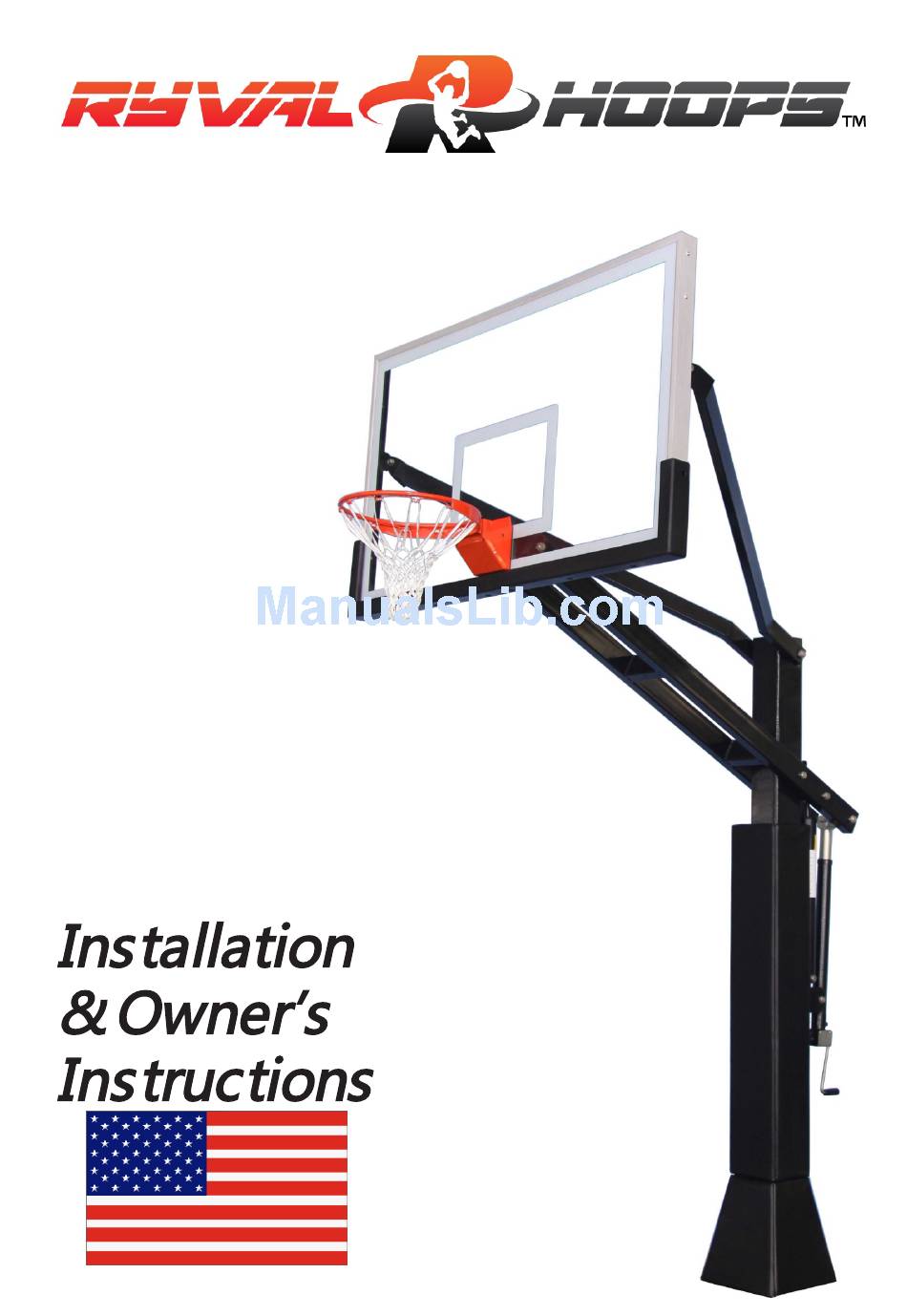

- Page 1 C872 Series ADJUSTABLE HEIGHT GOAL SYSTEM...
- Page 2 Thank you and congratulations for purchasing a Ryval Hoops Goal - the finest basketball goal system on the market today! You will discover that Ryval Hoops is unsurpassed in product innovation, quality and integrity in the basketball equipment industry. We are focused on designing, engineering and products that meet and exceed expectations of today’s toughest playing environments and demanding players.
- Page 3 Consult Ryval Hoops if you do not W W W. RY VA L H O O P S. C O M 1 - 8 0 0 - 7 8 7 - 0 6 5 5...
- Page 4 NOTE: At rim height 10 foot, distance from the face of backboard to the front of Main Post (A) is 48". Use these specs to calculate desired backboard overhang of driveway/court. 21" STEP A a. Dig a hole 48" deep and 21"x 21"square . The edge of the hole should be flush with the edge of the playing surface.
- Page 5 STEP B A. Thread a 16mm Hex Nut (U4) onto each of the 16mm J-Bolts (U2).Securely tighten the Nuts all the way down to the end of the threads. B. Slide the threaded end of the J-Bolts through the holes in the Anchor Template (U1) and secure each J-Bolt with a 16mm J-Bolt Hex Nuts(U4) as shown.
- Page 6 STEP D a. Position the J-Bolt Template (U1) over the hole so that it is centered, with the sides of the plate square with the sides of the hole. b.Push the J-Bolts (U2) into the concrete until the J-Bolt Template is resting flat against the surface of the concrete.
-
Page 7: Parts List
PARTS LIST 13 10 10 13 PARTS LIST ITEM QTY DESCRIPTION 6"x6"Main Post Actuator Spring-Assist Cartridge 17 14 Pole padding HARDWARE LIST Gusset Padding Main Extension Arm ITEM QTY DESCRIPTION Upper Extension Arm Nylon Washer M18 Backboard Nylon Washer M16 Safety rod 20mmdia Nylon Washer M12 Sleeve for Spring Cartridge... - Page 8 WARNING *BECAUSE OF THE SIZE AND WEIGHT OF THE SYSTEM, A MINIMUM OF THREE ADULTS ARE REQUIRED FOR THE FOLLOWING STEPS* STEP1 Slide a 16mm Thick Washer (U3) over each of the J-Bolts (U2) as shown in FIGURE 1A. Remove the Padding from Main Post (A). Place the Main Post (A) over the J-Bolts. Slide a 16mm Thick Washer (U3), a Lock washer 16mm (U6) and thread a 16mm Hex Nut (U4) to each J-bolt.
- Page 9 STEP 3 A. Slide the Actuator(B) to the last set of welded tubes on the Main Extension Arm (F), Using a Hex bolt M18X320MM (#5), two M18 Flat Washers((#11), one Lock Washer (#14) and a Hex Nut M18(#17) at the top. And using a Hex Bolt M16x135mm (#9), two Washers for M16 Bolt (#12), two Nylon washers (#2), and one Hex nut for M16 bolt (#18) on bottom to tight...
- Page 10 STEP 6 Attach the Backboard to Main Extension Arm(F) 13 10 by using a Hex Bolt m16x320mm (#7), two M16 Flat Washers(#12), two Nylon washers (#2), one Lock washer M16 (#15), and one Hex nut M16 (#18). Note: Nylon washers go between Main extension arm Bracket (F) and Backboard mounting bracket.
- Page 11 This warranty is exclusive and expressly in lieu of all other warranties, expressed or implied, including warranties of merchantability or fitness for use. Ryval Hoops does not assume, or authorize any person to assume for us, any other liability in connection with the sale of our products.
