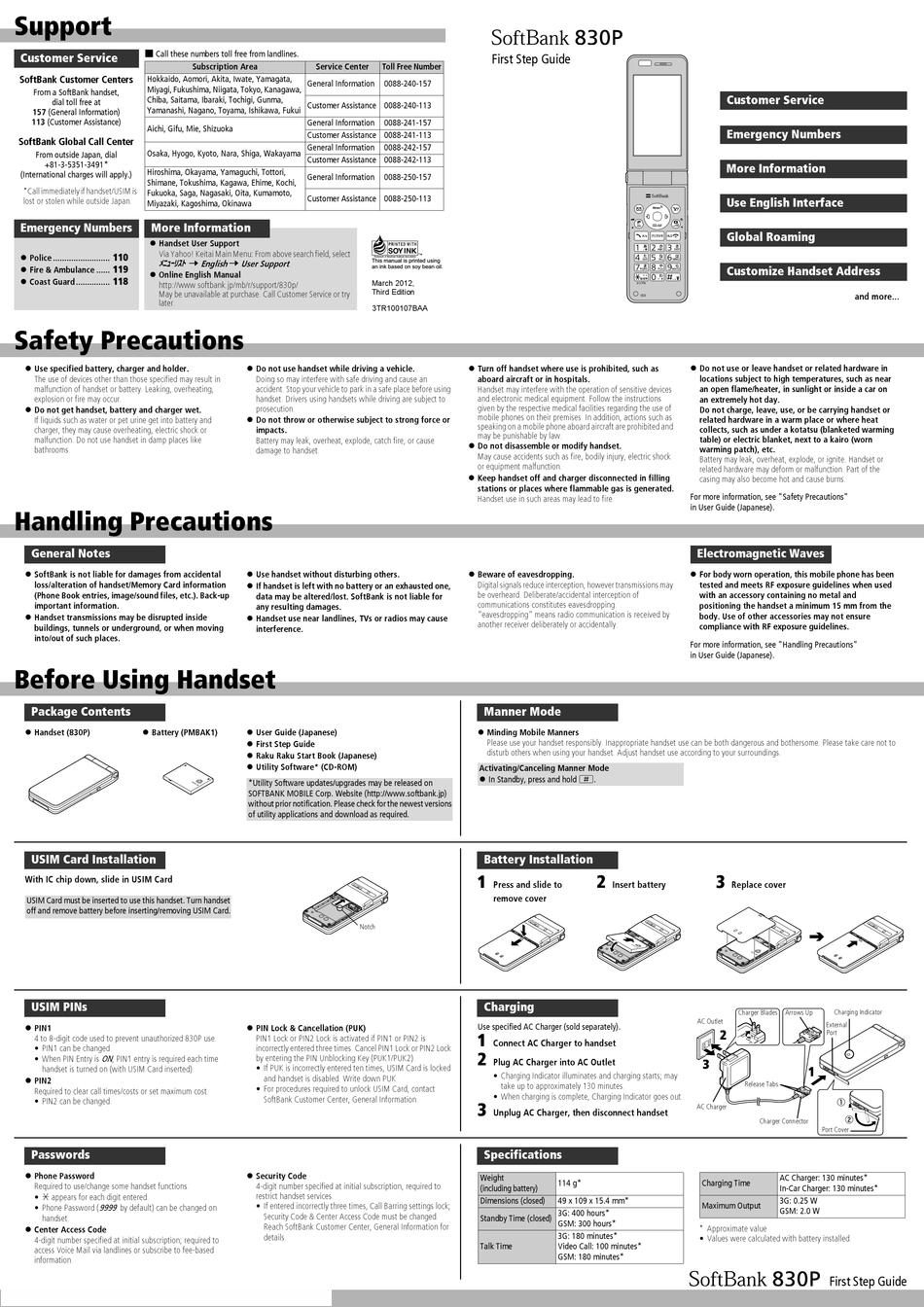

SoftBank 830P First Step Manual

Support
■ Call these numbers toll free from landlines.
Customer Service
SoftBank Customer Centers
Hokkaido, Aomori, Akita, Iwate, Yamagata,
Miyagi, Fukushima, Niigata, Tokyo, Kanagawa,
From a SoftBank handset,
Chiba, Saitama, Ibaraki, Tochigi, Gunma,
dial toll free at
Yamanashi, Nagano, Toyama, Ishikawa, Fukui
157 (General Information)
113 (Customer Assistance)
Aichi, Gifu, Mie, Shizuoka
SoftBank Global Call Center
Osaka, Hyogo, Kyoto, Nara, Shiga, Wakayama
From outside Japan, dial
+81-3-5351-3491*
Hiroshima, Okayama, Yamaguchi, Tottori,
(International charges will apply.)
Shimane, Tokushima, Kagawa, Ehime, Kochi,
*Call immediately if handset/USIM is
Fukuoka, Saga, Nagasaki, Oita, Kumamoto,
lost or stolen while outside Japan.
Miyazaki, Kagoshima, Okinawa
Emergency Numbers More Information
! Handset User Support
Via Yahoo! Keitai Main Menu: From above search field, select
110
! Police .........................
ﾒﾆｭｰﾘｽﾄ
119
! Fire & Ambulance ......
! Online English Manual
! Coast Guard............... 118
http://www.softbank.jp/mb/r/support/830p/
May be unavailable at purchase. Call Customer Service or try
later.

Safety Precautions

! Use specified battery, charger and holder.
The use of devices other than those specified may result in
malfunction of handset or battery. Leaking, overheating,
explosion or fire may occur.
! Do not get handset, battery and charger wet.
If liquids such as water or pet urine get into battery and
charger, they may cause overheating, electric shock or
ns
malfunction. Do not use handset in damp places like
bathrooms.
! Do not use handset while driving a vehicle.
Doing so may interfere with safe driving and cause an
accident. Stop your vehicle to park in a safe place before using
handset. Drivers using handsets while driving are subject to

Handling Precautions

prosecution.
! Do not throw or otherwise subject to strong force or
impacts.
Battery may leak, overheat, explode, catch fire, or cause
General Notes
damage to handset.
! SoftBank is not liable for damages from accidental
loss/alteration of handset/Memory Card information
(Phone Book entries, image/sound files, etc.). Back-up
!
important information.
! ! Handset transmissions may be disrupted inside
buildings, tunnels or underground, or when moving
into/out of such places.
Before Using Handset
Package Contents
! Handset (830P) ! Battery (PMBAK1)
USIM Card Installation
With IC chip down, slide in USIM Card
USIM Card must be inserted to use this handset. Turn handset
off and remove battery before inserting/removing USIM Card.
USIM PINs
! PIN1
4 to 8-digit code used to prevent unauthorized 830P use.
• PIN1 can be changed.
ON
• When PIN Entry is , PIN1 entry is required each time
handset is turned on (with USIM Card inserted).
! PIN2
Required to clear call times/costs or set maximum cost.
• PIN2 can be changed.
Passwords
! Phone Password
Required to use/change some handset functions.
• " appears for each digit entered.
9999
• Phone Password ( by default) can be changed on
handset.
! Center Access Code
4-digit number specified at initial subscription; required to
access Voice Mail via landlines or subscribe to fee-based
information.
Subscription Area Service Center
General Information
Customer Assistance 0088-240-113
General Information
Customer Assistance 0088-241-113
General Information
Customer Assistance 0088-242-113
General Information
Customer Assistance 0088-250-113
7 7
English User Support
.
! Do not use handset while driving a vehicle.
Doing so may interfere with safe driving and cause an
accident. Stop your vehicle to park in a safe place before using
handset. Drivers using handsets while driving are subject to
prosecution.
! Do not throw or otherwise subject to strong force or
impacts.
Battery may leak, overheat, explode, catch fire, or cause
damage to handset.
! Turn off handset where use is prohibited, such as
aboard aircraft or in hospitals.
Handset may interfere with the operation of sensitive devices
and electronic medical equipment. Follow the instructions
given by the respective medical facilities regarding the use of
mobile phones on their premises. In addition, actions such as
! speaking on a mobile phone aboard aircraft are prohibited and
may be punishable by law.
! Do not disassemble or modify handset.
!
May cause accidents such as fire, bodily injury, electric shock
! Use handset without disturbing others.
or equipment malfunction.
! If handset is left with no battery or an exhausted one,
data may be altered/lost. SoftBank is not liable for
any resulting damages.
! Handset use near landlines, TVs or radios may cause
interference.
! User Guide (Japanese)
! First Step Guide
! Raku Raku Start Book (Japanese)
! Utility Software* (CD-ROM)
*Utility Software updates/upgrades may be released on
SOFTBANK MOBILE Corp. Website (http://www.softbank.jp)
without prior notification. Please check for the newest versions
of utility applications and download as required.
Notch
! PIN Lock & Cancellation (PUK)
PIN1 Lock or PIN2 Lock is activated if PIN1 or PIN2 is
incorrectly entered three times. Cancel PIN1 Lock or PIN2 Lock
by entering the PIN Unblocking Key (PUK1/PUK2).
• If PUK is incorrectly entered ten times, USIM Card is locked
and handset is disabled. Write down PUK.
• For procedures required to unlock USIM Card, contact
SoftBank Customer Center, General Information.
! Security Code
4-digit number specified at initial subscription, required to
restrict handset services.
• If entered incorrectly three times, Call Barring settings lock;
Security Code & Center Access Code must be changed.
Reach SoftBank Customer Center, General Information for
details.
First Step Guide
Toll Free Number
0088-240-157
0088-241-157
0088-242-157
0088-250-157
This manual is printed using
an ink based on soy bean oil.
March 2012,
Third Edition
3TR100107BAA
! Turn off handset where use is prohibited, such as
aboard aircraft or in hospitals.
Handset may interfere with the operation of sensitive devices
and electronic medical equipment. Follow the instructions
given by the respective medical facilities regarding the use of
mobile phones on their premises. In addition, actions such as
speaking on a mobile phone aboard aircraft are prohibited and
may be punishable by law.
! Do not disassemble or modify handset.
May cause accidents such as fire, bodily injury, electric shock
or equipment malfunction.
!
! Keep handset off and charger disconnected in filling
!
stations or places where flammable gas is generated.
!
Handset use in such areas may lead to fire.
! Do not use or leave handset, battery or charger in locations
subject to high temperature, such as near an open flame, in
sunlight or inside a car on an extremely hot day.
Battery may leak, overheat, explode, catch fire, or deform
handset and cause damage. Part of the casing may also
become hot and cause burns.
! Beware of eavesdropping.
For more information, see "Safety Precautions"
Digital signals reduce interception, however transmissions may
in User Guide (Japanese).
be overheard. Deliberate/accidental interception of
communications constitutes eavesdropping.
"eavesdropping" means radio communication is received by
another receiver deliberately or accidentally.
Manner Mode
! Minding Mobile Manners
Please use your handset responsibly. Inappropriate handset use can be both dangerous and bothersome. Please take care not to
disturb others when using your handset. Adjust handset use according to your surroundings.
Activating/Canceling Manner Mode
! In Standby, press and hold H.
Battery Installation
1
Press and slide to
remove cover
Charging
Use specified AC Charger (sold separately).
1
Connect AC Charger to handset
2
Plug AC Charger into AC Outlet
• Charging Indicator illuminates and charging starts; may
take up to approximately 130 minutes.
• When charging is complete, Charging Indicator goes out.
3
Unplug AC Charger, then disconnect handset
Specifications
Weight
(including battery)
Dimensions (closed)
Standby Time (closed)
Talk Time
Customer Service
Emergency Numbers
More Information
Use English Interface
Global Roaming
Customize Handset Address
! Do not use or leave handset or related hardware in
! Keep handset off and charger disconnected in filling
locations subject to high temperatures, such as near stations or places where flammable gas is generated.
an open flame/heater, in sunlight or inside a car on
Handset use in such areas may lead to fire.
! Do not use or leave handset, battery or charger in locations an extremely hot day.
Do not charge, leave, use, or be carrying handset or
subject to high temperature, such as near an open flame, in
related hardware in a warm place or where heat
sunlight or inside a car on an extremely hot day.
collects, such as under a kotatsu (blanketed warming
Battery may leak, overheat, explode, catch fire, or deform
table) or electric blanket, next to a kairo (worn
handset and cause damage. Part of the casing may also
warming patch), etc.
become hot and cause burns.
Battery may leak, overheat, explode, or ignite. Handset or
For more information, see "Safety Precautions" related hardware may deform or malfunction. Part of the
in User Guide (Japanese). casing may also become hot and cause burns.
For more information, see "Safety Precautions"
in User Guide (Japanese).
Electromagnetic Waves
! For body worn operation, this mobile phone has been
tested and meets RF exposure guidelines when used
with an accessory containing no metal and
positioning the handset a minimum 15 mm from the
body. Use of other accessories may not ensure
compliance with RF exposure guidelines.
For more information, see "Handling Precautions"
in User Guide (Japanese).
2 3
Insert battery Replace cover
AC Outlet
2
3
AC Charger
114 g* Charging Time
49 x 109 x 15.4 mm*
Maximum Output
3G: 400 hours*
GSM: 300 hours*
* Approximate value
3G: 180 minutes*
• Values were calculated with battery installed.
Video Call: 100 minutes*
GSM: 180 minutes*
and more...
Charger Blades Arrows Up Charging Indicator
External
Port
1
Release Tabs
Charger Connector
Port Cover
AC Charger: 130 minutes*
In-Car Charger: 130 minutes*
3G: 0.25 W
GSM: 2.0 W
First Step Guide
