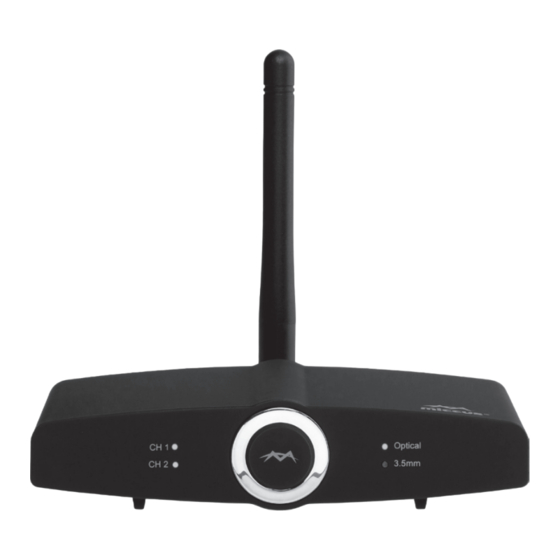

- Page 1 Miccus® Home RTX 2.0 Long Range Wireless Audio T ransmitterorReceiver Model No.: MHRTX-20...
- Page 2 Quick Start Guide: Attachtheantenna:On the back of the Home RTX 2.0, remove the white cover and attach the antenna. Turn clockwise until slightly snug. Position the antenna upright. Connecttheaudio:Connect the appropriate included cable (Optical/TOSLINK or RCA to 3.5mm) to the appropriate audio input (TX mode only) or output (RX mode only) on the back of the RTX 2.0.
-
Page 3: What's In The Box
AbouttheMiccus®HomeRTX2.0 The Miccus® Home RTX 2.0 is the world’s first dual link long range wireless transmitter or receiver featuring Bluetooth® v4.2 and two simultaneous aptX Low Latency audio streams. Use as either a Bluetooth® receiver or transmitter and add Bluetooth® technology to your existing television or stereo equipment. -
Page 4: GettingAquainted
Receiving a Bluetooth® wireless audio signal (A2DP), including Bluetooth® enabled headphones, speakers or adapters such as the Miccus® Home RTX 2.0, Swivel Jack RTX, Home RTX Mini, and SR-71 Stealth Headphones. ReceiveMode(RX): Use the RTX 2.0 with any device capable of Transmitting a Bluetooth®... - Page 5 Home RTX, Home RTX Mini, Mini-jack TX4, and Mini-jack RTX. Bluetooth®CodecSupport: The Miccus® Home RTX 2.0 provides support for four common Bluetooth® audio codecs: SBC, AAC, aptX, aptX Low Latency. The Home RTX 2.0 will automatically pair at the highest quality common codec that both devices support.
- Page 6 Connect Audio Cable To connect the RTX 2.0 to other audio devices to receive or transmit audio, Miccus has included 2 audio cable options to select from dependent on your audio needs. You will only need 1 audio cable to...
- Page 7 3.5mm (mini-plug) male to 3.5mm (mini-plug) male cable Note: If your TV or stereo system requires a different cable, please contact Miccus Customer Support and we may be able to help you: support@miccus.com, 616-604-4449. To transmit in TX (transmit) mode, the RTX 2.0 must be connected to an audio source with audio to transmit such as a TV, stereo, computer, tablet, or phone etc.
- Page 8 If already connected to USB power and powered off, press and hold the power button for 5 seconds until the indicator lights come on If off, switching the RTX 2.0 between TX and RX modes will automatically power it on To power off the RTX 2.0: press the multi-function button for approximately 6 seconds until the 2.0 powers down.
- Page 9 5 seconds indicating aptX Low Latency codec. Pairing Mode (RX): To make the pairing process easier in RX mode, Miccus has added friendly voice prompts to communicate the status. From your speaker or headphones, throughout pairing and use you will hear: Power On –...
- Page 10 3. Open the Bluetooth menu on your phone, tablet or other compatible A2DP Bluetooth® profile device and select the Miccus Home RTX 2.0. If your tablet or phone requires a passkey, use “0000.” 4. Wait for the devices to connect. This may take up to 30 seconds.
-
Page 11: Factory Reset
5 seconds. Audio breaks up or Make sure the antenna is attached wireless range is securely and positioned correctly. too low Move the Miccus Home RTX 2.0 away from other 2.4 GHz equipment such as Wi-Fi routers and microwaves. - Page 12 Check to make sure your volume is set to a listenable level. Can’t control Volume By design the Miccus Home RTX 2.0 is a passive transmitter or receiver and has no volume control. User volume level must be adjusted via the input and/or output sources connected to the Miccus Home RTX 2.0.
- Page 13 PROBLEM SOLUTION Can’t pair my device Make sure the Miccus Home RTX 2.0 with the Home and the device you’re pairing with RTX 2.0 are right next to each other. Make sure all other Bluetooth compatible receiving or transmitting devices you’re not trying to pair with are either powered off or Bluetooth disabled.
-
Page 14: Care And Maintenance
Don’t use abrasive cleaning solvents to clean the Miccus® Home RTX 2.0. • Do not dispose of the Miccus® Home RTX 2.0 in fire as it will result in an explosion. • Avoid contact with sharp objects. They may scratch or damage the Miccus®... -
Page 15: Fcc Information
© 2018 Miccus, Inc. All rights reserved. Bluetooth® is a trademark of the Bluetooth SIG and used under license. The apX® and aptX Low Latency®...
