Outdoor Decorative Gas Appliance. ANSI Z21.97-2010
Outdoor Gas Fireplaces. CR97-003

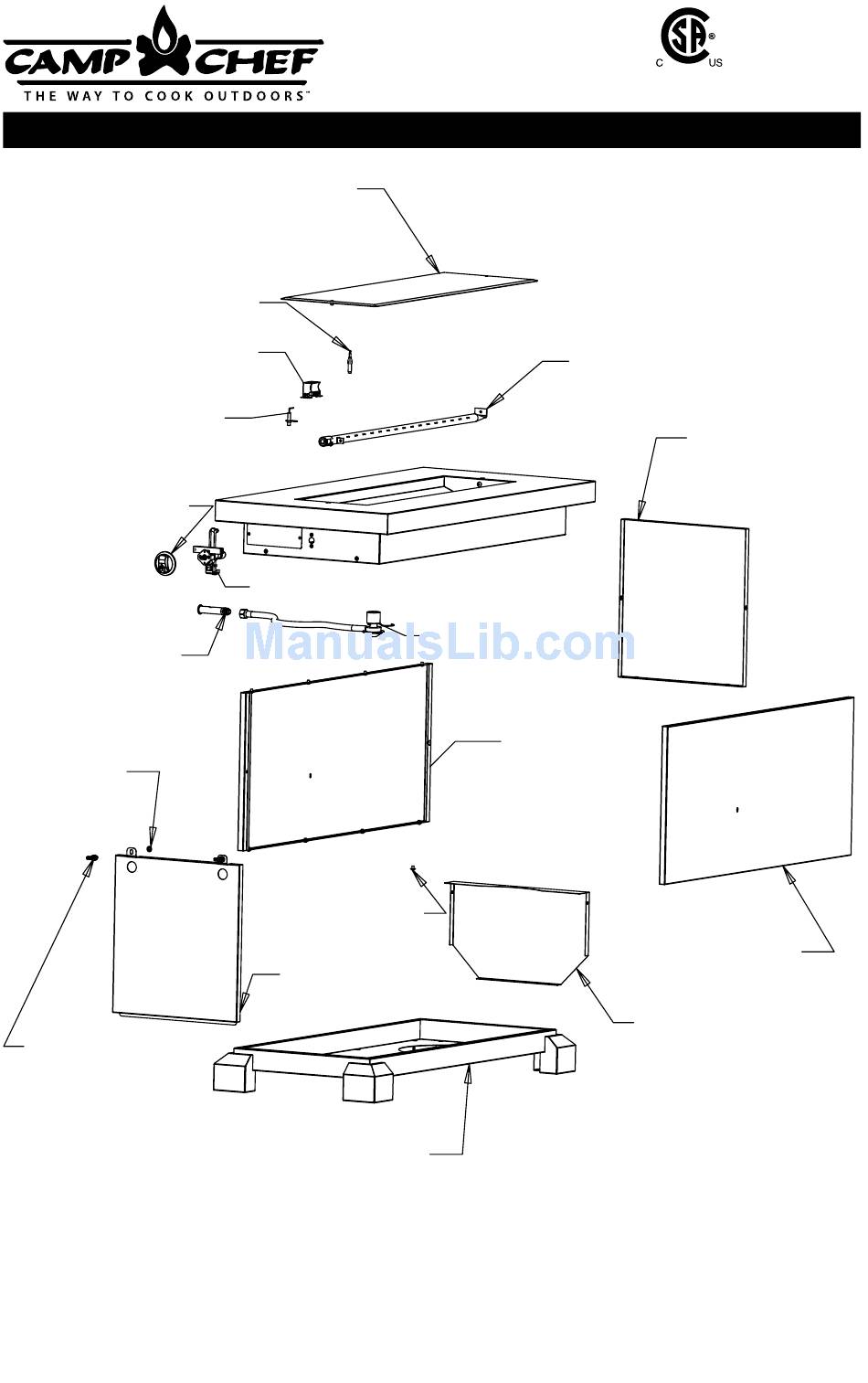

PARTS LIST
MODEL - FP40
FP40 COVER (1)
FP40-1
FP29 THERMOCOUPLE (1)
FP29LG-27
FP40 IGNITER COVER (1)
FP40 BURNER ASM (1)
FP40-3
FP40-2
IGNITER ELECTRODE (1)
FP40-12
FP40 BACK PANEL (1)
FP40-11
FP VALVE KNOB (1)
FP29LG-26
FP40 VALVE W/IGNITER (1)
FP40-4
LOW PRESSURE REG (1)
0835
FP29LG MANIFOLD (1)
FP29LG-24
FP40 LEFT SIDE (1)
FP40-9
1/4 PUSH NUT (2)
0759
#10-32 X 1/4 SCREW (28)
FP40 RIGHT SIDE (1)
FP40-10
FP40 DOOR (1)
FP40-6
FP40 DIVIDER (1)
FP40-8
1/4-20 THUMB SCREW (2)
330076
FP40 BASE (1)
FP40-7
MODEL #: FP40
0612-FP40-PARTS
PROPANE FIRE PIT
Warning & Instruction Booklet
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Camp Chef FP40
Summary of Contents for Camp Chef FP40
- Page 1 Outdoor Decorative Gas Appliance. ANSI Z21.97-2010 Outdoor Gas Fireplaces. CR97-003 PARTS LIST MODEL - FP40 FP40 COVER (1) FP40-1 FP29 THERMOCOUPLE (1) FP29LG-27 FP40 IGNITER COVER (1) FP40 BURNER ASM (1) FP40-3 FP40-2 IGNITER ELECTRODE (1) FP40-12 FP40 BACK PANEL (1) FP40-11...
-
Page 2: Carbon Monoxide Hazard
DANGER Read all instructions before beginning to assemble the fire pit. Philip’s screwdriver required. If you smell gas: Assembly is easier with two people. Lay top assembly upside down on a 1. Shut off gas to the appliance. clean surface.(Use a blanket or towel to avoid scratching) 2. - Page 3 NOTE: This assembly is easier using two people to help hold the parts. Install side panel as shown using QTY 5 #10 screws. Do not tighten the screws all the way at this point. Starting with the rear panel make sure Install back panel as shown using QTY 3 #10 screws.
- Page 4 Install center panel as shown using QTY 2 #10 screws. Install bottom assembly as shown using QTY 14 #10 screws. Do not tighten screws all the way at this point. Note: Use a long Phillips screwdriver to reach through the access holes Note: Cutout for the tank should face the front as shown.
- Page 5 Turn right side up and spread burner media(rock or glass) around the WHAT TO DO IF YOU SMELL GAS. When in use, the fire pit must be on a level, • Do not try to light any appliance. stable surface in an area clear of combustible burner.
- Page 6 Never fill the cylinder beyond 80 percent full. Follow the instructions stated on gas cylinder plate for model identification. Units are factory 5. Push knob in and turn slowly to the low Failure to follow these instructions exactly could tanks when filling or transporting tanks. Failure equipped for use on only one type of fuel.
-
Page 7: Limited Warranty
Warranty does not cover normal wear of parts or damage caused by misuse, abuse, overheating and alteration. Repairs or alterations made by anyone other than Camp Chef are not covered in this Warranty. Manufacturer will not be held liable for any losses due to neglectful operation. - Page 8 How to Convert a Fire Pit, Stove , & Smoker to Natural Gas...
- Page 9 NGKIT, which is our Natural Gas Conversion Kit, is needed to convert any Low Pressure Stove, Smoke Vault, or Fire Pit.
- Page 10 Fire Pit Conversion to Natural Gas Remove valve from Safety first! Make sure burner, unscrew from everything is shut off and thermocouple wire, and that hose is removed disconnect electrode from propane tank. wire. Remove knob and valve cover. Once valve is removed from fire pit, drill the orifice with a 1/8th drill bit.
- Page 11 Stove Conversion to Natural Gas Start by making sure all is shut off and that hose is removed from propane tank. Remove knobs and front panel. At this point all you need to do is remove NOTE: Only low pressure stoves the manifold from (30,000BTU or the valves..
- Page 12 Smoke Vault Conversion to Natural Gas To convert the Smoke Vault to natural gas you’ll need the NGKIT and a #51 drill bit. If you haven’t assembled your smoker yet, remove the valve from the burner and use the specified drill to widen the valve’s orifice.
- Page 13 If your smoker is already assembled and has been used, make sure everything is turned off and disconnect the hose from your smoker. Then lay the smoker on it’s back and remove the burner. This will give you access to the valve. Drill valve’s orifice with a #51 drill bit.
