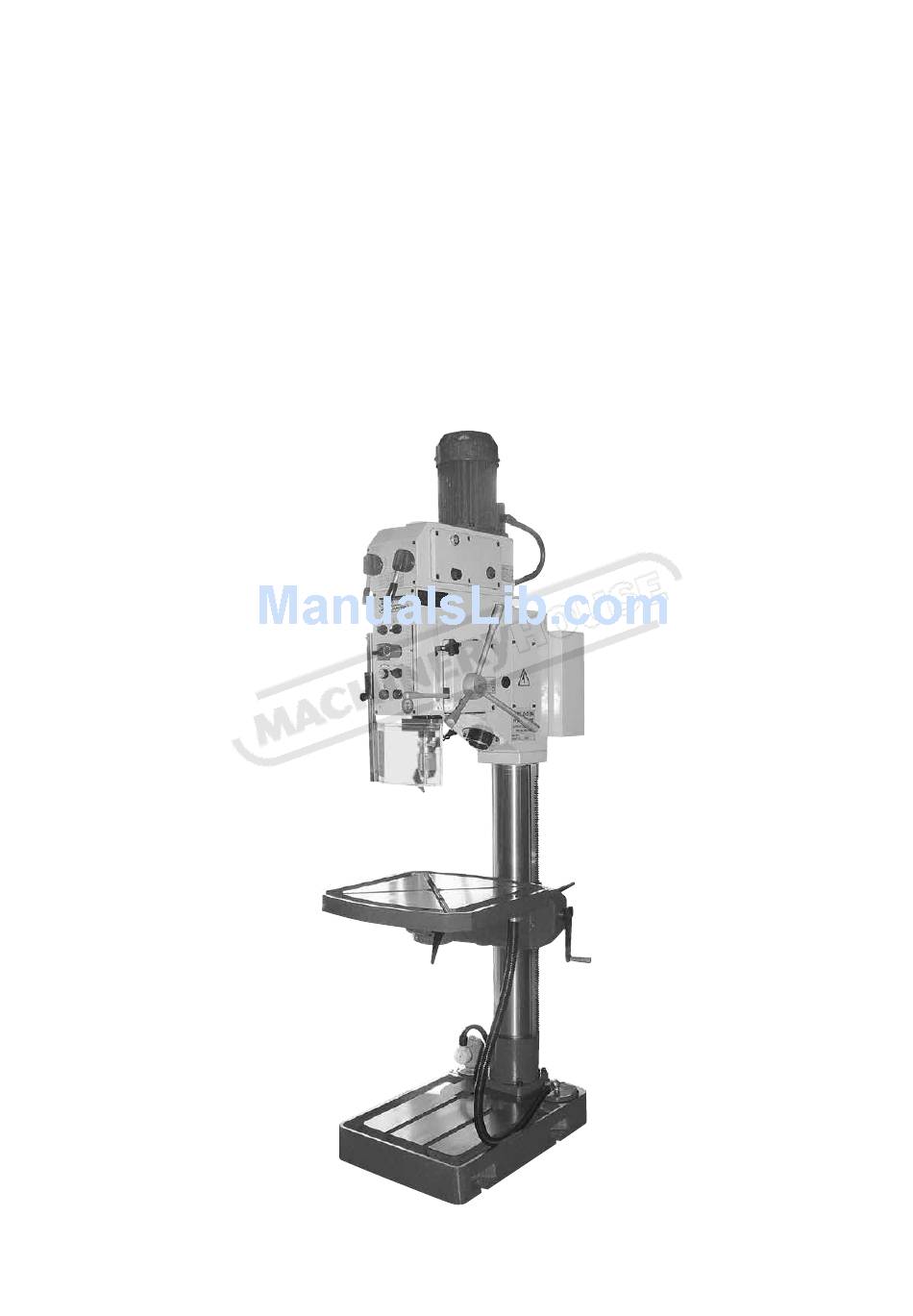

- Page 1 Page 1 Instructions Manual for GHD-38B (D1325) 26/06/2017 INSTRUCTION MANUAL GHD-38B Geared Head Drill (415V) 40mm Drilling Cap. with Auto. Feed & Tapping D1325...
- Page 2 Page 2 Instructions Manual for GHD-38B (D1325) 26/06/2017 D1325 GHD38D 23-11-15 DRILLING MACHINE OWNER’S MANUAL ALWAYS READ THE MANUAL BEFORE OPERATING THE MACHINE...
-
Page 3: Table Of Contents
Page 3 Instructions Manual for GHD-38B (D1325) 26/06/2017 OWNER’S MANUAL CONTENTS NOTE---------------------------------------------------------------------------------- PASSPORT DATA----------------------------------------------------------------- LIMITED WARRANTY ---------------------------------------------------------- TEST PROTOCOL---------------------------------------------------------------- MAIN SPECIFICATIONS-------------------------------------------------------- TRANSPORT---------------------------------------------------------------------- INSPECTION----------------------------------------------------------------------- CLEANING-------------------------------------------------------------------------- GENERAL DESCRIPTION----------------------------------------------------- 10. FILLING WITH OIL---------------------------------------------------------------- 11. LUBRICATION--------------------------------------------------------------------- 12. SPEED SELECTOR-------------------------------------------------------------- 13. FEEDS SELECTOR-------------------------------------------------------------- 14. AUTOMATIC TOOL EJECTOR----------------------------------------------- 15. -
Page 4: Note
Page 4 Instructions Manual for GHD-38B (D1325) 26/06/2017 OWNER’S MANUAL NOTE This manual has been prepared for the owner and operators of this machine. Its purpose, aside from machine operation, is to promote safety through the use of accepted correct operating and maintenance procedures. -
Page 5: Limited Warranty
Page 5 Instructions Manual for GHD-38B (D1325) 26/06/2017 OWNER’S MANUAL LIMITED WARRANTY We makes every effort to assure that our products meet high quality and durability standards and warrants to the original retail consumer/purchaser of our products that each product be free from defects in materials and workmanship as follow: ONE YEAR LIMITED WARRANTY ON ALL PRODUCTS UNLESS SPECIFIED OTHERWISE. -
Page 6: Test Protocol
Page 6 Instructions Manual for GHD-38B (D1325) 26/06/2017 OWNER’S MANUAL TEST PROTOCOL Diagram of measuring method Inspection item Tolerance Data Plane ness of table 0.12 and base Spindle taper run out a. At a. 0.03 spindle nose b. At b. 0.06... -
Page 7: Main Specifications
Page 7 Instructions Manual for GHD-38B (D1325) 26/06/2017 OWNER’S MANUAL MAIN SPECIFICATIONS Maximum drilling diameter 40mm Taper of spindle hole MT4# Distance from the center of spindle to The surface of the vertical column 350mm Maximum travel of spindle 180mm... -
Page 8: Transport
Page 8 Instructions Manual for GHD-38B (D1325) 26/06/2017 OWNER’S MANUAL TRANSPORT Insert an iron bar through the transversal hole in the machine head which, with the aid of a rope, will be used for lifting the machine INSPECTION The machine should be carefully examined on arrival, to check that it is complete and in good order, so that claims can be made, if necessary. -
Page 9: General Description
Page 9 Instructions Manual for GHD-38B (D1325) 26/06/2017 OWNER’S MANUAL GENERAL DESCRIPTION See Fig. 1 1 Driving motor 10 Manual control gear box 2 Speed selectors 11 Deep stop 3 Speed plate 12 Rapid manual feed control 4 Oil filling opening... -
Page 10: Lubrication
Page 10 Instructions Manual for GHD-38B (D1325) 26/06/2017 OWNER’S MANUAL LUBRICATION Quill Spindle Daily lubricate with oil the greaser located next the spiral spring cover. Quill gearing shaft Daily lubricate with oil the lubrication port on the spiral spring cover. -
Page 11: Speed Selector
Page 11 Instructions Manual for GHD-38B (D1325) 26/06/2017 OWNER’S MANUAL SPEED SELECTOR By means of levers spindle speeds are selected. Left lever selects a co lour. Depending on the color selected. Right lever selects a spindle speed value. For moving these levers, slightly pull them and the rotate. -
Page 12: Automatic Feed
Page 12 Instructions Manual for GHD-38B (D1325) 26/06/2017 OWNER’S MANUAL AUTOMATIC FEED Models incorporate mechanical automatic feed. The way to proceed is the following: 1. -Regulate the stroke at the depth top. 2. -Select the feed. 3. -Place the lever of the automatic feed. -
Page 13: Table Support And Coolant
Page 13 Instructions Manual for GHD-38B (D1325) 26/06/2017 OWNER’S MANUAL Ⅰ.Table Support and Coolant Page -11 -... - Page 14 Page 14 Instructions Manual for GHD-38B (D1325) 26/06/2017 OWNER’S MANUAL Ⅰ.Table Support and Coolant Index No. Parts No. Description Qty. Z5040.01-01 Base Z5040.01-03 Plate GB70/M6×12 Screw DB-12 Coolant Pump GB70/M5×8 Screw GB4141.5/M10 Knob Z5040.01-17 Handle GB79/M10×10 Screw Z5040.01-18 Clamp Collar Z5040.01-19...
-
Page 15: Speed Box
Page 15 Instructions Manual for GHD-38B (D1325) 26/06/2017 OWNER’S MANUAL Ⅱ.Speed Box（1/2） Page -13 -... - Page 16 Page 16 Instructions Manual for GHD-38B (D1325) 26/06/2017 OWNER’S MANUAL Ⅱ.Speed Box（2/2） Page -14 -...
- Page 17 Page 17 Instructions Manual for GHD-38B (D1325) 26/06/2017 OWNER’S MANUAL Ⅱ.Speed Box Index No. Parts No. Description Qty. Z5040.02-01 Gear Box YD100L Driving Motor GB/T93/10 Washer GB70/M10×35 Screw Z5040.02-13 Gasket G38-3A/Z3/8`` Drain Plug GB70/M8×16 Screw M27×1.5 Sight Glass M27×1.5 Sight Hub G38-2A/M27×1.5...
- Page 18 Page 18 Instructions Manual for GHD-38B (D1325) 26/06/2017 OWNER’S MANUAL Z5040.02-22 Shaft GB894.1/48 Retainer Ring Z5040.02-21 Gear GB1567/8×5×36 Z5040.02-20 Gear Z5040.02-23 Gear GB894.1/60 Retainer Ring Z5040.02-06 Flange GB70/M5×16 Retainer Ring Z5040.02-25 Plug GB3452.1/54.5×3.55 O-Ring GB276/206 Bearing Z5040.02-15 Sleeve Z5040.02-26 Gear Z5040.02-24...
-
Page 19: Feed Box
Page 19 Instructions Manual for GHD-38B (D1325) 26/06/2017 OWNER’S MANUAL Ⅲ.Feed Box Page -17 -... - Page 20 Page 20 Instructions Manual for GHD-38B (D1325) 26/06/2017 OWNER’S MANUAL Ⅲ.Feed Box Page -18 -...
-
Page 21: Head Stock
Page 21 Instructions Manual for GHD-38B (D1325) 26/06/2017 OWNER’S MANUAL Ⅳ.Headstock（1/2） Page -19 -... - Page 22 Page 22 Instructions Manual for GHD-38B (D1325) 26/06/2017 OWNER’S MANUAL Ⅳ.Headstock（2/2） Page -20 -...
- Page 23 Page 23 Instructions Manual for GHD-38B (D1325) 26/06/2017 OWNER’S MANUAL Ⅳ.Headstock Index No. Parts No. Description Qty. Z5040.03-01 Headstock Z5040.03-65 Shift Fork GB119/10×25 Z5040.03-66 Shift Lever Z5040.03-70 Handle GB79/M8×12 Screw Z5040.03-69 Handle GB308/M8×8 Ball GB2089/1×5×25 Spring GB77/M8×8 Screw GB308/8 Ball GB2089/0.8×5×15...
- Page 24 Page 24 Instructions Manual for GHD-38B (D1325) 26/06/2017 OWNER’S MANUAL GB823/M6×8 Screw Z5040.03-28 Spindle Z5040.03-27 Quill GB894.1/75 Petainer Ring GB1235/73×5.3 O-Ring Z5040.03-41 Washer GB301/D8108 Bearing GB/T5801/RUA49/32 Bearing Z5040-03-26 Small Quill GB279/180106G Bearing Z5040.03-29 Clamp Nut GB70/M5×12 Screw GB119/12×45 Z5040.03-25 Spring Z5040.03-38...
-
Page 25: Operation Panel
Page 25 Instructions Manual for GHD-38B (D1325) 26/06/2017 OWNER’S MANUAL OPERATION PANEL Page -23 -... -
Page 26: Wiring Diagram
Page 26 Instructions Manual for GHD-38B (D1325) 26/06/2017 OWNER’S MANUAL Page -24 -... -
Page 27: Electrical Schematic Symbol Glossary
Page 27 Instructions Manual for GHD-38B (D1325) 26/06/2017 OWNER’S MANUAL ELECTRICAL SCHEMATIC SYMBOL GLOSSARY CODE NAME FUNCTION SPECIFICATION MAIN MOTOR SPINDIE YD100L-4/8 PUMP COOLANT DB12 CIRCUIT M1 PROTECTION 3VU13400MJ00 BREAKERS CIRCUIT M2 PROTECTION DZ47-60/D1, 2P BREAKERS CIRCUIT CONTROL CIRCUIT DZ47-60/C3, 1P... -
Page 28: Drill Protection Guard
Page 28 Instructions Manual for GHD-38B (D1325) 26/06/2017 OWNER’S MANUAL DRILL PROTECTION GUARD The machine is provided with a security micro drill guard. Before pressing the starting push button, set the drill guard in the working position, otherwise the machine controls will not start. Note: If the guard is opened when operating the machine, the machine will stop. - Page 29 Page 29 Instructions Manual for GHD-38B (D1325) 26/06/2017 OWNER’S MANUAL Attention: In this machine, when the main power switch is placed at: “0 ”position, the minimum tension auxiliary circuit remains under tension. For minimum tension auxiliary circuit maintenance o reparation jobs, put first at “0”...
-
Page 30: Safety And General Information
Page 30 Instructions Manual for GHD-38B (D1325) 26/06/2017 OWNER’S MANUAL SAFETY AND GENERAL INFORMATION 1.SAFETY: “open A drilling machine, due to its purpose, is considered an machine ”Therefore, some safety measures have to be taken to avoid accidents. Bear in mind the following safety instructions: ... -
Page 31: Forseen Use Of The Machine
Page 31 Instructions Manual for GHD-38B (D1325) 26/06/2017 OWNER’S MANUAL Keep children away. Use only such accessories and attachments as are recommended in the operating instructions or the catalogue for the power tool concerned. 2. FORESEEN USE OF THE MACHINE The drilling machine was designed to be used with specific tools and for certain machining operations. -
Page 32: Tool Fixing
Page 32 Instructions Manual for GHD-38B (D1325) 26/06/2017 OWNER’S MANUAL mainly produced during the drilling process. The tangential forces produce a moment of forces which make the piece being drilled turn. Therefore, the pieces to be drilled (or to be machined by one of the operations mentioned above) must be clamped in an appropriate device such as a drill chuck and the drill chuck must be correctly clamped to the machine table. -
Page 33: Machine Care And Maintenance
Page 33 Instructions Manual for GHD-38B (D1325) 26/06/2017 OWNER’S MANUAL MACHINE CARE AND MAINTENANCE Drilling machines are highly accurate machine tool designed to operate around the clock if properly operated and maintained. Machine must be lubricated and checked for adjustment before operation. Improper lubrication or loose nuts and bolts can cause excessive wear and dangerous operating conditions.
