Keithley Instruments
28775 Aurora Road
Cleveland, Ohio 44139
1-800-935-5595
tek.com/keithley
Introduction
The Model 7705 40-Channel Single-Pole Control Module has 40 channels of independent switching. These
channels control power to the device under test (DUT) and switching loads. They can also directly control
equipment such as light indicators and relays.
Item shipped may vary from model pictured here.
The 7705 includes the following features:
▪
Forty independent Form A switches
▪
Two 50-pin D-sub connectors for use with the Model 7788 50-Pin D-Subminiature Connector Kit
▪
A Model 7788 50-Pin D-Subminiature Connector Kit, which includes two D-sub connectors
The 7705 switching module can be used with the DAQ6510 Data Acquisition and Multimeter System.
If you are using this switching module with the 2700, 2701, or 2750, please see Model 7705 Control
Module User's Guide, Keithley Instruments document number PA-696.
077144900 / April 2018

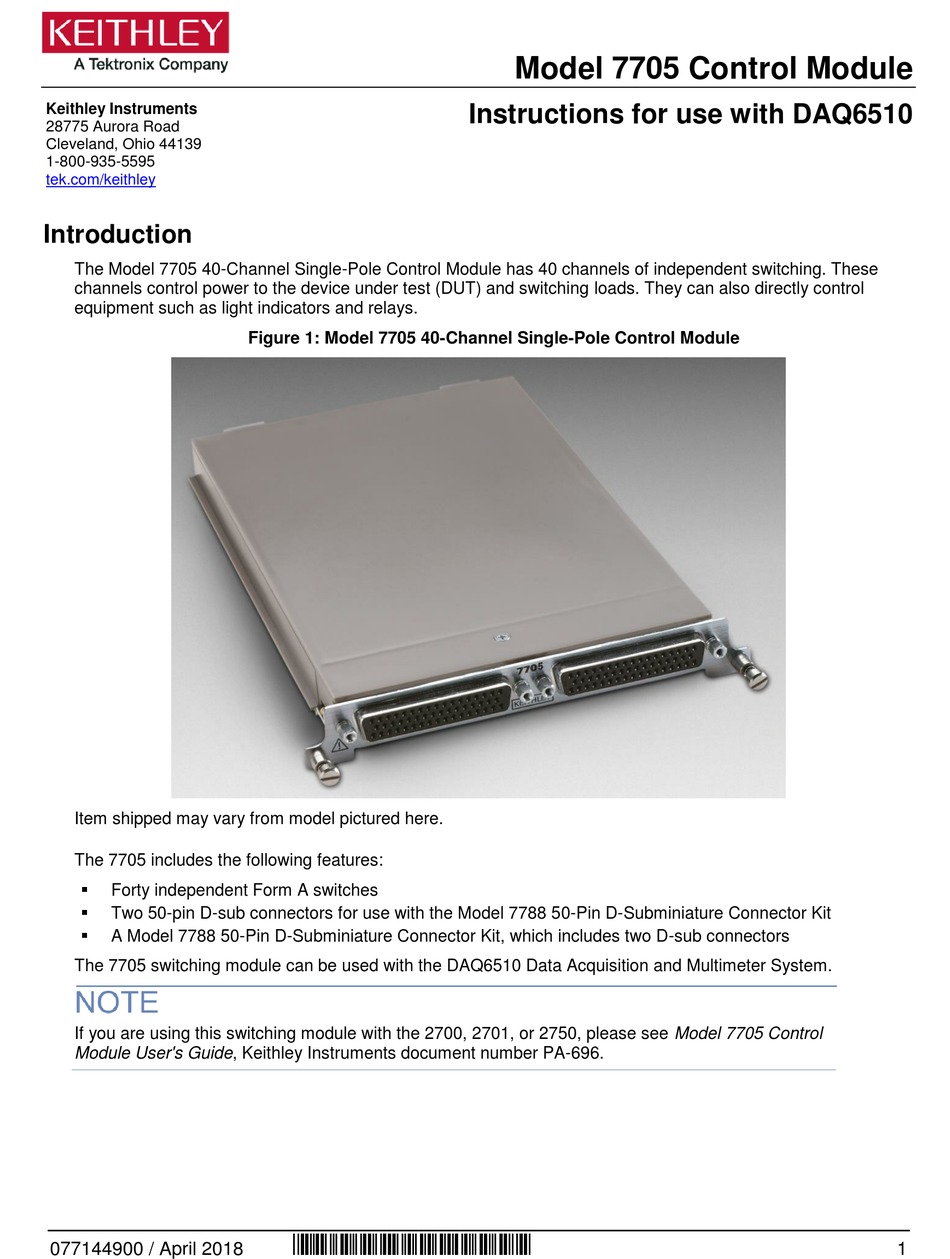

Figure 1: Model 7705 40-Channel Single-Pole Control Module
*P077144900*
Model 7705 Control Module
Instructions for use with DAQ6510
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Keithley 7705
- Page 1 The 7705 switching module can be used with the DAQ6510 Data Acquisition and Multimeter System. If you are using this switching module with the 2700, 2701, or 2750, please see Model 7705 Control Module User's Guide, Keithley Instruments document number PA-696.
-
Page 2: Connection Information
7705 switching module to control external circuits. Although the 7705 relays are latching type (relays hold their state even after power has been removed), all relay states are set to open a few seconds after either a power cycle or a reset command is issued. -
Page 3: Module Connections
When looking at the rear connectors of the 7705 switching module, the connector on the left is P1000 and the connector on the right is P1001, as shown in the following figure. Channel designations are shown in the following table. -
Page 4: Connection Log
Model 7705 Control Module Instructions for use with DAQ6510 Connection log You can use the table to record your connection information. Channel Color Description Description Color Channel 077144900 / April 2018... -
Page 5: Wire Sizes
Make all connections using the correct wire size (up to 20 AWG). Use the 7788 Connector Kit to provide a high quality connection to the 7705 switching module. Typical wiring connections are shown in the following figure. All wiring must be rated for the maximum voltage in the system. For example, if 1000 V is applied to the front terminals of the instrument, the switching module wiring must be rated for 1000 V. - Page 6 If you are installing two switching modules, it is easier to install one switching module into Slot 2 first, then install the second switching module into Slot 1. If you have a Keithley Instruments Model 2700, 2701, or 2750 instrument, you can use your existing switching module in the DAQ6510. Follow the instructions in your original equipment documentation to remove the module from the instrument, then use the following instructions to install it in the DAQ6510.
-
Page 7: Remove A Switching Module
Model 7705 Control Module Instructions for use with DAQ6510 Remove a switching module Before you remove a switching module, or begin any testing, make sure that all of the relays are open. Since some relays may be latched closed, you must open all of the relays before removing the switching module to make connections. -
Page 8: Operation
Model 7705 Control Module Instructions for use with DAQ6510 Operation Before installing or removing a 7705 switching module, make sure the DAQ6510 power is turned off and disconnected from line power. Failure to comply may result in incorrect operation and loss of data in 7705 memory. -
Page 9: Safety Precautions
Keithley products are designed for use with electrical signals that are measurement, control, and data I/O connections, with low transient overvoltages, and must not be directly connected to mains voltage or to voltage sources with high transient overvoltages. - Page 10 (note that selected parts should be purchased only through Keithley to maintain accuracy and functionality of the product). If you are unsure about the applicability of a replacement component, call a Keithley office for information.
