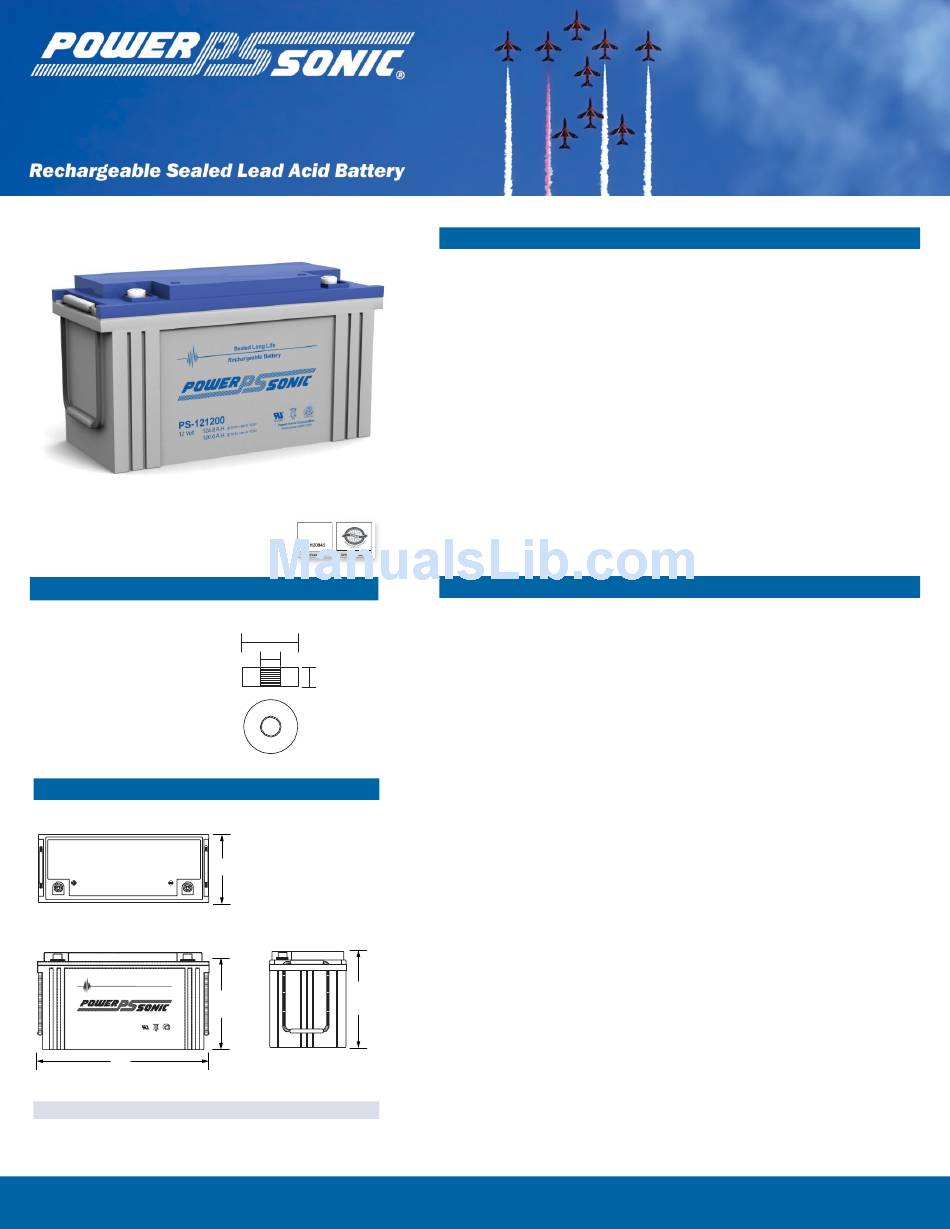

PowerSonic PS-121200 Technical Manual

PS-121200
12 Volt 124.8 AH
Terminals
• T11 - THREADED
INSERT - 8mm STUD
Physical Dimensions: in (mm)
Sealed Long Life
Rechargeable Battery
PS-121200
®
Pb
12 Volt 124.8 A.H.
@ 20-hr. rat e t o 1 0.8V M H2 084 5
N O N S PIL L A B LE
P o w er -S o ni c C o r p or a ti o n
120.0 A.H.
@ 10-hr. rate to 10.8V
www. po wer-s o nic .c om
L
L: 16.14 (410) W: 6.97 (177) H: 8.86 (225) HT: 8.86 (225)
Tolerances are +/- 0.04 in. (+/- 1mm) and +/- 0.08 in. (+/- 2mm) for
height dimensions. All data subject to change without notice.
To ensure safe and efficient operation always refer to the latest edition of our Technical Manual, as published on our website.
All data subject to change without notice.
@ 20-hr. rate
120.0 AH
@ 10-hr. rate
(mm)
20mm
M8
7mm
W
H
HT
Features
• Absorbent Glass Mat (AGM) technology for superior
performance
• Valve regulated, spill proof construction allows safe
operation in any position
• Power/volume ratio yielding unrivaled energy density
• Rugged impact resistant ABS case and cover (UL94-HB)
• Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and
C.A.B. certified
• U.L. recognized under file number MH 20845
Performance Specifications
ominal Voltage ........................................................................ 12 volts (6 cells)
N
Nominal Capacity
20-hr. (6.24A to 10.50 volts) ........................................................ 124.8 AH
10-hr. (12.0A to 10.50 volts) ........................................................ 120.0 AH
8-hr. (14.3A to 10.50 volts).......................................................... 114.4 AH
5-hr. (20.64A to 10.20 volts) ..................................................... 103.2 AH
3-hr. (31.2A to 10.20 volts) ............................................................ 93.6 AH
1-hr. (73.2A to 9.60 volts) ............................................................ 73.2 AH
Approximate Weight ........................................................... 77.2 lbs. (35.0 kg)
Energy Density (10-hr. rate) .................................. 1.44 W-h/in3 (88.16 W-h/l)
Specific Energy (10-hr. rate) .............................. 18.65 W-h/lb (41.12 W-h/kg)
Internal Resistance (approx.) ..................................................... 4.0 milliohms
Max Short-Duration Discharge Current (10 Sec.).................... 374 amperes
Shelf Life (% of nominal capacity at 68°F (20°C))
1 Month ...................................................................................................... 97%
3 Months..................................................................................................... 91%
6 Months .................................................................................................... 83%
Operating Temperature Range
Charge.. ........................................................... -4°F (-20°C) to 122°F (50°C)
Discharge ....................................................... -40°F (-40°C) to 140°F (60°C)
Case ...................................................................................................... ABS Plastic
Power-Sonic Chargers ................................................................................... n/a
