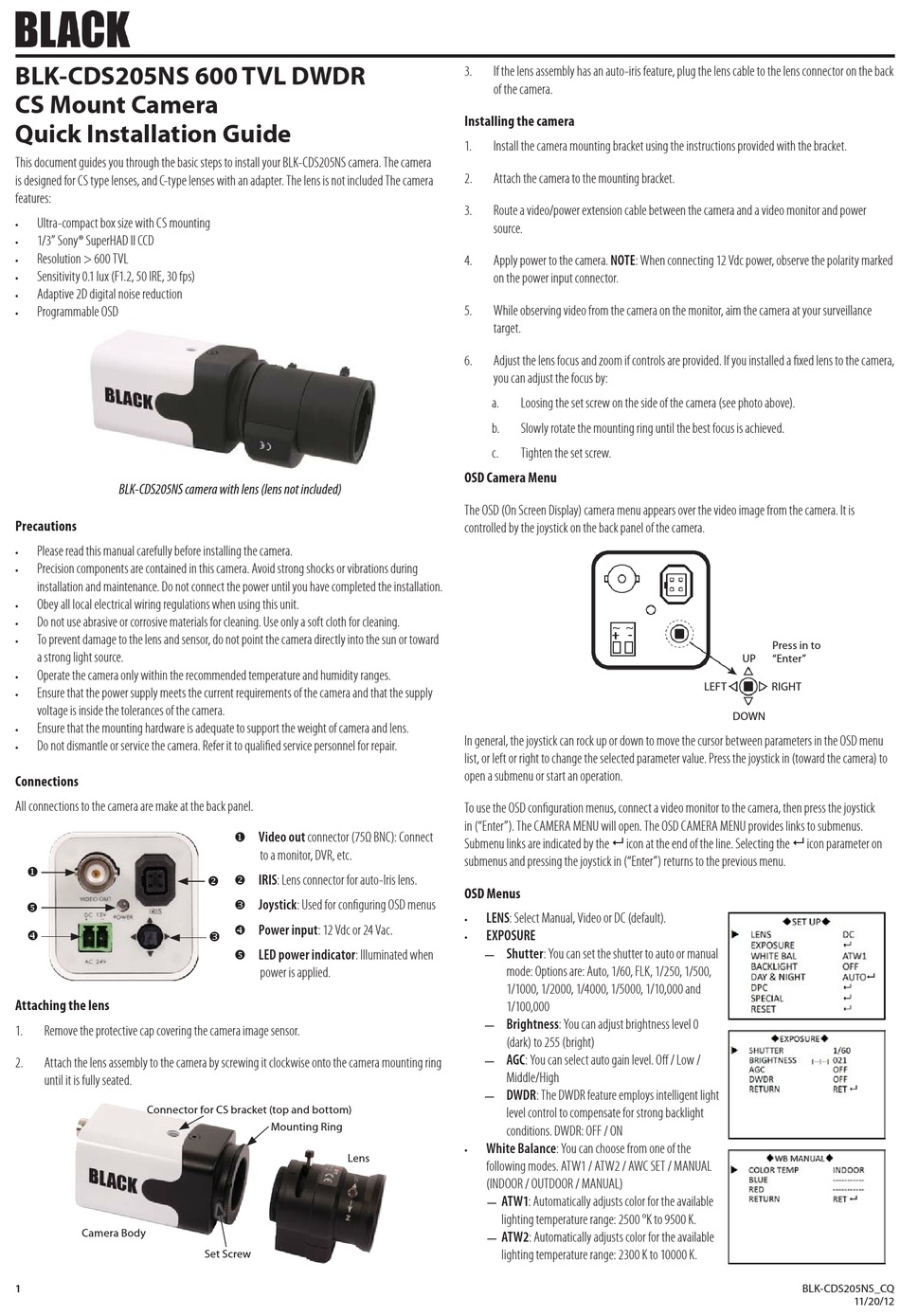

Black BLK-CDS205NS Quick Installation Manual

BLK-CDS205NS 600 TVL DWDR
CS Mount Camera
Quick Installation Guide
This document guides you through the basic steps to install your BLK-CDS205NS camera. The camera
is designed for CS type lenses, and C-type lenses with an adapter. The lens is not included The camera
features:
Ultra-compact box size with CS mounting
•
1/3" Sony® SuperHAD II CCD
•
Resolution > 600 TVL
•
Sensitivity 0.1 lux (F1.2, 50 IRE, 30 fps)
•
Adaptive 2D digital noise reduction
•
Programmable OSD
•
BLK-CDS205NS camera with lens (lens not included)
Precautions
Please read this manual carefully before installing the camera.
•
Precision components are contained in this camera. Avoid strong shocks or vibrations during
•
installation and maintenance. Do not connect the power until you have completed the installation.
Obey all local electrical wiring regulations when using this unit.
•
Do not use abrasive or corrosive materials for cleaning. Use only a soft cloth for cleaning.
•
To prevent damage to the lens and sensor, do not point the camera directly into the sun or toward
•
a strong light source.
Operate the camera only within the recommended temperature and humidity ranges.
•
Ensure that the power supply meets the current requirements of the camera and that the supply
•
voltage is inside the tolerances of the camera.
Ensure that the mounting hardware is adequate to support the weight of camera and lens.
•
Do not dismantle or service the camera. Refer it to qualified service personnel for repair.
•
Connections
All connections to the camera are make at the back panel.

y

Attaching the lens
1. Remove the protective cap covering the camera image sensor.
2. Attach the lens assembly to the camera by screwing it clockwise onto the camera mounting ring
until it is fully seated.
Connector for CS bracket (top and bottom)
Camera Body
1
Video out connector (75Ω BNC): Connect

to a monitor, DVR, etc.
IRIS: Lens connector for auto-Iris lens.


Joystick: Used for configuring OSD menus

Power input: 12 Vdc or 24 Vac.


LED power indicator: Illuminated when
y
power is applied.
Mounting Ring
Lens
Set Screw
3. If the lens assembly has an auto-iris feature, plug the lens cable to the lens connector on the back
of the camera.
Installing the camera
1. Install the camera mounting bracket using the instructions provided with the bracket.
2. Attach the camera to the mounting bracket.
3. Route a video/power extension cable between the camera and a video monitor and power
source.
4. Apply power to the camera. NOTE: When connecting 12 Vdc power, observe the polarity marked
on the power input connector.
5. While observing video from the camera on the monitor, aim the camera at your surveillance
target.
6. Adjust the lens focus and zoom if controls are provided. If you installed a fixed lens to the camera,
you can adjust the focus by:
a. Loosing the set screw on the side of the camera (see photo above).
b. Slowly rotate the mounting ring until the best focus is achieved.
c. Tighten the set screw.
OSD Camera Menu
The OSD (On Screen Display) camera menu appears over the video image from the camera. It is
controlled by the joystick on the back panel of the camera.
In general, the joystick can rock up or down to move the cursor between parameters in the OSD menu
list, or left or right to change the selected parameter value. Press the joystick in (toward the camera) to
open a submenu or start an operation.
To use the OSD configuration menus, connect a video monitor to the camera, then press the joystick
in ("Enter"). The CAMERA MENU will open. The OSD CAMERA MENU provides links to submenus.
Submenu links are indicated by the 8 icon at the end of the line. Selecting the 8 icon parameter on
submenus and pressing the joystick in ("Enter") returns to the previous menu.
OSD Menus
LENS: Select Manual, Video or DC (default).
•
EXPOSURE
•
Shutter: You can set the shutter to auto or manual
—
mode: Options are: Auto, 1/60, FLK, 1/250, 1/500,
1/1000, 1/2000, 1/4000, 1/5000, 1/10,000 and
1/100,000
Brightness: You can adjust brightness level 0
—
(dark) to 255 (bright)
AGC: You can select auto gain level. Off / Low /
—
Middle/High
DWDR: The DWDR feature employs intelligent light
—
level control to compensate for strong backlight
conditions. DWDR: OFF / ON
White Balance: You can choose from one of the
•
following modes. ATW1 / ATW2 / AWC SET / MANUAL
(INDOOR / OUTDOOR / MANUAL)
ATW1: Automatically adjusts color for the available
—
lighting temperature range: 2500 °K to 9500 K.
ATW2: Automatically adjusts color for the available
—
lighting temperature range: 2300 K to 10000 K.
Press in to
UP "Enter"
LEFT RIGHT
DOWN
BLK-CDS205NS_CQ
11/20/12
