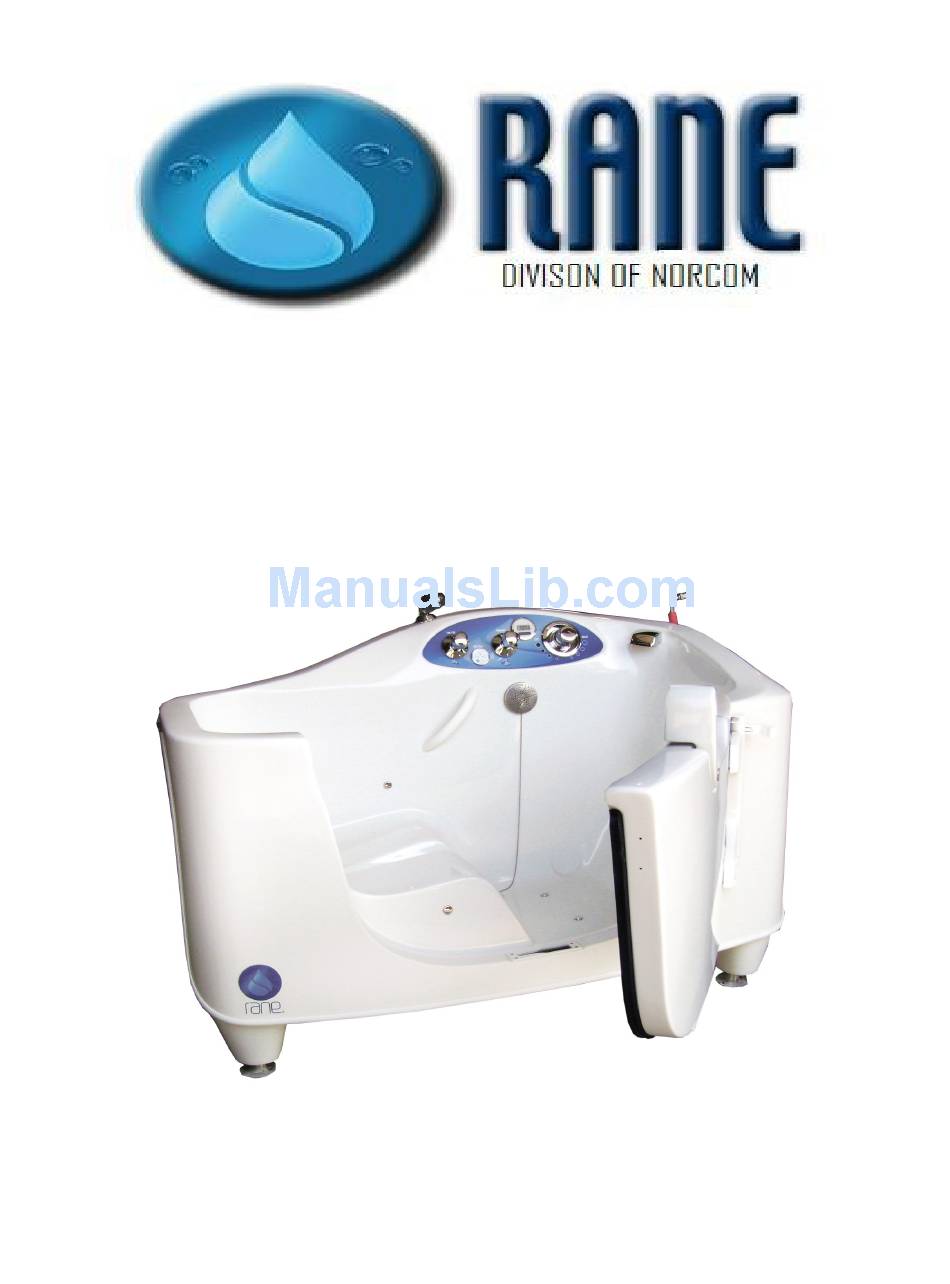

- Page 1 RK12 Bathing Tub Quick Reference Guide *Shown with optional equipment NOTHING’S MORE REFRESHING THAN RANE...
-
Page 2: Read And Follow All Instructions
INSRUCTIONS PERTAINING TO A RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY TO PERSONS READ AND FOLLOW ALL INSTRUCTIONS WARNING - When using this unit, basic precautions should always be followed, including the following: READ AND FOLLOW ALL INSTRUCTIONS. DANGER: To reduce the risk of injury, do not permit children to use this unit unless they are closely supervised at all times Use this unit only for its intended use as described in this manual. -
Page 3: Technical Specifications

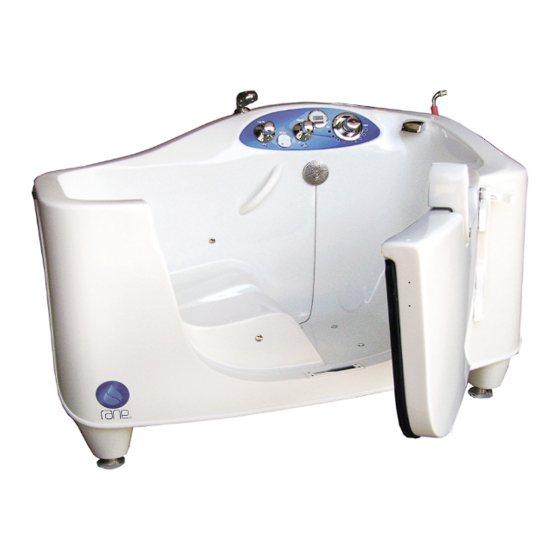

Section STANDARD UNIT: MODEL # RK12 Description: Model RK12 is a freestanding, 58-gallon side access bathing tub. Construction: The tub shell consists of a 3/16” thick fiberglass-reinforced polyester laminate. Critical areas are reinforced with a 1/4” thick core of end-grain balsa and additional layers of fortifying laminate. The sanitary gelcoat is an ISO/NPG type-finish. -
Page 4: Front View
19” If legs are extended and 42.5" tub is raised, adjust the dimensions accordingly 3.5" 7.5" 61.5" TOP VIEW 11" Note: To 30" 28" 33.5" Outside 22.5" Allow 41” for door swing ____________________________________________________________________________________________ RANE RK12 Page 2.1... - Page 5 SPACE REQUIREMENT TOP VIEW 75" Door hinge on right side of tub only. Verify placement and door swing before final placement of Allow for 13.5” for unit. Access panel swing Allow for 40” Door Swing ____________________________________________________________________________________________ RANE RK12 Page 2.2...
- Page 6 Pre-Installation Drawings and Dimensions Section Suggested Plumbing and Electrical Layout ____________________________________________________________________________________________ RANE RK12 Page 2.4...
-
Page 7: Installing The Tub
Installing the Tub Section The RK12 is designed to be installed as a freestanding unit, but can be built into an alcove. Several items of precaution should be taken during installation: USE THIS PRODUCT ONLY FOR ITS INTENDED USE AS DESCRIBED FURTHER IN THESE INSTRUCTIONS. - Page 8 (see below) and the hoses are not bent or kinked. The threaded connections are NOT “hose thread”, but rather “National Pipe Thread” (NPT). Make sure hose screen is present and inserted in hose end properly ____________________________________________________________________________________________ RANE RK12 Page 3.2...
- Page 9 NOTE: The thorough inspection and startup of the tub is required before first use. It is the installer’s responsibility to check for and tighten as necessary threaded connections on all parts of tub as part of this start-up procedure. ____________________________________________________________________________________________ RANE RK12 Page 3.3...
