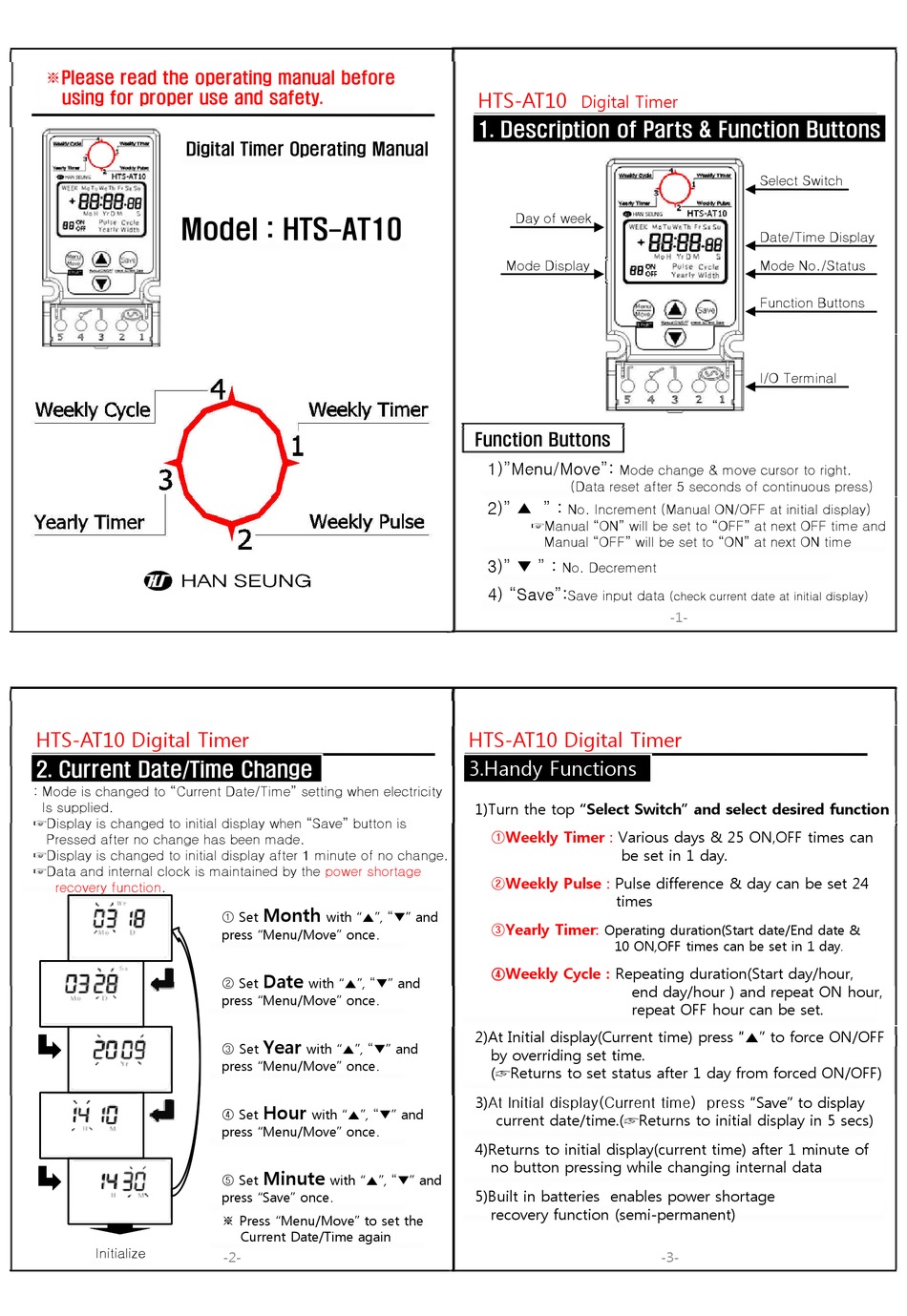

Han Seung HTS-AT10 Operating Manual

※Please read the operating manual before
using for proper use and safety.
Digital Timer Operating Manual
Model : HTS-AT10
HTS-AT10 Digital Timer

2. Current Date/Time Change

: Mode is changed to "Current Date/Time" setting when electricity
Is supplied.
☞Display is changed to initial display when Save button is ☞Display is changed to initial display when "Save" button is
Pressed after no change has been made.
☞Display is changed to initial display after 1 minute of no change.
☞Data and internal clock is maintained by the
recovery function.
Initialize
power shortage
Month
① Set with "▲", "▼" and
press "Menu/Move" once.
Date Date
② Set ② Set with "▲" "▼" and with ▲ , ▼ and
press "Menu/Move" once.
Year
③ Set with "▲", "▼" and
press "Menu/Move" once.
Hour
④ Set with "▲", "▼" and
press "Menu/Move" once.
Minute
⑤ Set with "▲", "▼" and
press "Save" once.
※ Press "Menu/Move" to set the
Current Date/Time again
-2-
HTS-AT10
Digital Timer
1. Description of Parts & Function Buttons
Day of week
Mode Display
Function Buttons
1)"Menu/Move":
Mode change & move cursor to right.
(Data reset after 5 seconds of continuous press)
2)" ▲ " :
No. Increment (Manual ON/OFF at initial display)
☞Manual "ON" will be set to "OFF" at next OFF time and
Manual "OFF" will be set to "ON" at next ON time
3)" ▼ " :
No. Decrement
4) "Save":
Save input data
HTS-AT10 Digital Timer
3.Handy Functions
1)Turn the top "Select Switch" and select desired function
①Weekly Timer : Various days & 25 ON,OFF times can
be set in 1 day.
②Weekly Pulse : Pulse difference & day can be set 24
times
③Yearly Timer:
Operating duration(Start date/End date &
10 ON,OFF times can be set in 1 day.
④Weekly Cycle : Repeating duration(Start day/hour,
end day/hour ) and repeat ON hour,
repeat OFF hour can be set.
2)At Initial display(Current time) press "▲" to force ON/OFF
by overriding set time.
(☞Returns to set status after 1 day from forced ON/OFF)
3)At Initial display(Current time) press "Save" to display
current date/time.(☞Returns to initial display in 5 secs)
4)Returns to initial display(current time) after 1 minute of 4)Returns to initial display(current time) after 1 minute of
no button pressing while changing internal data
5)Built in batteries enables power shortage
recovery function (semi-permanent)
Select Switch
Date/Time Display
Mode No./Status
Function Buttons
I/O Terminal
(check current date at initial display)
-1-
