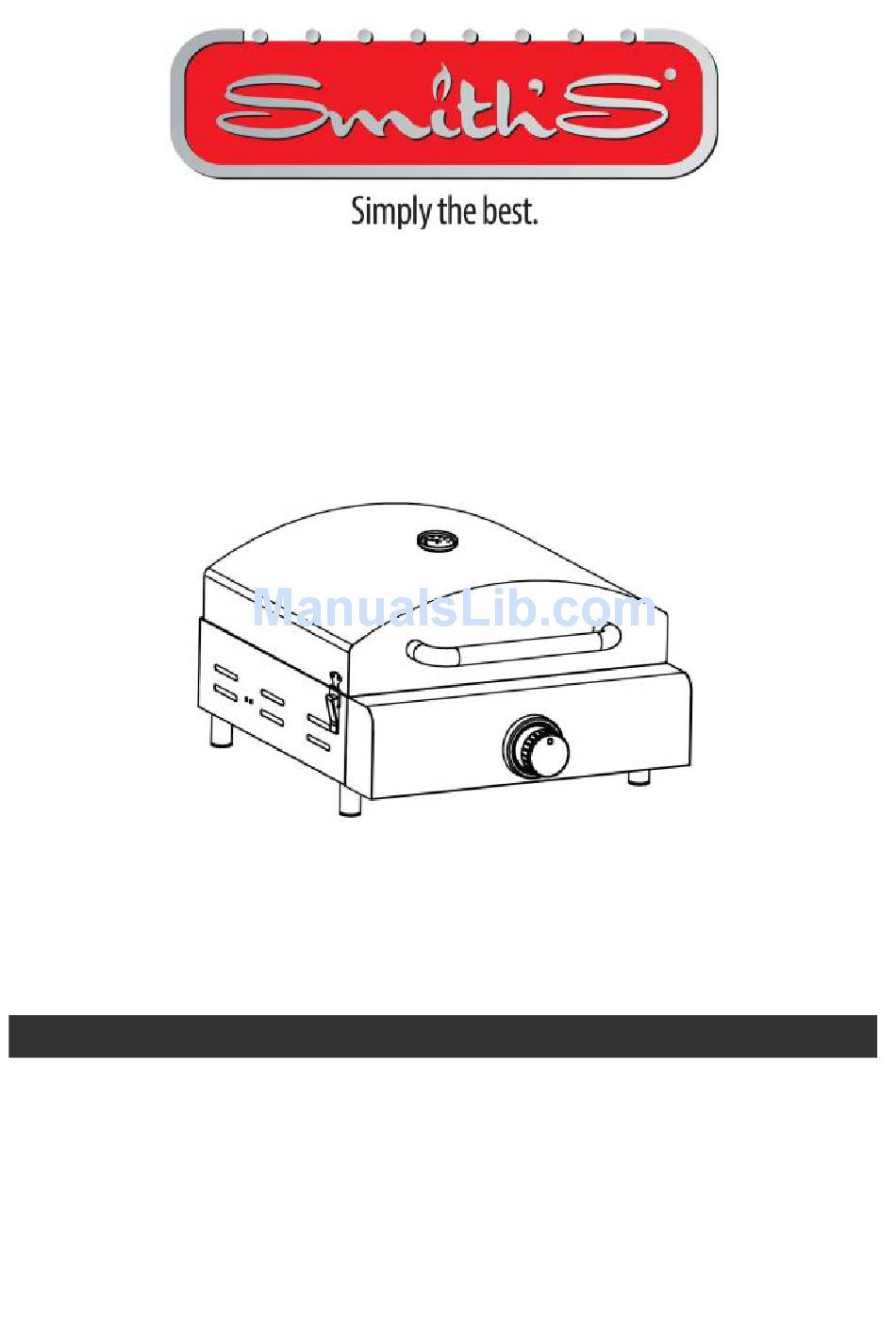

- Page 1 BBQS AND PIZZA OVENS 3 in 1 PORTABLE BBQ USER MANUAL AND INSTALL INSTRUCTION-...
- Page 2 USE OUTDOORS ONLY This appliance shall only be used in an above ground open-air situation with natural ventilation, without stagnant areas, where gas leakage and products of combustion are rapidly dispersed by wind and natural convection. Any outdoor enclosure in which the appliance is used shall comply with one of the following: An enclosure with walls on all sides, but at least one permanent opening at ground level and no overhead cover.
- Page 3 Gas Cylinder Safety Information • This appliance is designed to be used with a gas cylinder not exceeding (Australia 9KG) • The gas cylinder supply valve must be turned off when the appliance is not in use. • Gas cylinders must be stored outdoors, out of reach of children and must not be stored in a building, garage or any other enclosed area.
- Page 4 PLEASE DO - Use spanner to tighten all gas fittings - Check all gas hose and line connection for damage, cuts or cracks each time for using the appliance. - Always leak test with soapy water - Check all burners regularly for insect nets such as spiders, ants, etc. Nets are dangerous and need to be fully cleaned.
-
Page 5: Lighting The Appliance
or replace the gas leakage part or joint. - Retest after fixing the fault. Turn OFF the gas at the cylinder after testing. LIGHTING THE APPLIANCE 1. Open the lid and make sure the knob is in the OFF position. 2. - Page 6 1.DO NOT use stone over on an open flame 2. Avoid extreme temperature change to the stone. DO NOT place frozen foods on a hot stone 3. The stone is fragile and can break if bumped or dropped 4. Pizza stone is very hot during use and keep hot for a longtime after use. Please use it until it has cool down 5.
-
Page 7: Abnormal Operation
Burners not igniting properly Burners failing to remain alight Gas valves, which are difficult to turn TECHNIAL INFORMTION Appliance Name Outdoor Use Gas Pizza Oven Model No. PB430, PB304 Test Point Pressure: 2.75KPA Total Nominal 11.6 MJ/h Gas Consumption: Gas Type:... -
Page 8: Tools Required
EXPANDED VIEW AND PART LIST Description Temperature gauge Cast iron plate Pizza Stone Cooking grid Main body Grease tray Feet ASSEMBLY TOOLS REQUIRED * Philips screwdriver (not included) 1. Leg Assembly 2. Temperature gauge assembly... - Page 9 3. Pizza grid assembly 4. Cast iron plate assembly 5. Pizza Stone assembly 6. For Grease pan...
- Page 10 6. Clean the fire box bottom Connecting to gas tank 8. For lid...
- Page 11 SMITHS BBQs T/A Smiths Cooking Systems P/L 3 Barmedman Road Temora NSW 2666 Australia Ph: 61 2 69772700 Email: info@smithsbbq.com.au ABN: 18092300902 www.smithsbbqs.com.au...
