CONNECTIONS
◆
Getting started with Dapper Bass is easy!
Plug your bass cable into the INPUT jack and run
another cable from the OUTPUT (or XLR OUT )
jack to your amp/mixer/computer interface.
Here's how to use the I/O panel:
SIGNAL PATH
◆
XLR OUT(BALANCED)
OUTPUT
(UNBALANCED)
HOLD
BOOSTCOMP
MODULES (IN ORDER OF SIGNAL FLOW)
◆
First in line is a big, bright, fast and accurate tuner so you can play confidently in tune.
Hold the BOOST COMP module ON/OFF switch to enable the
When this module is activated, Dapper Bass will be MUTED; tap any footswitch to
deactivate this module.
The note name appears on the screen (the dot on the bottom right of the screen
stands for "sharp"), and the pitch accuracy is indicated by the LEDs.
FX LOOP
FOOTSWITCH
TUNER(MUTETUNING)
TUNER
OWNER'S MANUAL

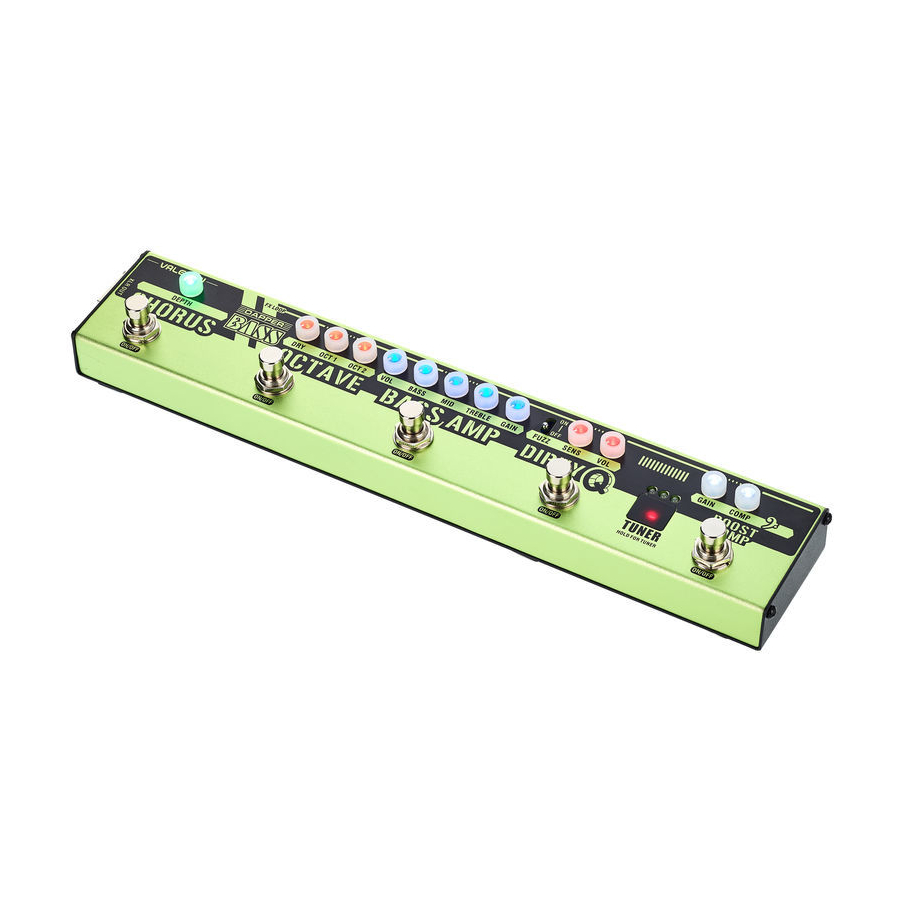

Dapper Bass is an all-in-one workhorse for bass players.
This strip has everything you need, plus some inspiration.
Please look over this manual to help you get the most out
of Dapper Bass.
SPECIFICATIONS
◆
Power Requirement: 9V DC center negative
Current Consumption: 85mA
Dimensions: 320mm(D) × 65mm(W) × 42mm(H)
Weight: 690g
BASS
BOOST
AMP
COMP
Pitch flat
.
Current note name
THRU
(PARALLEL OUT)
INPUT
In tune
Pitch sharp
Sharp ("#") symbol
Advertisement
Table of Contents
Summary of Contents for Valeton Dapper Bass
- Page 1 TUNER Hold the BOOST COMP module ON/OFF switch to enable the When this module is activated, Dapper Bass will be MUTED; tap any footswitch to deactivate this module. The note name appears on the screen (the dot on the bottom right of the screen stands for “sharp”), and the pitch accuracy is indicated by the LEDs.
-
Page 2: Ground Lift
Use the SEND and RETURN jacks to expand your board with other pedals. The FX LOOP point is positioned between the BASS AMP and the OCTAVE modules (see the Signal Path graphic above). Dapper Bass offers different outputs to run through bass amps, audio interfaces, mixers, and other gear, and all outputs can be used simultaneously: Use the THRU output jack to run through some parallel effects (rack processors, interfaces, etc.) or do some re-amping.
