Summary of Contents for carado BANFF 2018

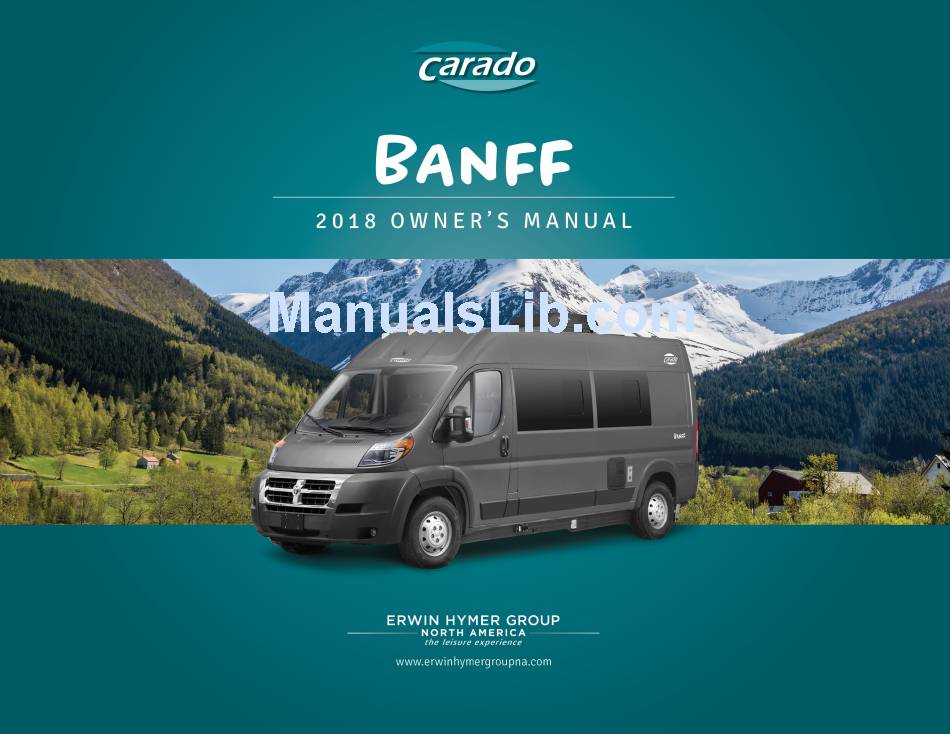

  • Page 1 © Erwin Hymer Group North America, Inc., R00...
  • Page 2: Table Of Contents

    Contents Introduction to Your Carado …….………………………………………………………………………………………………………………………………….. 7 Disclaimer ..........................................7 Copyright ..........................................7 References ..........................................8 Do’s and Dont's ........................................8 Symbol Legend ........................................8 Regulatory Warnings ....................................... 8 Information, Cautions and Warnings ..................................9 Before You Head Out ......................................11 Coming Home ........................................
  • Page 3 Appliances ..........................................34 Refrigerator ........................................... 34 Microwave Oven........................................34 Propane Cooktop ........................................35 Water Heater ......................................... 35 Outside Your Carado ......................................36 Awning ..........................................36-37 Driver’s Side Compartments – Outside Connections and Dumping.………………………………………………………………………………………..38 Monitor Panel ......................................... 39 Inverter Charger ........................................40 Shore Power ..........................................
  • Page 4 Utilities ........................................... 44 Fresh Water ........................................... 44 City Water ..........................................44 Water Pump .......................................... 45 Black/Grey Tank ........................................45 Indicators ..........................................45 Heating and Cooling ......................................46-47 Thermostat ..........................................46 Air Conditioning ........................................46 Propane Furnace ........................................47 Electrical System ........................................48 Coach Batteries ........................................
  • Page 5 Fire Extinguisher ........................................55 Inside Rope Lighting Controls ....................................56 Inflation Kit ..........................................57 Optional Tow Hitch and Tow Rating ..................................58 Maintenance ..........................................59 Tires ............................................59 Cargo Carrying Capacity ......................................59 Owner Maintenance Checks ....................................60-62 When You Stop For Fuel or Weekly ..................................60 Every Other Week ........................................
  • Page 6 HOWTOs……………………………………………………………………………………………………………………………See Manufacturers Website © Erwin Hymer Group North America, Inc., R00...
  • Page 7: Introduction To Your Carado

    Congratulations on the purchase of your Carado and welcome to the Erwin Hymer Group North America family. The information included in this manual is meant to help and guide you using your vehicle so that you know how to properly use the many functions your Carado has to offer.
  • Page 8: References

    All images used in this manual remain the property of Erwin Hymer Group North America. They are for illustrative purposes only and may or may not be representative of the upfit in your Carado. Contact Erwin Hymer Group North America for alternate licensing arrangements if you want to use or distribute this manual commercially.
  • Page 9: Information, Cautions And Warnings

    Turn the TV off and stow it while the vehicle is in motion. The flat screen TV should not be stored inside the Carado in cold temperatures. Remove it to reduce the chance of damage from the cold. Check the Owner's Manual for the TV for storage and operating temperatures.
  • Page 10 The BBQ quick disconnect is regulated to 10 P.S.I. Please ensure that all devices connected to this are either rated for high "pressure" or have their own regulator. Many grills sold in the United States are "low pressure" Propane (1/2 P.S.I.) and will require an additional regulator to step the pressure down to a useable level. If hooked directly to the BBQ quick disconnect they will be a severe fire hazard.
  • Page 11: Before You Head Out

    This unit has a 12VDC, 110VAC and optional 36-volt solar system. These systems need to be disconnected Servicing before working on them. Before You Head Out Your new Carado is ready to go with just a little bit of preparation. To prepare for your first trip, you should: • Read this manual. •...
  • Page 12: Coming Home

    Coming Home When you come home, there are a few maintenance tasks you should do to get your Carado ready to go for next time. Refer to other sections in this manual for the procedures listed here. On your way home, dump the black waste water tank at a convenient facility. See the HOW TO’s: Waste Water Dumping section for a concise description of the procedure to do this.
  • Page 13 Turn off and clean out the refrigerator and prop the door open to let it air out. • If you plan on storing your Carado for an extended period, turn off the Battery Disconnect Switch and the Inverter Switch on your monitor panel to keep from draining your AGM or Optional Lithium battery(ies).
  • Page 14: Coming Home

    30AMP Shore Power Cord Coach Coaches Monitor Panel with Optional EcoTrek Lithium Battery Connect Port. Battery Disconnect Switch Switches Located on Drivers Side Shown. Wall. Picture 14.4 Carado Inverter Switch in the On Position. © Erwin Hymer Group North America, Inc., R00...
  • Page 15: Interior Living Space

    Interior Living Space Cabinets Your Carado is equipped with cabinet latches which prevent the door from opening while the vehicle is in motion. The push buttons on the cabinet latches toggle from latched (button in) to openable (button out) by pressing the button.
  • Page 16 Cabinets Continued Picture 16.1 Picture 16.2 Apply Moderate Upward Pressure and Adjustments to the Cabinet Hinges Will Gentle Outward Pressure with One or Two Allow for Tightening and to Loosen the Fingers on the Bottom Corners of the Door Friction Required to Open and Close the to Open a Stuck Cabinet.
  • Page 17: Galley Cabinets

    Galley Cabinets Picture 17.1 Picture 17.2 Picture 17.3 Kitchen Galley Area Cabinetry. Kitchen Galley Area Cabinetry with Slide Kitchen Galley Area Cabinetry with Slide Out Drawer for Silverware or Other Use Out Drawer for Dinnerware, Food Storage or Open. Other Use Open. Picture 17.4 Picture 17.5 Picture 17.6...
  • Page 18: Galley Cabinets

    Galley Cabinets (Continued) Picture 18.1 Pass Through Storage View. Immediately above the refrigerator in the kitchen galley is a slide out drawer for silverware and other uses. (Picture 17.2 on Previous Page.) Directly under the sink is a pull-out storage drawer which can be used for storage for food, dinnerware or other uses. (Picture 17.3 on Previous Page.) Immediately beneath the pull out upper storage drawer there is a second door below, within this area is the grey water tank for the kitchen galley and water lines going to and from this water tank.
  • Page 19: Lights

    Lights The 12V oval ceiling lights are individually controlled and are turned on by lightly pushing the lens area of a given light until you hear a click, then release. (Picture 19.1) NOTE: The battery disconnect switch must be on for any of these lights to work. These are LED lights which consume very little electricity. (Pictures 19.2 and 19.3) Picture 19.2 Picture 19.3...
  • Page 20: Tables And Leg Mounts

    Table Legs and Leg Mounts The table(s) can be set up to use either for front seating or galley lounge area for dining, computer, gaming, or other recreational use. (See Pictures and Further Description on Page 21 and 22.) The table legs are stored in the rear passenger side between the bathroom and rear chassis door. (Picture 20.3) The leg keys into a T-Nut fitting in the slot of the floor plate(s).
  • Page 21: Mid Lounge Table Setup

    Table Storage and Mid Lounge Table Setup The table tops are stored in the rear doors. The table tops are stored in the compartments with 2 white plastic clips to hold the tables in place. Picture 21.1 Picture 21.2 Picture 21.3 Large Table Storage in Rear Drivers Door.
  • Page 22: Captain's Seats

    This vehicle will not drive unless the front seats are forward facing and locked. The vehicle will not go into gear. The two captain's seats in the front of your Carado are adjustable fore-and-aft by pulling up on the metal bar under the front seats. (Picture 22.2) Always return the seats to the forward-facing position before driving.
  • Page 23: Captain's Seats

    This vehicle will not drive unless the front seats are forward facing and locked. The two captain's seats in the front of your Carado are adjustable fore-and-aft by pulling up on the metal bar under the front seats. (Picture 23.2) To create a front lounge area, first ensure that the seats are fully upright by rotating the dial on the outside of the seat base and bringing the backs of the seats forward.
  • Page 24: Window Treatments And Rear Windows

    Slide Covering. Use Metal Bar. * Your Carado Drivers Side Windows and Passengers Side Sliding Glass Door Come with Dual Window Coverings. (Picture 24.1) Extend the Bugscreen side from the right by sliding the covering all the way to the left until the 2 track guides meet. (Picture 24.2) The nightshade curtain blocks airflow.
  • Page 25 Closed Position Provides Privacy Anywhere Within the Coach. When Using the Restroom/Shower or Note: Use Aluminum Bar to When Your Carado is Occupied. Raise/Lower Shade. Apply Even Steady Pressure on Both Sides of Shades for Easy Operation. © Erwin Hymer Group North America, Inc., R00...
  • Page 26: Ventilation

    Ventilation Your Carado is equipped with 2 ceiling mounted ventilation fans; 1 in the washroom area and the other in the kitchen galley area. (Picture 26.1 shows ventilation fan in washroom area.) The fans have covers that must be raised by pushing up on the curved handle. (Picture 26.2) Raise the cover, then push the red button to turn the fans on.
  • Page 27: Sleeping Facilities

    Sleeping Facilities Your Carado has twins (76”x27”x2) and king bed (76”x74”) configurations. Follow the steps on Pages 27 & 28 to setup your sleeping facilities. Picture 27.1 Picture 27.2 Picture 27.3 All Cushions Shown on the Side Sofas Will Remove the Backrest Cushions to Create Remove the Drivers Side Backrest and be Used to Construct Your Beds.
  • Page 28 Twin and King Bed Instruction (Continued): Picture 28.2 Picture 28.1 Picture 28.3 Use the 4 Backrest Cushions to Completed King 76”x74” Bed View from Completed King 76”x74” Bed View from Supplement Seating Cushions to Front of Coach. Rear of Coach. Complete Setup.
  • Page 29: Bathroom Facilities

    Using the Toilet The bathroom in your Carado contains a macerating toilet. (Picture 29.1) To flush the toilet, use your foot to press the foot pedal located at the bottom left of the toilet to expel the waste, then release the foot pedal.
  • Page 30: Shower Setup

    Shower Setup: The Carado comes with a rear washroom/toilet area. It takes several steps to create the washroom. An outline to those steps is as follows: *Please refer to pictures starting on page 31.* The sliding shower door is held in place by a clear plastic strap and button snap. (Picture 31.1 Next Page) Open the storage cabinet door (left side) directly opposite the sliding shower door to reveal catch magnets on the inside of the door at the top and bottom.
  • Page 31: Shower Setup Outside And Inside View

    Shower Setup: (Outside View) Picture 31.1 Picture 31.2 Picture 31.3 Sliding Shower Door in Closed Position Left Side Cabinet Door Opened. Sliding Shower Door Secured to with Clear Strap and Button Snap. Sliding Shower Door Catch Magnets at Cabinet Magnets Catch. Top and Bottom of Door.
  • Page 32 Shower Setup (Inside View): Picture 32.1 Picture 32.2 Picture 32.3 Step One: Open and Fully Extended Step Two: Unsnap Sliding Shower Step Three: Extend Shower Curtain Upper Cabinet Door. Door and Slide Until Magnets on Door Until Washroom is Fully Contained. Meet Magnets on Cabinet Door.
  • Page 33: Shower Light, Sink And Pull Handle

    Shower Light, Sink and Pull Handle: Picture 33.1 Picture 33.2 Picture 33.3 Washroom Light and Ventilation Fan. Washroom Sink in Storage Position. Washroom Sink in Open Position and Switch for Washroom Light Is Located on Release with Push Tab. Sink/Shower Faucet in Closed Position. Rear Wall in Seating Area.
  • Page 34: Appliances

    Refrigerator The refrigerator is a 12-volt DC compressor model. (Picture 34.1) When shore power is available, the inverter charger provides enough power to run the fridge without discharging the batteries. * Refer to the appliance manual for operation details. Refrigerator Latch Picture 34.1 Picture 34.2 Picture 34.3...
  • Page 35: Propane Cooktop

    Water Heater Your Carado is equipped with a propane fired water heater. The water heater has a 6.0 Gallon capacity manufactured by Suburban, located on the Driver’s Side of the Vehicle. (Picture 35.2) For detailed information on this appliance consult the Suburban Owner's Manual.
  • Page 36: Outside Your Carado

    Awning Your Carado has a roll-up awning. The awning is extended with a manual crank. (Picture 36.1) The awning has two support struts that must be used to support the awning while extended. These are secured to the two attachment points on the side of the Carado. (Picture 36.2) Awnings are susceptible to damage from wind, for this reason the awning should never be left extended when you are away from the vehicle.
  • Page 37 Awning (Continued) *Refer to the awning manual for the proper way of securing the awning supports to the attachments. The following pictures will show you how to operate your awning. It will also show you how to release the support legs, attach to coach and secure your awning legs. Picture 37.1 Picture 37.2 Picture 37.3...
  • Page 38: Driver's Side Compartments - Outside Connections And Dumping

    Grey/Black Tank. * Note 12V Battery Disconnect Must be in On Position for The driver's side of your Carado contains multiple components to use in various situations. Macerator Button to Operate. * The grey/black macerator dump hose is housed in a compartment on the driver’s side between the front and rear axles under the running board.
  • Page 39: Monitor Panel

    The battery disconnect switch supplies 12-volt battery power to the 12-volt lights and other cabin appliances. This switch must be on for any of the 12-volt electrical devices to work. To avoid discharging the batteries when your Carado is not in use, remember to turn off two switches: Picture 39.1 •...
  • Page 40: Inverter Charger

    A/C, refrigerator, microwave and power to your 110 outlets. * (Picture 39.3 on Previous Page) ü NEVER USE THE SWITCH LOCATED ON THE INVERTER TO TURN IT ON OR OFF. THIS SWITCH IS THERE FOR MAINTENANCE PURPOSES ONLY AND SHOULD ONLY BE ACCESSED BY A CERTIFIED CARADO SERVICE FACILITY. Shore Power Shore power is the name for power supplied by a utility company that you plug into to provide external power to your coach.
  • Page 41: Awning Light

    Awning Light On the monitor panel, the top right switch is the awning light switch. Press the top of the button to turn the lights on, and the bottom to turn them off. These are LED lights and use very little power. (Picture 40.1 on Previous Page) Water Pump Switch The lower left switch of the five switches is the water pump switch.
  • Page 42: Distribution Panel

    AC Breaker Flip the cover to the right and note the sticker under the cover with the identifying information on each breaker. When storing the Carado for the winter, turn off the battery disconnect switch, the inverter and all circuit breakers in this panel.
  • Page 43: Propane System

    Propane System Propane (LP) Tank Typical View Your Carado is equipped with a propane system which, when properly handled and maintained will provide trouble and worry-free operation of your propane fueled appliances. The propane tank is located on the passenger side of the vehicle behind the flexible running board. (Picture 43.1) To access the tank for filling and to turn the main tank shutoff valve off and on simply reach behind the bar to complete these tasks.
  • Page 44: Utilities

    Utilities Just like your house, your Carado has fresh water, electricity, waste water disposal, heating, and cooling systems. In the Carado, these systems are self-contained and travel with you. Your vehicle should be reasonably level to allow normal operation of these systems.
  • Page 45: Water Pump

    Water Pump To use the water in the tank, you need to turn on the water pump. (Picture 44.1 on Previous Page) Check correct valve position for use with fresh water tank and correct position when hooked up to an exterior water supply. Black/Grey Tank The bathroom sink and shower water drains into the black/grey water tank.
  • Page 46: Heating And Cooling

    AC for extended periods of time on battery power alone. • If your Carado is parked on an incline, it is possible for condensate to leak into the living space. If this happens, park in a more level location.
  • Page 47: Propane Furnace

    Heating and Cooling (Continued) Propane Furnace The propane furnace is controlled by the thermostat located on the passenger’s side rear wall. (Picture 47.1) The furnace requires propane and 12- volt power. The furnace can be used without shore power or generator use. Keep the aisle in front of the furnace vent clear of any obstructions when using the furnace to allow air circulation.
  • Page 48: Electrical System

    Coach Batteries The coach batteries in your Carado are either sealed AGM batteries or optional Lithium Battery cells. DO NOT ATTEMPT TO OPEN THEM! There is no user maintenance needed on these batteries. *Tampering with your batteries will void the Carado warranty on them.* Plug your coach in to external shore power whenever possible to ensure your coach batteries are in a fully charged state.
  • Page 49: Optional Equipment

    Optional Solar Panels The optional solar panels will charge your Carado batteries when a sufficient light source is available. The solar charge controller is installed at the factory for the type of panels and batteries installed on your Carado, and Erwin Hymer Group NA strongly recommends that you make no adjustments or changes to the charge controller or its programming.
  • Page 50: Optional Hdtv And Blu-Ray Player

    The optional HDTV with Blu-Ray player are located on the passenger’s side of the coach, just aft of the sliding side door. The Blu-Ray system is located in the first overhead cabinet. (Picture 50.1) The television is on a swivel mount that allows viewing from anywhere within your Carado as well as from outside your Carado. (Picture 50.2) (Picture 50.3) (* Note: Do not use the TV in the outside coach position during inclement weather.
  • Page 51: On Board 120-Volt Ac Power

    The power button on your 2000W inverter must always stay in the off position. If the switch is turned to the on position your inverter will be running continuously draining your battery levels. It also overrides the inverter switch that is located on your monitor panel of your Carado.
  • Page 52: Shore Power

    Shore Power The shore power connection is through the shore power cord, stored in the rear large compartment drawer in the washroom/shower area. (Picture 52.1) The shore power cord connect port is located in the driver’s side running board next to the running boards that house the dump hose and black/grey gate valve.
  • Page 53: Outlets

    These outlets also protect other outlets in the Carado. If you are not getting power from an outlet, check and reset this button on the GFCI outlet itself if needed.
  • Page 54: Alarms And Warnings

    Alarms and Warnings Propane and CO Alarm Your vehicle has been equipped with a combination propane leak and carbon monoxide detection device for your protection. It is located slightly above floor level on the seating area next to the vents towards the front of the coach. (Picture 54.1) Be sure the detector is operating while using your vehicle.
  • Page 55: Fire Extinguisher

    Fire Extinguisher Your Carado comes equipped with a dry chemical fire extinguisher suitable for all fires. It is attached to the passenger seat base on the backside facing towards the passenger side storage compartment. (Picture 55.1) Before every trip, check to see that the needle on the dial is in the green range. If not, replace the fire extinguisher.
  • Page 56: Inside Rope Lighting Controls

    Inside Rope Lighting Controls Your Carado comes equipped with dimmable 12V rope lighting. (Picture 56.1) The 1 button power control is located at the top of your monitor panel within a fading black to white circle above the letter M. (Picture 56.2) The 12V rope system will not operate unless you have your Battery Disconnect switch in the On position.
  • Page 57: Inflation Kit

    Your Carado will come with a 12V OEM Dodge portable tire inflation kit. This kit will be included in your coaches’ accessory box. (Picture 57.2) Carado recommends that you have roadside service replace a flat or leaking tire or that you stop at a nearby tire shop as soon as practical.
  • Page 58: Optional Tow Hitch And Tow Rating

    Optional Tow Hitch and Tow Rating Tow Hitch Your Carado may come with a Class III hitch with 350 pounds of tongue weight capacity. It is equipped with a 4-way wiring hook-up. (Picture 58.1) Your Carado can tow a maximum amount of 3,500lbs.
  • Page 59: Maintenance

    Maintenance Tires See the automotive chassis manufacturer's owner's manual and documents for tire warranty information. Inflation pressure information is located on the driver’s door post. The current RAM ProMaster® manual recommends checking tire pressures regularly, at least every other week and before a long trip.
  • Page 60: Owner Maintenance Checks

    Owner Maintenance Checks Listed below are vehicle maintenance checks and inspections that should be performed by the owner or qualified service technician at the indicated intervals. Any adverse conditions should be brought to the attention of your dealer or qualified service technician for expert service advice as soon as possible.
  • Page 61: At Least Twice A Year

    Wax and polish and protect exterior surfaces. The wheels are coated aluminum and there is no bare aluminum on the vehicle, so do not use aluminum polish on any surface of your Carado. © Erwin Hymer Group North America, Inc., R00...
  • Page 62: Other Maintenance Checks

    To prevent water from entering your vehicle, avoid spraying water directly into exterior vents or grills. Do not use a power washer to clean your Carado because damage to the paint, removal of decals and water leaks will result. Hand washing or commercial car washes accommodating large vehicles are the best way to keep your Carado clean and shiny.
  • Page 63: Specifications

    B pillar (right side of the door frame, near the latch). These specifications refer to the baseline Carado upfits. Options and upgrades may change these specifications.
  • Page 64: Warranty

    A new Erwin Hymer Group (EHG) motorhome has a limited warranty by EHG. This limited warranty covers the repair or replacement, of any part of your new Carado Banff in which a nonconformity in materials or workmanship appears during normal use, maintenance or service within the limited warranty period, subject to the limitations and exclusions described below in “What This Limited Warranty Does Not Cover”.
  • Page 65 The original retail purchaser is responsible for submitting, or having the vehicle dealer submit, a Carado Limited Warranty Registration form to EHG within 30 days of the date of delivery. This limited warranty is not valid if the Carado Limited Warranty Registration form is not sent to EHG within 30 days after the date of delivery.
  • Page 66 How to Get Service To obtain warranty service for your Carado, call toll free 7 days a week 844-496-3735. Our customer care specialist can help answer questions regarding our products and services, provide information about warranty coverage and maintenance issues, help you arrange for service under other manufacturer warranties, and locate a Carado authorized dealers and service centers in your area.
  • Page 67: Registration

    Registration Please send the following form in or email the information to http://www.roadtrek.com/warranty-information-and-registration/ when you purchase Your new Carado should be registered on your behalf by your dealer. However if that step is overlooked, the please visit your Carado. the following link to insure that you are properly registered with EHGNA: http://www.caradorv.com/warranty...
  • Page 68: Aftermarket Disclaimer

    The compatibility of aftermarket systems and components should be researched thoroughly either with the dealer or manufacture as they may interfere with the performance of Erwin Hymer Group North America (Roadtrek, Hymer, Carado etc.) recreation vehicle systems and components, further affecting the warranty of the vehicle as designed.
  • Page 69: Regulatory Notices

    U.S. Department of Transportation Washington, DC 20590 You can also obtain other information about motor vehicle safety from the NHTSA Hotline. HOW TO’s: For access to more information on how to perform general functionalities of your Carado, please go to: http://www.Caradorv.com/support https://www.caradorv.com...
