HIKVISION DS-3WF01C-2N Installation Manual

Installation manual
Special Wireless Bridge For Elevator
*Please be sure to install and use in pairs.
Package Contents: Device of Elevator Room DS-3WF01C-2Nx1; Device of IP Camera DS-3WF01C-2Nx1; DC48V 0.25A POE Adapterx2; Plastic tie x4; Certificate x1;
Instructions x1

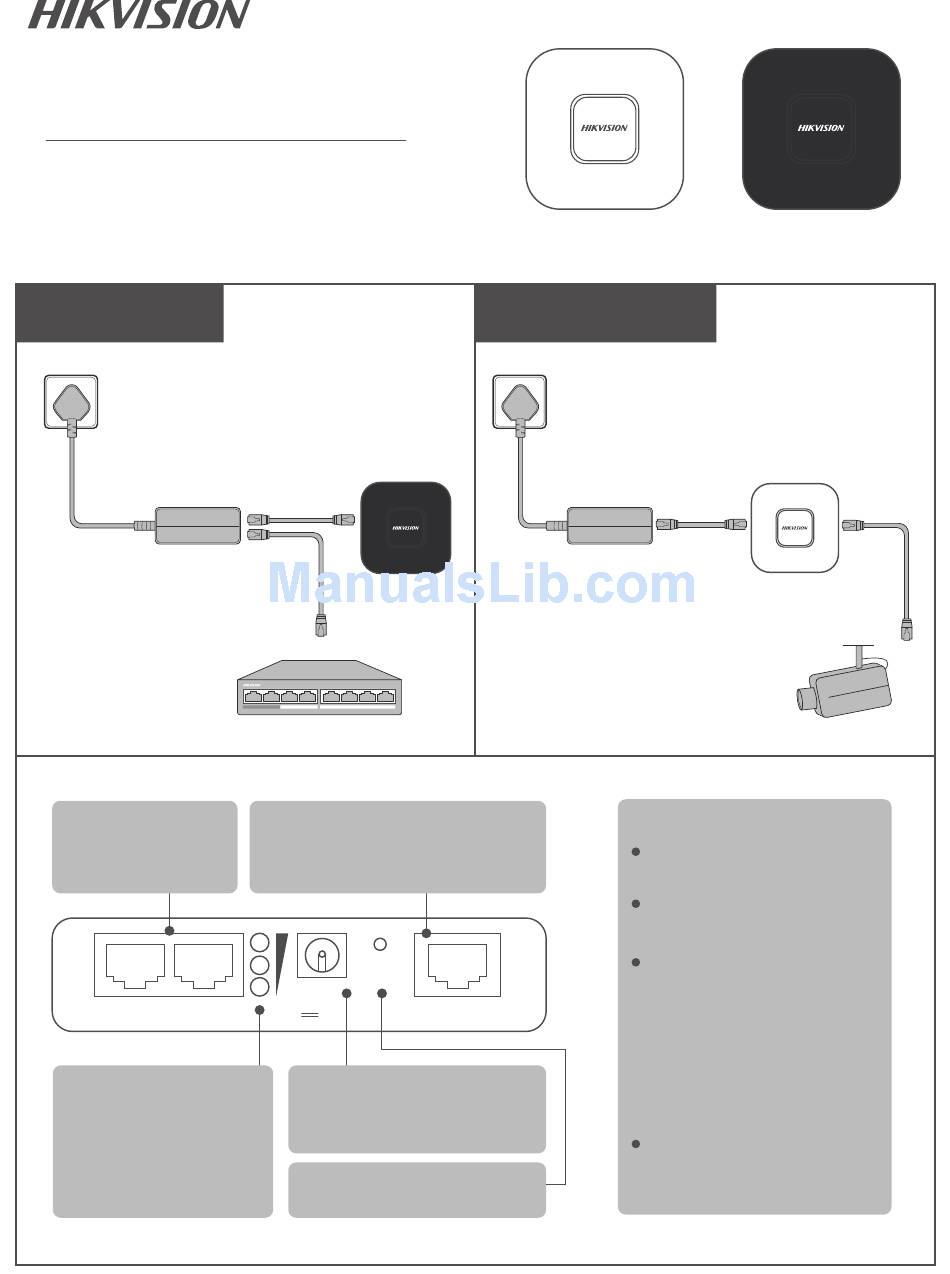

Device of Elevator
Room connection
POE Adapter
LAN1/LAN2 Port: The Port
used to connect camera,
information distribution screen
and other network equipment
LAN2 LAN1
The signal level LED
Green, yellow and red lights on: the
wireless signal level is strong.
Yellow and red lights on: the
wireless signal level is medium.
Red light on: the wireless signal
level is weak or no signal.
POE
LAN
1 2 3 4 5 6 7 8
LAN UPLINK
POE Port: The port used to connect the POE port
of POE Adapter, the green LED will light when the
port is connected to the POE Adapter. The yellow
LED will light when the device connect to the
camera or computer successfully.
Reset
12V
12V DC power supply port:
The default power supply mode is POE, if
you want to use 12V DC power supply, you
must provide 12V DC Adapter for yourself.
Reset Button:
User can restore the device to factory
settings
Device of IP Camera
connection
POE Adapter
POE
POE
Configuration and Debugging
Device of Elevator Room
Default IP: 192.168.1.35
User name: admin Password: 12345
Device of IP Camera
Default IP: 192.168.1.36
User name: admin Password: 12345
Trouble shooting for Network failure,
video transmission is not smooth
1.Please confirm that the devices are installed in
pairs. The serial numbers of the Elevator Room
device and the IP Camera device should be
consistent.
2.Make sure the devices are aligned and visible,
there is not a bunker between the devices.
3.Make sure the LED and the signal level LED are
working properly.
Other questions, please
technical support
400-700-5998
LAN1/LAN2
contact
