BIG CHILL 30" INDUCTION RANGE`

INSTRUCTION AND INSTALLATION MANUAL

VERSION 1 – 006272016

Table of Contents

Need help?

Do you have a question about the 30” series and is the answer not in the manual?

Questions and answers

Summary of Contents for Big Chill 30” series

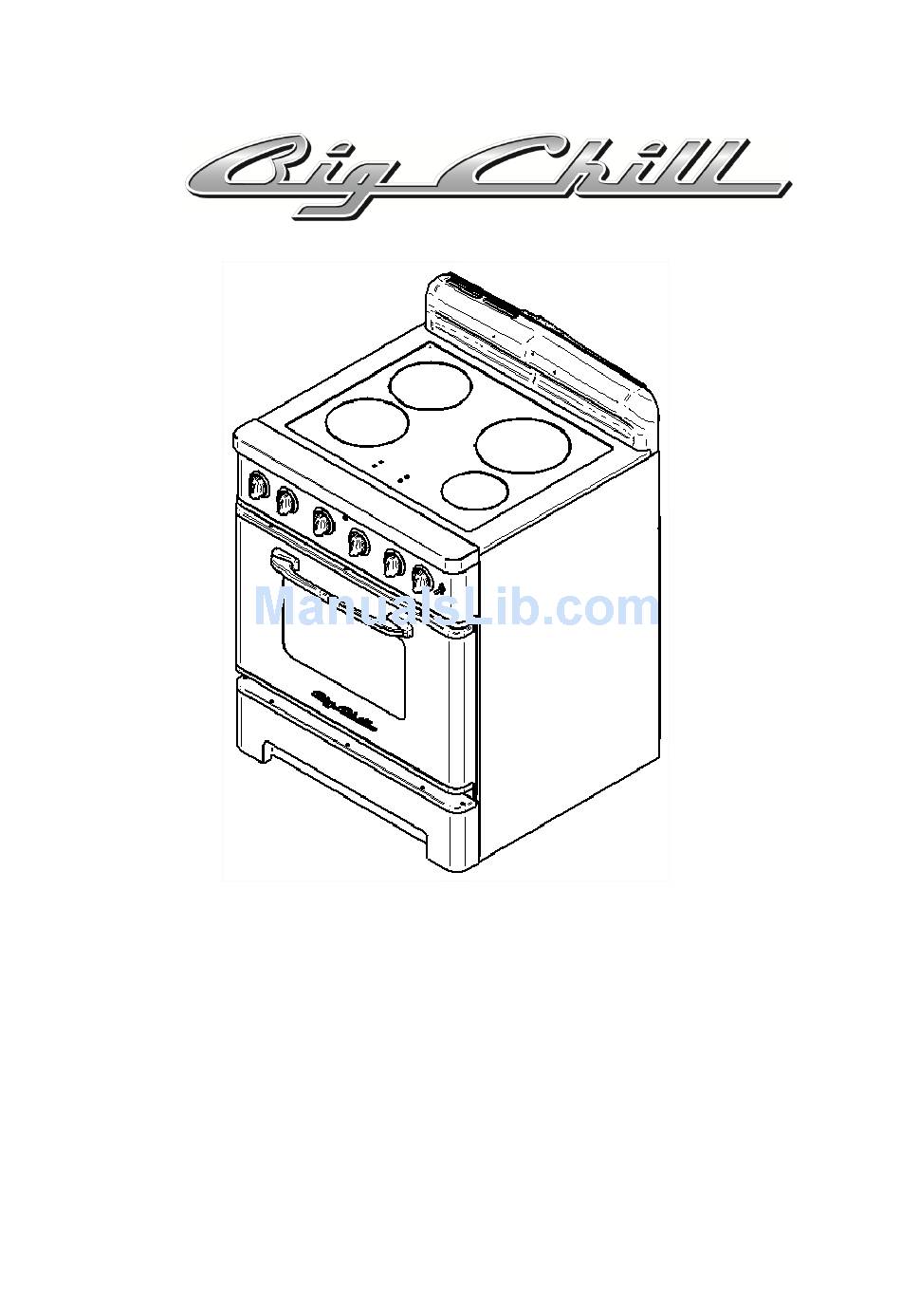

Page 1 BIG CHILL 30” INDUCTION RANGE` INSTRUCTION AND INSTALLATION MANUAL VERSION 1 – 006272016...
Page 2 MANAGEMENT. WE HOPE YOU ENJOY YOUR NEW APPLIANCE AND WE THANK YOU AGAIN FOR BELIEVING IN OUR PRODUCT AS MUCH AS WE DO. THE STAFF AND TEAM AT BIG CHILL! BIG CHILL INDUCTION RANGE INSTRUCTION AND INSTALLATION MANUAL Page 2...
Page 3: Table Of Contents
DESCRIPTION ................................10 USE OF THE APPLIANCE ..............................12 MAINTENANCE AND CLEANING ............................ 21 TROUBLESHOOTING GUIDE ............................23 INSTALLATION INSTRUCTIONS............................25 .................................27 LECTRICAL CONNECTION WARRANTY ..................................... 28 PERFORMANCE CHECKLIST ............................29 BIG CHILL INDUCTION RANGE INSTRUCTION AND INSTALLATION MANUAL Page 3...
Page 4: Safety Instructions
To avoid risk of electrical shock, personal injury, verify the unit has been properly grounded in accordance with local codes, with National Electric Code (NEC), ANSI/NFPA 70 or updated edition NOTE: WARRANTY SERVICE MUST BE PERFORMED BY AN AUTHORIZED SERVICE AGENT. BIG CHILL INDUCTION RANGE INSTRUCTION AND INSTALLATION MANUAL Page 4...
Page 5: Important Instructions
Among these areas are (identification  Wear Proper clothing – Loose-fitting of areas – for example, the cook-top or hanging garments should never be and surfaces facing the cook-top). worn while using the appliance. BIG CHILL INDUCTION RANGE INSTRUCTION AND INSTALLATION MANUAL Page 5...
Page 6 Do NOT cover an entire oven rack racks. with material such aluminum foil. It will block airflow throughout the oven and may cause undesired results. Aluminum foil linings may trap heat, creating a fire hazard. BIG CHILL INDUCTION RANGE INSTRUCTION AND INSTALLATION MANUAL Page 6...
Page 7 IMPORTANT INSTRUCTIONS Cooktop  CAUTION – Do not store items of except suggested manual. Improper installation of interest to children in cabinets these liners may result in a risk of above a range or on the backguard of a range – children climbing on electric shock, or fire.
Page 8 IMPORTANT INSTRUCTIONS USING THE APPLIANCE  Switch the heating zones off after the glass surface. In case of untimely engaging or residual heat, this one using. may heat, melt or even burn.  Keep an eye on the cooking using ...
Page 9 THE USE OF EITHER POOR QUALITY POTS OR ANY INDUCTION ADAPTOR PLATE FOR NON-MAGNETIC COOKWARE RESULTS IN A WARRANTY BREACH. IN THIS CASE, THE MANUFACTURER CANNOT BE HELD RESPONSIBLE FOR ANY DAMAGE CAUSED TO THE COOKTOP AND/OR ITS ENVIRONMENT. BIG CHILL INDUCTION RANGE INSTRUCTION AND INSTALLATION MANUAL Page 9...
Page 10: Description
2300 W 3700 W 110 mm Front right 160 mm 1400 W 2200 W 80 mm * The given power may change according to the dimensions and material of the pan BIG CHILL INDUCTION COOKTOP INSTRUCTION AND INSTALLATION MANUAL Page 10...
Page 11: Technical Characteristics
Technical characteristics Oven : Total Power Heating element Nominal Power* 2500 W 1800 W 4350 W Bottom 2500 W BIG CHILL INDUCTION COOKTOP INSTRUCTION AND INSTALLATION MANUAL Page 11...
Page 12: Use Of The Appliance
If the pan is not adapted to the induction cooktop , the display will show  Pot flatness For better efficiency and function, pot should always have a flat bottom. BIG CHILL INDUCTION COOKTOP INSTRUCTION AND INSTALLATION MANUAL Page 12...
Page 13 F and run the oven for 1 hour allow oven to cool completely. Insert oven rack guides and racks. Your oven is now ready for use. Use of cooktop : BIG CHILL INDUCTION COOKTOP INSTRUCTION AND INSTALLATION MANUAL Page 13...
Page 14 Automatic cooking Keep warm Maintain automatically 150° F (70°C). Keep warm Maintain automatically 201°F (94°C). Residual heat The indicated heating zone is hot Lock Knobs are locked Error message Electronic failure BIG CHILL INDUCTION COOKTOP INSTRUCTION AND INSTALLATION MANUAL Page 14...
Page 15 The cooking continues with the power level set before. After use, switch the heat element off by bringing back the knob to Do not leave the pan detection active. BIG CHILL INDUCTION COOKTOP INSTRUCTION AND INSTALLATION MANUAL Page 15...
Page 16: Booster Function
You can only activate the boost power on one of the left hand side and one of the right hand side cooking zones at the same time. BIG CHILL INDUCTION COOKTOP INSTRUCTION AND INSTALLATION MANUAL Page 16...
Page 17 Turn the knob to the right and select the desired power level (For example here are blinking, showing the function is activated. 3. The power is automatically adjusted, so the pot gets to temperature faster. Touching the knob will cancel the function. BIG CHILL INDUCTION COOKTOP INSTRUCTION AND INSTALLATION MANUAL Page 17...
Page 18 3. To unlock repeat the same operation (Turn the front left and rear left knob simultaneously to the left and hold for 3s.) BIG CHILL INDUCTION COOKTOP INSTRUCTION AND INSTALLATION MANUAL Page 18...
Page 19 For example, do not touch this zone while shows on display The symbol disappears when the heating zones can be touched without danger. BIG CHILL INDUCTION COOKTOP INSTRUCTION AND INSTALLATION MANUAL Page 19...
Page 20 Operations of oven BIG CHILL INDUCTION COOKTOP INSTRUCTION AND INSTALLATION MANUAL Page 20...
Page 21: Maintenance And Cleaning
(2 cm). This is essential to guaranty correct ventilation.  Never put flammable objects (ex. sprays) into the drawer situated under the cooktop. The eventual drawers must be resistant to heat. BIG CHILL INDUCTION COOKTOP INSTRUCTION AND INSTALLATION MANUAL Page 21...
Page 22 Ensure that the pan is dry and surface thoroughly. clean and that there is no dust on your ceramic cooktop or on the pan. The use of rough saucepans will scratch the surface BIG CHILL INDUCTION COOKTOP INSTRUCTION AND INSTALLATION MANUAL Page 22...
Page 23: Troubleshooting Guide
The display area shows [ U400 ] connection and reconnect the cooktop.  The cooktop is not connected to the network. Check the The display area shows [ Er47 ] connection and reconnect the cooktop. BIG CHILL INDUCTION COOKTOP INSTRUCTION AND INSTALLATION MANUAL Page 23...
Page 24 Fan cover is bent Make sure oven of cool and fan if off, then remove debris. Tighten screws Call for replacement fan cover. Fan (behind control panel) is running when oven is turned BIG CHILL INDUCTION COOKTOP INSTRUCTION AND INSTALLATION MANUAL Page 24...
Page 25: Installation Instructions
Oven has not cooled to 200 degrees F or below. Let oven cool down. 7. INSTALLATION INSTRUCTIONS  Fitting – installing Warning  Do not change or alter the appliance. BIG CHILL INDUCTION COOKTOP INSTRUCTION AND INSTALLATION MANUAL Page 25...
Page 26 The use of inappropriate guards can cause accidents.  Standard installation dimensions BIG CHILL INDUCTION COOKTOP INSTRUCTION AND INSTALLATION MANUAL Page 26...
Page 27: Electrical Connection
 The appliance should be connected using a multipolar circuit breaker.  If the appliance is not fitted with an accessible plug, disconnecting means must be incorporated in the fixed installation, in accordance with the installation regulations. BIG CHILL INDUCTION COOKTOP INSTRUCTION AND INSTALLATION MANUAL Page 27...
Page 28: Warranty
Initial Seven (7) Day Limited Warranty. Big Chill warrants that all cosmetic components of its Products will, under normal use and service, be free from defects in materials and workmanship for a period of seven (7) calendar days from the date of delivery (the "Warranty Period") to the original retail purchaser.
Page 29: Performance Checklist
In no event will Big Chill’s liability for any defective Product exceed the purchase price thereof. This exclusive remedy will not be deemed to have failed of its essential purpose so long as Big Chill’s is willing and able to repair and/or replace defective Products in the manner prescribed herein or to provide a refund if, in Big Chill’s...
Page 30 • Polarized outlet • No GFCI Installation • Proximity to cabinets • Controls Level • • Burner knobs Ventilation system • • Thermostats Read User Manual • Review safety instructions BIG CHILL INDUCTION COOKTOP INSTRUCTION AND INSTALLATION MANUAL Page 30...
