Summary of Contents for Supero AOC-MTG-b2T

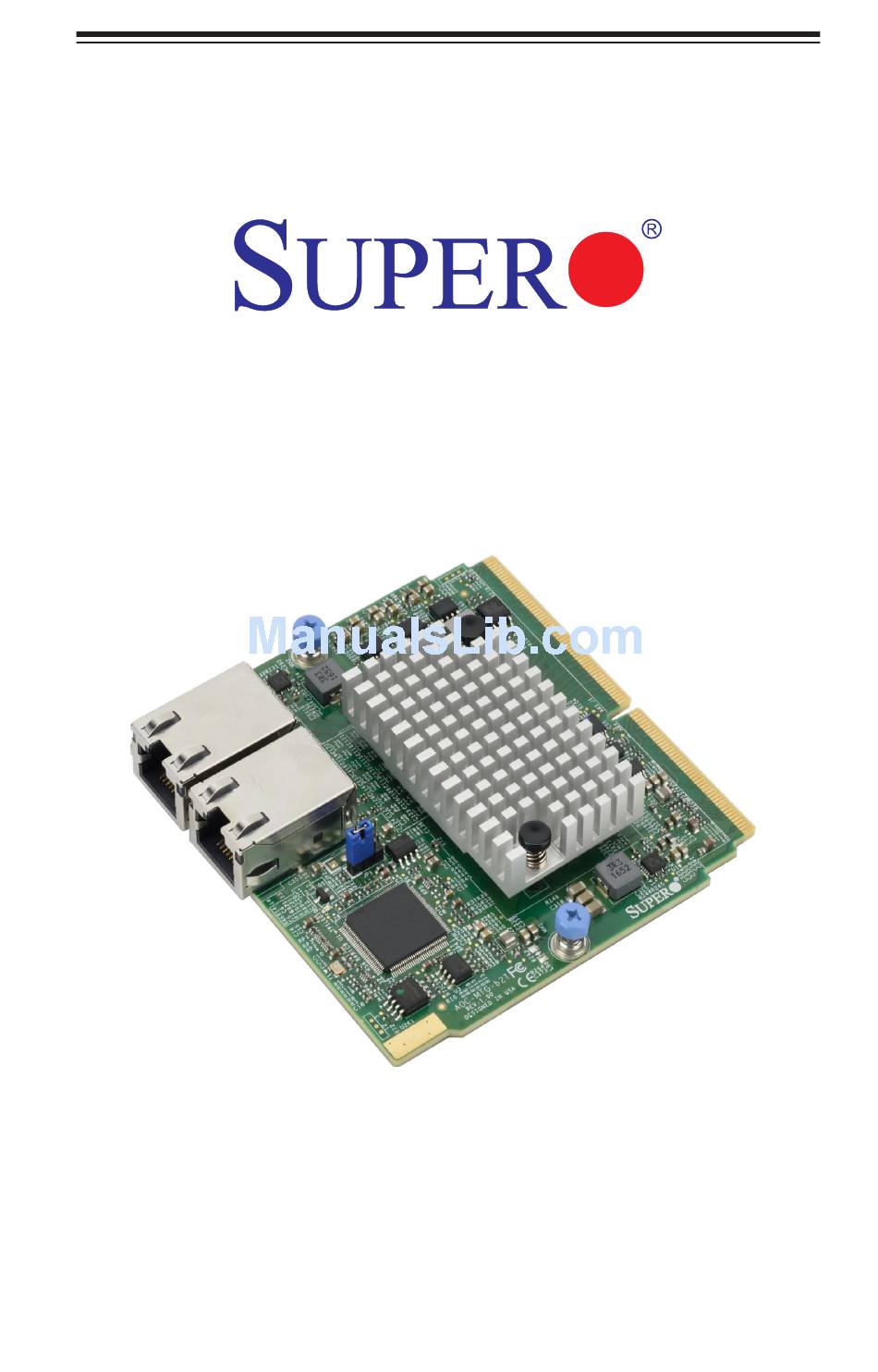

- Page 1 Preface AOC-MTG-b2T User's Guide Revision 1.0...
- Page 2 AOC-MTG-b2T Add-on Card User's Guide The information in this User’s Manual has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, and makes no commitment to update or to keep current the information in this manual, or to notify any person or organization of the updates.
- Page 3 This user's guide is written for system integrators, IT professionals, and knowledgeable end users. It provides information for the installation and use of the AOC-MTG-b2T add-on card. An Important Note to the User All graphic images and layout drawings shown in this user's guide are based upon the latest PCB revision available at the time of publishing of this user's guide.
- Page 4 AOC-MTG-b2T Add-on Card User's Guide Naming Convention Naming Convention for SIOM Network Adapters A O C – M TG – b 2 T – 2 3 – 5 6 8 Character Representation Options Product Family AOC: Add On Card Form Factor...
-
Page 5: Contacting Supermicro
Preface Contacting Supermicro Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web Site: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML 's-Hertogenbosch, The Netherlands Tel:... -
Page 6: Table Of Contents
AOC-MTG-b2T Add-on Card User's Guide Table of Contents Preface Chapter 1 Overview Overview ......................1-1 About this Add-on Card ................... 1-1 Key Features ....................1-1 Technical Specifications .................. 1-2 General ......................1-2 Host Interface ....................1-2 Networking Features ..................1-2 Stateless Offload Features ................ -
Page 7: Chapter 1 Overview
Broadcom TruFlow technology that enables users to reduce CPU loads and increases VM densities. In addition, NPAR (NIC Partitioning) technology pro- vides flexible connectivity for different networking requirements. The Supermicro AOC-MTG-b2T is a truly exceptional 10GbE Ethernet Adapter for your continuously growing cloud applications and datacenters. Key Features The product highlights of this add-on card include the following: •... -
Page 8: Technical Specifications
AOC-MTG-b2T Add-on Card User's Guide Technical Specifications General • Super I/O Module (SIOM) Form Factor • Broadcom BCM57416 dual-port 10Gbps controller • Dual RJ45 connectors • TruFlow Technology Host Interface • PCI-E 3.0 (8GT/s) • MCTP over SMBus • Function Level Rest (FLR) support •... -
Page 9: Stateless Offload Features
Chapter 1: Overview Stateless Offload Features • TCP, UDP, IPv4, IPv6 checksum offload • Large Send Offload • Receive Segment Coalescing • TCP Segmentation Offload • Large Receive Offload • Receive Side Scaling (RSS) • Transmit Side Scaling (TSS) NIC partitioning (NPAR) •... -
Page 10: Manageability
AOC-MTG-b2T Add-on Card User's Guide Manageability • Network Controller Sideband Interface (NC-SI) • PXE and iSCSI boot • Asset Management with Thermal Sensors Flow Processingt • Exact/Wildcard Match Flow Lookup • VLAN insertion/deletion • NAT/NAPT • Mirroring Data Center Bridging •... -
Page 11: Physical Dimensions
Storage humidity: 90% non-condensing relative humidity at 35°C Note: This product is intended to be used with Supermicro server systems or motherboards as an integrated solution package. Compliance/Operating Environment The AOC-MTG-b2T add-on card is compliant with the following environmental regulations: • RoHS Compliant 6/6, Pb Free •... - Page 12 AOC-MTG-b2T Add-on Card User's Guide Notes...
-
Page 13: Chapter 2 Hardware Components
Chapter 2: Hardware Components Chapter 2 Hardware Components Add-On Card Image and Layout The AOC-MTG-b2T Image JLAN2 JLAN1 Broadcom BCM 57416 The AOC-MTG-b2T Layout 1. Broadcom BCM 57416 3. LAN1 RJ45 Port1 2. Jumper JP1 4. LAN2 RJ45 Port2... -
Page 14: Jumpers And Connectors
Default Setting Note I2 Address Mode 1-2: ARP Mode 2-3: Fixed, 0x30 The following major components are installed on the AOC-MTG-b2T: 1. Broadcom BCM57416 10GbE Controller 2. Dual RJ45 LAN (LAN 1/LAN 2) Ports 3. Super IO Module Networking Card JLAN2... -
Page 15: Lan Ports And Lan Led Indicators
Chapter 2: Hardware Components LAN Ports and LAN LED Indicators LAN Ports There are two LAN ports on the AOC-MTG-B2T. These LAN ports support connec- tion speeds of 10Gbps. Use RJ45 type LAN cables. The AOC-MTG-b2T Image LAN Port LED Indicators Each LAN port has two LEDs to indicate speed and data activity. -
Page 16: Chapter 3 Installation
Chapter 3: Installation Chapter 3 Installation Static-Sensitive Devices Electrostatic Discharge (ESD) can damage electronic com ponents. To avoid dam- aging your add-on card, it is important to handle it very carefully. The following measures are generally sufficient to protect your equipment from ESD. Precautions •... -
Page 17: Before Installation
AOC-MTG-b2T Add-on Card User's Guide Before Installation Before you install the add-on card, follow the instructions below. 1. Power down the system. 2. Unplug the power cord. 3. Use industry-standard anti-static equipment such as gloves or a wrist strap and follow the precautions on page 3-1 to avoid damage caused by ESD. - Page 18 Chapter 3: Installation Follow this step to install the add-on card if your system does not support a swap- pable bracket. Insert the SIOM card in the motherboard and then install the moth- erboard in the chassis. An internal bracket comes with the SIOM card 1U chassis SKU.
- Page 19 AOC-MTG-b2T Add-on Card User's Guide Follow the steps below to install the add-on card into your system that supports a swappable bracket. The add-on card must be installed in the swappable bracket before it can be installed in your system 1.
-
Page 20: Installing Drivers On Windows Os
Chapter 3: Installation Installing Drivers on Windows OS Follow the steps below to install the drivers needed for your Windows OS support. The controller comes with a driver on the CD-ROM CDR-NIC. 1. Run the CDR-NIC. (If you do not have a product CD-ROM, download drivers from the Supermicro Support Website and then transfer them to your system.) 2. - Page 21 AOC-MTG-b2T Add-on Card User's Guide Installing InfiniBand Drivers for the Linux Operating System 1. Prerequisites: Install the following: yum –y install libibverbs* infiniband-diags perftest qperf librdmacm-utils yum –y install groupinstall “InfiniBand Support” 2. From the CDR-NIC LAN driver CD or FTP site, go to the following directory: Broadcom >...
-
Page 22: Windows Drivers
Chapter 3: Installation echo “/usr/local/lib” >> /etc/ld.so.conf ldconfig –v For more driver installation information, please refer to Intel Support website. Windows Drivers Follow the steps below to install the drivers on the Windows operating system. Installing Drivers for the Windows Operating System 1. - Page 23 AOC-MTG-b2T Add-on Card User's Guide Notes...
