Operating Manual

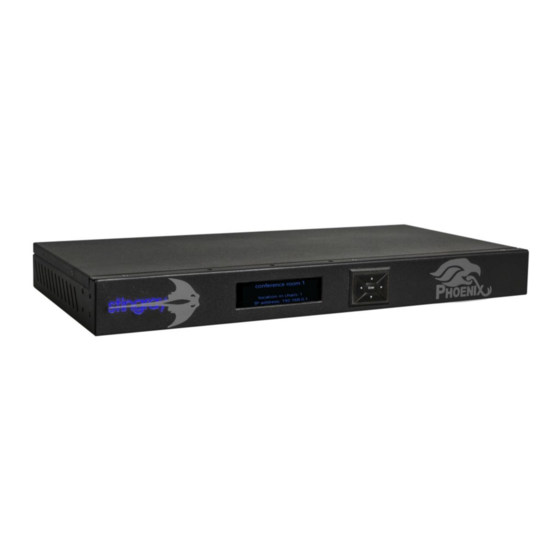

MT700 Stingray Distributed Array Mixer
© 2018 Phoenix Audio Technologies

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Stingray and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Phoenix Audio Stingray

Summary of Contents for Phoenix Audio Stingray

  • Page 1 Operating Manual MT700 Stingray Distributed Array Mixer © 2018 Phoenix Audio Technologies...
  • Page 2 MT700 Stingray Distributed Array Mixer Operating Manual Phoenix Audio Technologies Please read this manual carefully before using the Phoenix Audio Technologies MT700 Stingray Distributed Array Mixer. For additional assistance and updates please refer to our website www.phnxaudio.com. To contact Phoenix Audio Technologies support, send an email to support@phnxaudio.com.

  • Page 3: Table Of Contents

    Table of Contents All-In-One Audio Smart Mixer ....................4 MT700 Stingray Overview ......................5 Specifications ....................... 5 Using the MT700 Stingray Mixer ....................7 Mixer Settings ........................ 8 Four-way Bridging ......................14 Using the Dashboard Interface ....................15 Microphone Mixer Utility ......................17 Microphone Mixer Settings ..................

  • Page 4: All-In-One Audio Smart Mixer

    Used on its own or in tandem with video, the MT700 Stingray Mixer offers a simple solution to the complex requirements of today’s professional confe rencing spaces.

  • Page 5: Mt700 Stingray Overview

    • Four (4) directional buttons and one • Mixer and network information (1) center button The LCD readout displays the: • Device name • Device chain location number • Local IP address to which the device is connected Operating Manual – MT700 Stingray Phoenix Audio Technologies...
  • Page 6 Operating Manual – MT700 Stingray Phoenix Audio Technologies...

  • Page 7: Using The Mt700 Stingray Mixer

    Each MT700 Stingray is equipped with four (4) amplified loudspeaker outputs that can push four (4) 8Ω Ω loudspeakers with 15 watts of power. You can network up to 15 MT700 Stingray mixers into a single daisy chain with up to 15 individual zones. Additionally, you can assign up to four (4) auxiliary or podium microphone inputs per zone, and play back input using sound reinforcement via the room’s loudspeakers.

  • Page 8: Mixer Settings

    Mixer Settings To configure the MT700 Stingray Mixer, select from the seven options on the menu-access screen. When ready to make a selection, press either the center [ENTER] keypad button, or the keypad’s rightward directional [>] or downward directional [v] button. To return to a previous screen press the leftward directional [<] or upward directional [^] button.
  • Page 9 The unit mixes input from any networked secondary mixer(s) and transmits the signal upward in the daisy chain to its primary mixer, The primary mixer mixes in its microphone input automatically and transmits the Operating Manual – MT700 Stingray Phoenix Audio Technologies...
  • Page 10 3. Microphone input setting Use the microphone input setting to control individual microphone sensitivity within a group of microphones. To help set audio levels, the MT700 Stingray Mixer detects microphone sensitivity and displays it graphically. Use the directional keypad on the LCD screen to select and isolate a microphone.
  • Page 11 (4) four separate volume levels: ▪ ▪ Level of signal sent to far end ▪ ▪ Local loudspeakers – primary mixer output 1 and 2 ▪ ▪ Local loudspeakers – primary mixer output 3 and 4 Operating Manual – MT700 Stingray Phoenix Audio Technologies...
  • Page 12 6. General settings Configure general settings to: o Restore the MT700 Stingray Mixer settings to the factory default o Manually disconnect the dashboard interface to pair a new device Operating Manual – MT700 Stingray Phoenix Audio Technologies...
  • Page 13 Selecting restore factory default prompts you with a message confirming your intention to reset the MT700 Stingray Mixer. Use display brightness to select from one of six brightness levels, which defaults to the highest setting, six. Display timeout allows you to...

  • Page 14: Four-Way Bridging

    Four-way bridging The MT700 Stingray Mixer offers four-way bridging of local, USB, analog and SIP signals. Bridging transmits microphone settings to all interfaces simultaneously while allowing you to adjust loudspeaker levels locally. Operating Manual – MT700 Stingray Phoenix Audio Technologies...

  • Page 15: Using The Dashboard Interface

    Using the Dashboard Interface Use an IP address assigned to the MT700 Stingray Mixer to access its dashboard interface via a browser on a device connected to the local network. Using a browser to access the dashboard gives you remote access to the Stingray settings. The browser interface also provides access to more precise options and settings that are unavailable via the LCD menu.
  • Page 16 The device setup screen shows all MT700 Stingray Mixers connected to the primary mixer’s IP address. Select a mixer to modify its name, assign primary or secondary status, and edit primary parameters. Use the primary parameters to adjust microphone sensitivity and loudspeaker master volume level, set line-input balance and volume levels, and designate podium or auxiliary input.

  • Page 17: Microphone Mixer Utility

    Microphone mixer settings control input from up to four microphones and four lines in. Each microphone input produces a single, beamforming audio output with noise cancellation, echo cancellation, and automatic gain control. Operating Manual – MT700 Stingray Phoenix Audio Technologies...

  • Page 18: Microphone Mixer Settings

    • Microphone Tab – Adjust microphone sensitivity for all microphones attached to MT700 Stingray Mixer microphone inputs. This master control applies one sensitivity setting to all microphone inputs. There is no sensitivity setting for individual microphones. Operating Manual – MT700 Stingray...
  • Page 19 Line Tab – Each line input has its own, individual control and may be set to mute, podium or auxiliary. Hardware plugged into these lines is not beamformed, though the signal receives all other DSP processing. Operating Manual – MT700 Stingray Phoenix Audio Technologies...
  • Page 20 ▪ Noise cancellation ▪ Echo cancellation ▪ Automatic gain control Also use this setting to balance the local loudspeakers, and adjust secondary and send-out levels. Operating Manual – MT700 Stingray Phoenix Audio Technologies...
  • Page 21 The mute setting silences the line o The message “not set” indicates that a line is disabled Operating Manual – MT700 Stingray Phoenix Audio Technologies...

  • Page 22: Line Mixer Utility

    Line Mixer Utility Operating Manual – MT700 Stingray Phoenix Audio Technologies...

  • Page 23: Line Mixer Settings

    Line Tabs – Each line input has its own setting. Select podium, auxiliary or mixer. The message “not set” indicates that a line is not functional. The line mixer setting concentrates a voice signal using beamforming technology. Unless you use the mixer setting, a signal is not beamformed. Operating Manual – MT700 Stingray Phoenix Audio Technologies...
  • Page 24 • Use the auxiliary setting for audio input that does not require noise cancellation, echo cancellation, or automatic gain control. This setting is for media input like music, Operating Manual – MT700 Stingray Phoenix Audio Technologies...
  • Page 25 Additionally, all connected microphones must be the same model. To select a podium microphone or auxiliary input you must use the line mixer on an MT700 Stingray Mixer that is set to primary. Operating Manual – MT700 Stingray Phoenix Audio Technologies...

  • Page 26: Expanded Audio Coverage With Daisy Chaining

    It is a convenient way to adapt to changes in a conferencing space. Connect up to 15 MT700 Stingray Mixers in a daisy chain using the two (2) RJ45 ports located on the back of the mixer labeled LINK DOWN and LINK UP. For best results, use only CAT6 or CAT7 shielded cables.
  • Page 27 LINK UP to connect a secondary mixer to another secondary mixer or to a primary mixer that precedes it in its chain. When you change the status of an MT700 Stingray Mixer from secondary to primary, any subsequent secondary mixers automatically inherit the settings assigned to its primary mixer.
  • Page 28 In the illustrations that follow, each numeral represents a single MT700 Stingray Mixer. To configure a large room like the one represented here, program primary settings into the first mixer, and leave mixers 2, 3, 4, and 5 set to secondary (default). For the audio algorithms to properly functioning, all connected microphones to the microphone mixer inputs must be the same make and model.
  • Page 29 16) to select primary or secondary mixer status. Before assigning primary status to an MT700 Stingray Mixer, first connect the mixer to an intended communication mode – SIP, USB, or analog – then pre-select its primary settings, and use the browser dashboard interface to access the admin settings and name the mixer.

  • Page 30: How To Create Zones

    How to Create Zones To establish a daisy chain correctly, first you must understand and plan your MT700 Stingray Mixer daisy-chain configuration. The order in which you place an MT700 Stingray Mixer in a chain affects whether the unit is connected to other mixers in the chain, or is split off into a separate zone.
  • Page 31 1. In this illustration, five (5) MT700 Stingray Mixers are grouped into three (3) zones, referred to here as Zones A, B, and C. Zone A is assigned to rooms 1 and 2. Zone B is assigned to rooms 3 and 4. Zone C is assigned to room 5 only. Configure the first primary mixer for room 1, and a secondary mixer without primary settings for room 2.
  • Page 32 Zone B. To convert to this configuration from the configuration represented in illustration 1, switch the MT700 Stingray Mixer for room 2 to primary status, and the mixers for rooms 3 and 5 to secondary status. Leave the mixer for room 1 set to primary.
  • Page 33 3. In this illustration, room 1 remains isolated as Zone A, rooms 2 and 3 are grouped together to form Zone B, and rooms 4 and 5 are grouped together to form Zone C. To establish Zone C, set the mixer for room 4 to primary status. Operating Manual – MT700 Stingray Phoenix Audio Technologies...
  • Page 34 Zone B, and rooms 4 and 5 are grouped together to form Zone C. To configure the zones in this way, set the MT700 Stingray Mixer for room 2 to secondary, the mixer for room 3 to primary, and leave the mixers for rooms 4 and 5 set to primary and secondary status, respectively.
  • Page 35 When daisy chaining more than one MT700 Stingray Mixer to cover multiple rooms, follow these guidelines: 1. The mixer in the first, primary position controls all other secondary mixers in the chain.

  • Page 36: Zoning Quick Reference

    Assigning secondary status to an MT700 Stingray Mixer does not erase automatically any primary settings previously programmed into it. When you assign primary status to an MT700 Stingray Mixer then later switch its status to secondary, the secondary mixer automatically inherits all settings programmed into the primary mixer.

  • Page 37: Setting Up The Sip Client

    LAN settings Remote control • Voice over IP Restore defaults Logging Signaling protocols Restart system Recording Telnet Dialing Media streaming Voice Line settings Services Volume settings • Advanced applications Date and time Operating Manual – MT700 Stingray Phoenix Audio Technologies...

  • Page 38: Limited Manufacturer's Warranty

    Section No. 4. 1. Who may use this limited warranty? Phoenix Audio Technologies, located at address 16 Goodyear, Suite 120, Irvine, California 92618 (“we”, “us”, “our”, or its derivations) extends this two- (2-) year limited product warranty (this “limited warranty”) only to the consumer who originally purchases the product to which this...
  • Page 39 We can choose to: • Repair the product or defective, malfunctioning, or otherwise failing parts in the product Operating Manual – MT700 Stingray Phoenix Audio Technologies...
  • Page 40 Any controversy or claim arising out of or relating in any way to this purchase or attempted purchase of this limited warranty directly from us shall be brought on an individual, and not on a class-action basis, shall be exclusively subject to binding arbitration, which shall be administered Operating Manual – MT700 Stingray Phoenix Audio Technologies...
  • Page 41 Phoenix Audio Technologies 16 Goodyear, Ste 120 Irvine, CA 92618 (818) 937-4779 http://www.phnxaudio.com Operating Manual – MT700 Stingray Phoenix Audio Technologies...
