Microscan IB-3 PC Quick Start Manual

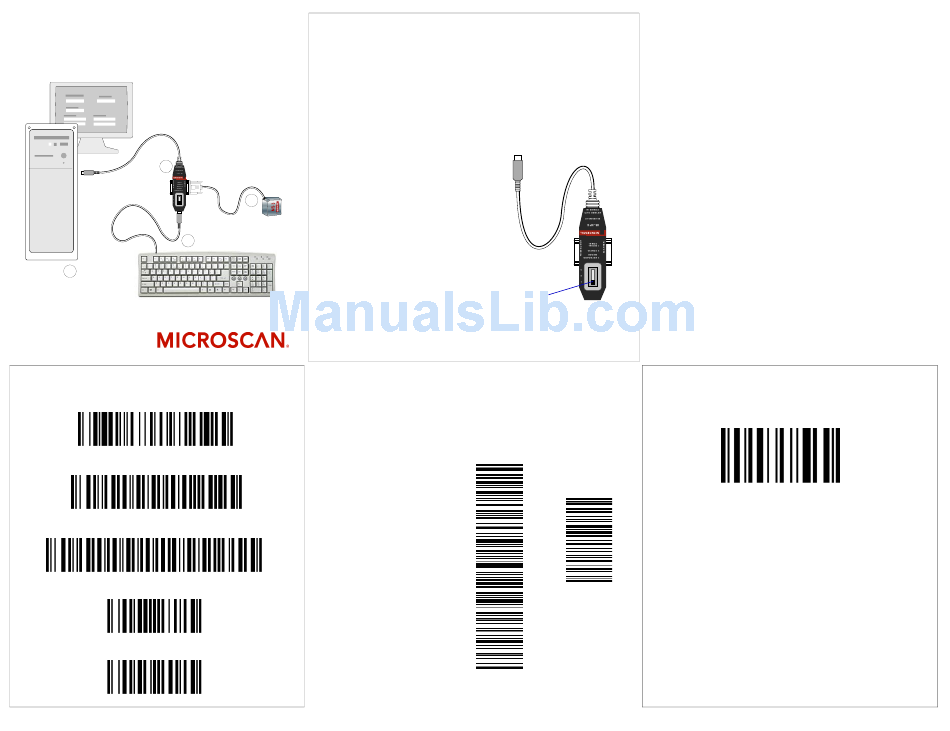

Quick Start Guide, IB-3 PC
Setup for Keyboard Wedge
1
KEYBOARD IN
3
4
83-210039 Rev C
MS-3 Laser Scanner Configuration Symbols
1. Enable configuration mode.
2. Enable Continuous Read 1.
3. Set 5 second timeout.
4. Enable all symbologies (no beep on this one).
5. Save for power-on.
Required Hardware
1. IB-3 PC, P/N FIS-0001-0030G
2. MS-3 Laser Scanner
3. Customer-supplied keyboard
4. Host computer
Steps for Connection and Startup
1. Power-off your host computer.
2. Set the IB-3 PC switch to
position 1.
3. Connect the scanner (2)
and the keyboard (3) to
2 the IB-3 PC as shown.
4. Plug the IB-3 PC cable
directly into the host com-
puter's (4) keyboard port.
5. Power-on host computer.
6. Open a word processor or
text editor to see scanned
data.
MS- CCD Setup
The two symbols to the
right will setup the
MS-2 CCD for reading
with the IB-3 PC.
Note: There is no
beeper on the MS-2
CCD but whenever a
good read occurs the
reader's LED will
momentarily turn OFF
and then ON and the
Good Read lamp will
flash ON and OFF.
4
Position 1
KEYBOARD IN
2
MS-2 CCD Symbols
Enable all
Symbologies
Set Read
Mode
5
MS-3 Laser Scanner Setup
1. Scan the configuration symbols in frame 4 in
order, pausing for a second or two on each until
you hear a beep (except for step 4, "Enable all
Symbologies," which does not generate a beep).
2. Mount your scanner in the position that is suit-
able for your application and begin operations.
When scanning, you have five seconds to read a
symbol and move on before it is read again.
Note: Setup symbols for the MS-3 Laser Scanner
in the next two frames are presented at right
angles to each other in order to prevent accidental
scanning of the wrong command.
Test Symbol
The following bar code symbol can be used to test
the operation of the setup:
1 2 3 4
Note: Download a copy of the
IB-3 PC User
Manual, P/N 83-210037, for a complete
description of the IB-3 PC and its capabilities.
Note: Also see the MS-3 Laser Scanner User
Manual, P/N 83-000003.
