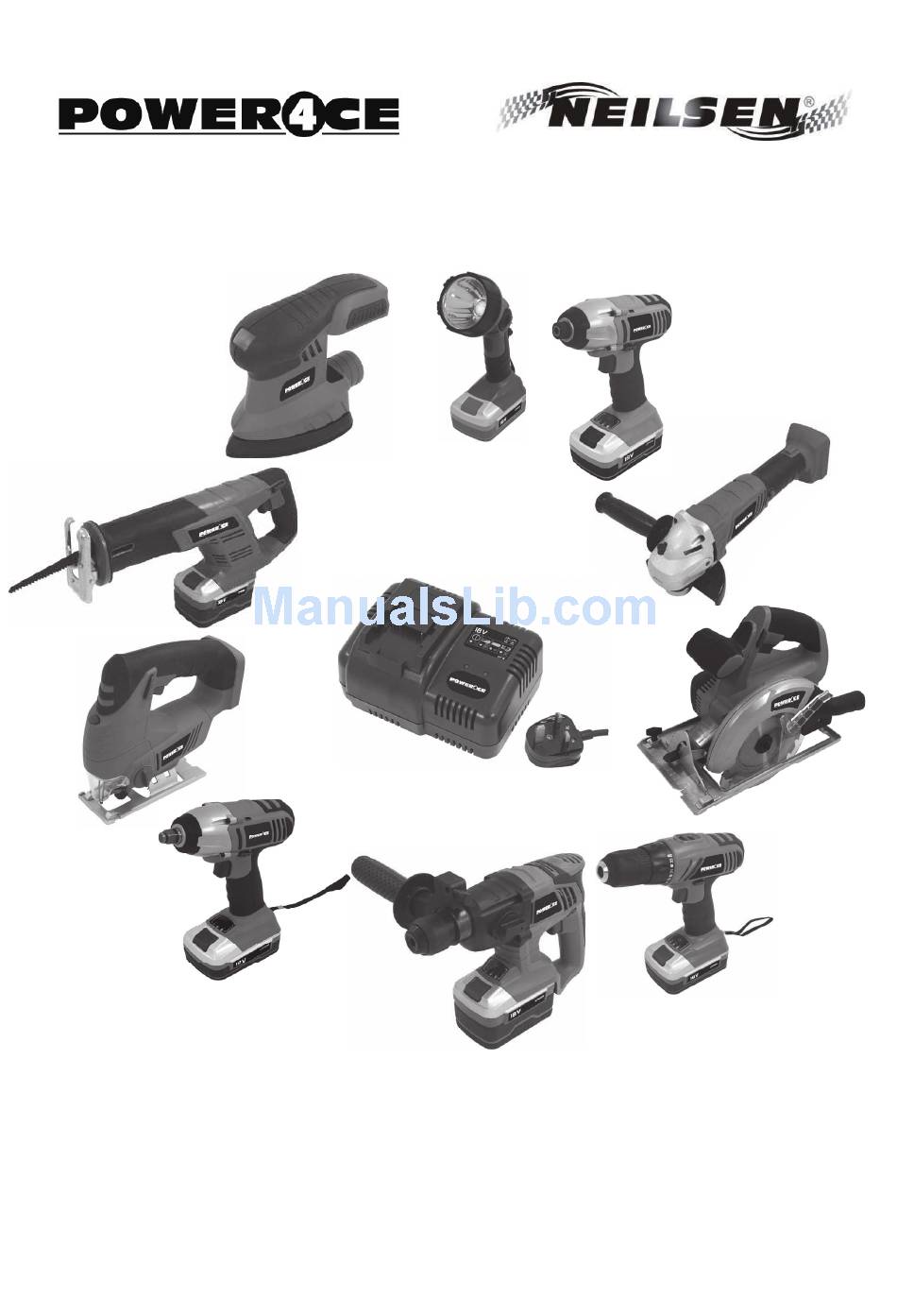

THE ULTIMATE CORDLESS KIT CT3658

INSTRUCTION MANUAL

Please read the entire instruction manual before using the product and then save
it for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CT3658 and is the answer not in the manual?

Questions and answers

Summary of Contents for Cannon CT3658

  • Page 1: Instruction Manual

    THE ULTIMATE CORDLESS KIT CT3658 INSTRUCTION MANUAL Please read the entire instruction manual before using the product and then save it for future reference.

  • Page 2: Personal Safety

    CAUTION Warning! Read all the instructions. Failure to adhere to the following instructions may lead to electric shocks, fires and/or serious injury. SAVE THESE INSTRUCTIONS! Work area a) Keep the work area clean and well illuminated. Cluttered and poorly lit areas invite accidents.
  • Page 3 alcohol or medication. One moment of inattention while using a power tool may result in serious injury. b) Wear protective clothing. Always wear safety glasses. Using protective clothing such as dust masks, non-slip safety shoes, helmets and ear defenders when needed decreases the risk of injury.

  • Page 4: Product Safety Symbols

    an appropriate manner suitable for the type of power tool used. Also, take into consideration your work environment and the type of work to be done. Using the power tool for a purpose other than that for which it is intended could result in a dangerous situation.

  • Page 5: Assembly And Setup

    Overload protection and other safety features The machine/battery has a number of safety features that prevent damage to the machine and battery during use. • During short high-load situations the overload protection may turn off the machine/ battery. This protection resets automatically. Release the trigger, wait a few seconds, ensure that there is no load and restart the machine.

  • Page 6: Care And Maintenance

    • When the battery becomes discharged, the battery’s electronics will turn off the machine automatically. • For long-term storage (months) the battery should first be fully charged. Care and maintenance • Always keep the motor’s ventilation openings free from dust and debris. •...

  • Page 7: Declaration Of Conformity

    We the importer CANNON TOOLS LTD Add: 20 station road, Rowley Regis, west midlands,B65 0JU.U.K. Declare that the product SANDER of No CT3658. Are in conformity with the following Directives to the specification Under which conformity is declared. The Machinery Directive (2006/42/EC)

  • Page 8: Buttons And Functions

    Safety instructions specific to sanders • Wear a dust mask whenever sanding and a dust extractor connected to the machine should also be used wherever possible. • Extra caution should be taken when sanding lead paint, wood, metal or other materials which produce toxic dust.

  • Page 9: Specifications

    Problem Possible cause Action The sander will Flat/discharged battery. Recharge the battery. not start. The battery is overheated. Let the battery cool down. Worn brushes. Contact our Customer Services. Faulty power trigger. Contact our Customer Services. The sander is Worn sandpaper. Replace the sandpaper.
  • Page 10 We the importer CANNON TOOLS LTD Add: 20 station road, Rowley Regis, west midlands,B65 0JU.U.K. Declare that the product TORCH of No CT3658. Are in conformity with the following Directives to the specification Under which conformity is declared. The Low Voltage Directive (2006/95/EC)

  • Page 11: Operation

    Safety • Never position the light so that it shines directly onto a wall socket. • Never cover the light when it is in use. • Never let children play with the light. • Do not use the light in humid environments and keep it dry. The light is not waterproof. •...
  • Page 12 We the importer CANNON TOOLS LTD Add: 20 station road, Rowley Regis, west midlands,B65 0JU.U.K. Declare that the product BIT DRIVER of No CT3658. Are in conformity with the following Directives to the specification Under which conformity is declared. The Low Voltage Directive (2006/95/EC)
  • Page 15 Specifications Speed : 0-2500rpm Torque : 160Nm Battery:  9 OLWKLXPLRQ with Quick Chuck...
  • Page 16 We the importer CANNON TOOLS LTD Add: 20 station road, Rowley Regis, west midlands,B65 0JU.U.K. Declare that the product ANGLE GRINDER of No CT3658. Are in conformity with the following Directives to the specification Under which conformity is declared. The Machinery Directive (2006/42/EC)
  • Page 17 Special safety warnings applicable to grinding, sanding, wire brushing or cutting a) This power tool is intended for grinding, dressing, wire brushing and cutting. Read all safety warnings, instructions, illustrations, and specifications provided with this tool. Neglecting to follow all of the instructions listed below can result in electric shock, fire and/or serious injury.

  • Page 18: Kickback And Related Warnings

    the place of work must wear personal protective equipment. Debris from the workpiece or from a damaged accessory can fly off and injury people outside of the immediate work area. j) Only hold the power tool by its isolated grip when working in positions where the cutting wheel might possibly cut through hidden cables or its own mains lead.
  • Page 19 is one for maximum control during kickback and to be able to control the torque ”kick” produced by turning the angle grinder on. Kickbacks or reactions to torque can be controlled by the user if the necessary safety precautions are followed. b) Never place your hand near the rotating accessory.
  • Page 20 b) Never stand in line with or behind the rotating wheel. When the wheel rotates away from you during use, a kickback can force the rotating wheel and the power tool in the opposite direction, i.e. towards you. c) When the wheel gets stuck or if you for some reason want to stop cutting, turn off the power tool and hold it still until the wheel has stopped completely.

  • Page 21: Product Description

    Product description 1. Spindle lock 6. Spanner for changing accessory disc/wheel 2. Inner flange 7. On/off switch 3. Outer flange 8. Safety switch 4. Shatter guard 9. Rotatable battery holder 5. Side handle, screws into either side 10. Rubber-clad handle Operating instructions Important: Always remove the battery from the power tool before adjusting, servicing or repairing it.
  • Page 22 Fitting a cutting wheel or other accessory Note: It is important that you select the correct type of wheel. Only use cutting wheels for cutting (Fig 1 below) and grinding wheels for grinding (Fig 2 below). Use only Ø 115 mm cutting wheels and grinding wheels with 22 mm centre bores.

  • Page 23: Side Handle

    Shatter guard Note: The shatter guard must always be attached when the machine is used. 1. Undo the shatter guard screw. 2. The guard has two lugs that fit into corresponding notches in the gear housing. Align the guard as shown in the figure and press the lugs into the notches in the gear housing.
  • Page 24 Troubleshooting guide Problem Possible cause Solution 7KH DQJOH %DWWHU\ GLVFKDUJHG 5HFKDUJH WKH EDWWHU\ JULQGHU ZLOO 7KH EDWWHU\ LV RYHUKHDWHG /HW WKH EDWWHU\ FRRO GRZQ QRW VZLWFK :RUQ EUXVKHV &RQWDFW RXU &XVWRPHU 6HUYLFHV 7KH VDIHW\ VZLWFK LV QRW KHOG LQ +ROG LQ WKH VDIHW\ VZLWFK DQG WKHQ SUHVV WKH RQRII VZLWFK 7KH DQJOH 7RR PXFK SUHVVXUH DSSOLHG...
  • Page 25 We the importer CANNON TOOLS LTD Add: 20 station road, Rowley Regis, west midlands,B65 0JU.U.K. Declare that the product CIRCULAR SAW of No CT3658. Are in conformity with the following Directives to the specification Under which conformity is declared. The Machinery Directive (2006/42/EC)
  • Page 26 Safety Instructions Specific to Circular Saws DANGER: a) Keep your hands at a safe distance from the saw blade and out of the cutting line. Keep your free hand on the auxiliary handle. If both your hands are on the handles, you won’t be able to cut yourself.
  • Page 27 cause the saw to jump backwards but it can be controlled if certain precautions are taken. b) When the saw blade jams, or if the sawing process is interrupted for some reason, switch the power off and hold the saw still until the blade has completely stopped. Never attempt to withdraw the saw from the workpiece when the blade is rotating, as this could cause a kickback.
  • Page 28 automatically. d) Always make sure that the lower blade guard is covering the blade before laying the saw on a bench or the floor. An uncovered rotating saw blade can cause the saw to move backwards and saw through everything in its path. Bear in mind that it takes time for the saw blade to come to a stop after the power switch has been released.

  • Page 29: Setup And Maintenance

    Setup and maintenance Setting the blade angle 1. Undo the locking knob. 2. Set the desired bevel angle, 0–45° . 3. Tighten the locking knob. Setting the cutting depth 1. Undo the locking knob. 2. Lower the base plate to the desired cutting depth.

  • Page 30: Changing The Blade

    Changing the blade 1. Remove the battery from the saw for safety. 2. Take off the Allen key stored on the back of the saw. 3. Press in the spindle lock button and rotate the blade carefully by hand until the spindle lock engages.
  • Page 31 We the importer CANNON TOOLS LTD Add: 20 station road, Rowley Regis, west midlands,B65 0JU.U.K. Declare that the product DRILL of No CT3658. Are in conformity with the following Directives to the specification Under which conformity is declared. The Machinery Directive (2006/42/EC)

  • Page 32: General Safety Instructions For Batteries And Chargers

    General safety instructions for batteries and chargers • Never attempt to dismantle a battery. • Never store a battery in direct sunlight or at temperatures above 40 ° C. • Only charge the battery when the ambient temperature is between +5 °...
  • Page 33 Functions Power trigger Select forward or reverse using the direction selector (4). The selector has a middle setting which locks the machine. If the selector is set to this position, the drill will not start. The machine is started and stopped by holding or releasing the trigger (5). The drill/driver is equipped with a variable speed control, which makes it extremely practical for screw removal.
  • Page 34 Specifications 0-400/1100 rpm Battery 18 V lithium-ion Torque settings 23 + drill setting, max 32 Nm Sound LpA: 71.8 dB(A) (Uncertainty KpA: 3 dB) LwA: 82.8 dB(A) (Uncertainty KwA: 3 dB) Vibration value ah 0.710 m/s2 (Uncertainty K: 1.5 m/s2) ah,D 1.553 m/s2 (Uncertainty K: 1.5 m/s2)
  • Page 35 We the importer CANNON TOOLS LTD Add: 20 station road, Rowley Regis, west midlands,B65 0JU.U.K. Declare that the product HAMMER DRILL of No CT3658. Are in conformity with the following Directives to the specification Under which conformity is declared. The Machinery Directive (2006/42/EC)
  • Page 36 Specific safety instructions for hammer drilling a) Wear ear protection. Exposure to excessive noise can cause hearing loss. b) Always use an auxiliary handle if one is supplied. Loss of control over the power tool can cause personal injury. c) Hold the power tool by its insulated gripping surfaces when performing an operation where the cutting accessory may contact hidden wiring or the power tool’s own mains lead.

  • Page 37: Attaching An Accessory

    Operating instructions NOTE: Use respiratory protection when working with material which produces lots of dust. Important: Always remove the battery from the rotary hammer drill before adjusting, servicing or repairing it. Attaching an accessory • The SDS-plus tool holder enables accessories to be changed simply and quickly. The SDS-plus tool holder allows the drill bit to slide back and forth, which means that it wobbles when it is not under load.

  • Page 38: Forward /Reverse

    Function selection Press in the function selector lock and select the desired function. Rotary hammer mode Drill mode Forward /reverse Select forward or reverse using the rotation direction selector. The rotating parts of the rotary hammer drill must be completely stationary before you change the direction of rotation.
  • Page 39 • When drilling into metal you should first use a centre punch to make a small indentation at the spot where you wish to drill. The indentation will prevent the point of the drill bit from wandering. • Let the drill bit spin whilst lifting it out after drilling through, it allows the motor to cool down and the drill bit is freed of dust and debris.
  • Page 40 We the importer CANNON TOOLS LTD Add: 20 station road, Rowley Regis, west midlands,B65 0JU.U.K. Declare that the product IMPACT GUN of No CT3658. Are in conformity with the following Directives to the specification Under which conformity is declared. The Machinery Directive (2006/42/EC)

  • Page 41: Operating Procedure

    OPERATING PROCEDURE CAUTION: • Do Not expose either the electical tool or charger to rain or water. • Do not overcharge the battery as this could damage the battery cells. • Do not force the tool. If the tool is laboring, it is possible that the battery power is low.

  • Page 42: Rotation Direction

    GENERAL • This tool is intended for use with 1/2in. drive impact sockets for loosening ond tightening nuts and bolts. Its impacts help to turn stiff fasteners. • To prolong the life of the tool, do not use it continuously for more than 20 minutes at a time.
  • Page 43 We the importer CANNON TOOLS LTD Add: 20 station road, Rowley Regis, west midlands,B65 0JU.U.K. Declare that the product JIG SAW of No CT3658. Are in conformity with the following Directives to the specification Under which conformity is declared. The Machinery Directive (2006/42/EC)
  • Page 44 Specific safety instructions for jig saws Warning: Always remove the battery from the power tool before adjusting, servicing or repairing it. 1. Hold the power tool by its isolated gripping surfaces whenever there is a risk of the saw blade coming into contact with hidden live wires or its own power flex. If the saw blade comes into contact with live wires it may electrify the metal parts of the jigsaw which can give the user an electric shock.

  • Page 45: Product Description

    Product description 1. Safety lock button 6. Saw blade guard 2. Power trigger 7. Saw blade 3. LED work light on/off switch 8. Battery connection 4. Pendulum motion control 9. Allen key holder 5. Blade holder locking knob 10. Footplate Assembly and setup Important: Always remove the battery from the power tool before adjusting, servicing or repairing it.

  • Page 46: Adjusting The Footplate

    Adjusting the footplate The footplate can be tilted up to 45˚ to the right or left. 1. Undo the two socket head footplate locking screws. 2. Pull the footplate backwards and set the desired angle. 3. Tighten the locking screws to secure the footplate. Setting the pendulum motion The adjustable pendulum motion can be adapted to the workpiece material being sawed.
  • Page 47 We the importer CANNON TOOLS LTD Add: 20 station road, Rowley Regis, west midlands,B65 0JU.U.K. Declare that the product RECIPRICATING SAW of No CT3658. Are in conformity with the following Directives to the specification Under which conformity is declared. The Machinery Directive (2006/42/EC)
  • Page 48 Specific safety instructions for reciprocating saws Important: Always remove the battery from the power tool before adjusting, servicing or repairing it. a) Keep your hands away from the blade and other moving parts. Do not reach under the workpiece being sawed. The blade or your hand could be out of your sight. b) Never put your hand or finger between the pendulum arm and gearbox.

  • Page 49: Operation

    Changing the saw blade The saw blade can either be fitted with the teeth along the bottom edge of the blade or with them along the top edge of the blade. Fitting the blade with the teeth along the bottom edge is usually preferable, but for some tasks it is sometimes better to have the teeth along the top edge.

  • Page 50: Sawing Metal

    Sawing flush to a surface Handy hint: By using a flexible bi-metal saw blade you can saw right up to the edge of a surface. This is useful when sawing off pipes protruding from a wall for example. • Lay the side of the saw blade flat against the surface/wall and tilt the saw so that the side of the footplate rests against the surface/wall.
  • Page 51 Safety • Never attempt to open the battery. • Never store a battery in direct sunlight or at temperatures above 40° C. • Only charge the battery when the ambient temperature is between 5° C and 40° C. • Never expose the battery or charger to water. Operation The battery needs to be charged fully before initial use.
  • Page 52 CANNON TOOLS LTD Add: 20 station road, Rowley Regis, west midlands,B65 0JU.U.K. Made in China...
