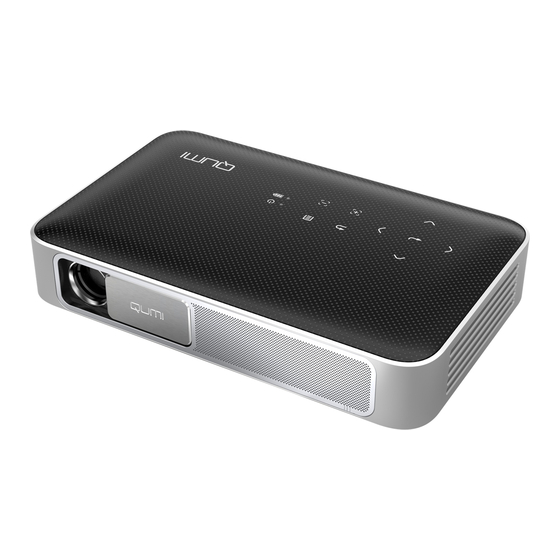

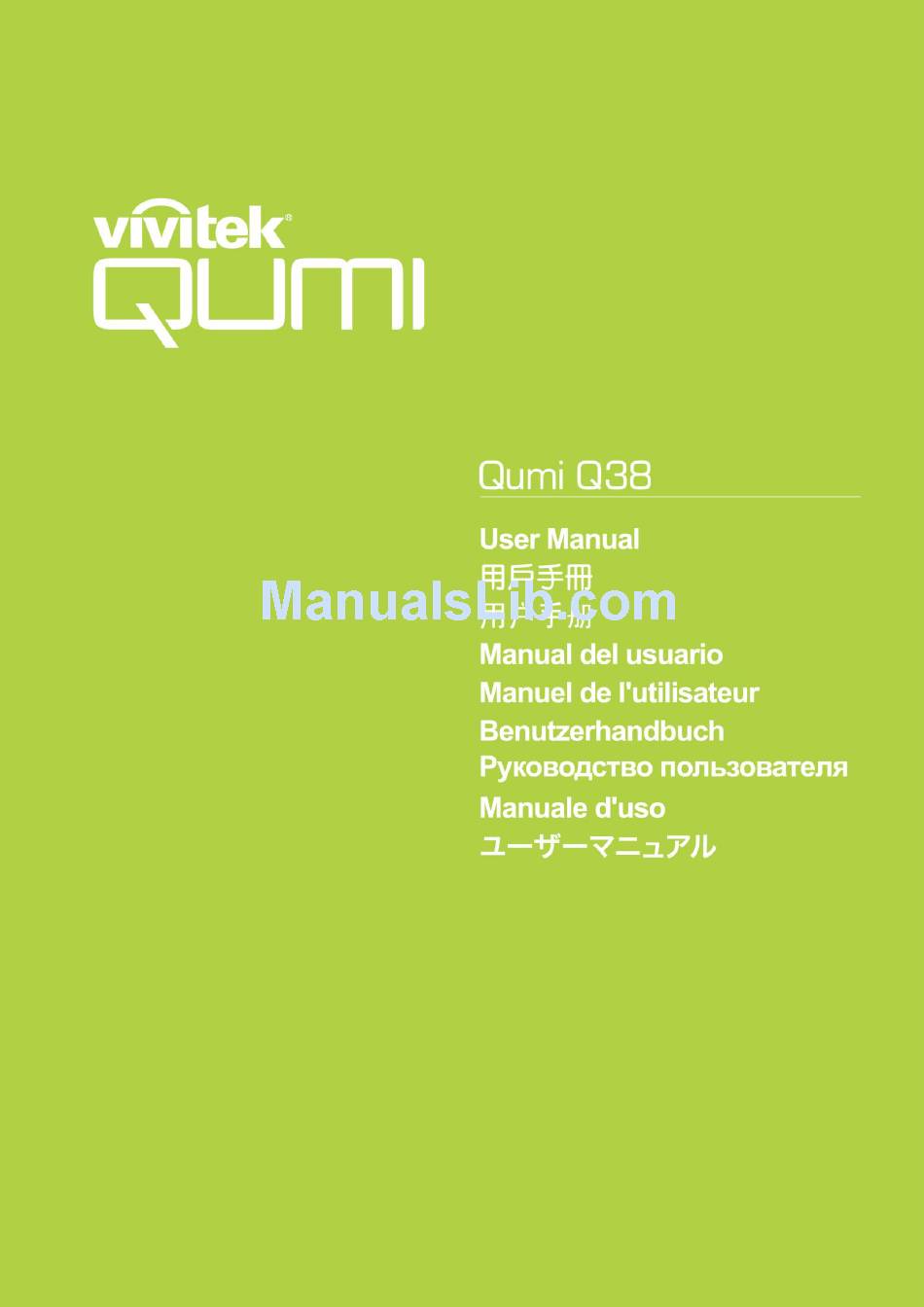

Qumi Q38 User Manual
  1. Manuals
  2. Brands
  3. Qumi Manuals
  4. Projector
  5. Q38
  6. User manual

Qumi Q38 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Q38 and is the answer not in the manual?

Questions and answers

Related Manuals for Qumi Q38

Summary of Contents for Qumi Q38

  • Page 2: Preface

    Preface Copyright ©2017 Vivitek. is a trademark of Delta Electronics, Inc. All other trademarks are the property of their respective owners. All values, weights and sizes in this Manual are approximate values. Specifications are subject to change without notice. Disclaimer The information in this document is subject to change without notice.

  • Page 3: Important Safety Information

    Important Safety Information Important: It is strongly recommended that you read this section carefully before using Qumi. These safety and usage instructions that will make sure you enjoy many years of safe use of Qumi. Keep this manual for future reference.
  • Page 4  All enclosures should pass a certified thermal evaluation to make sure that Qumi does not recycle exhaust air, as this may cause the device to shut down even if the enclosure temperature is with the acceptable operating temperature range.

  • Page 5: Main Features

    Before cleaning, disconnect the power supply cables. See “Cleaning Qumi” on Page 43. Note: Qumi will be warm after usage. Allow Qumi to cool down before storing away. Control Warning Before installing and using Qumi, read the regulatory notices in the Regulatory Compliance on page 52.

  • Page 6: Table Of Contents

    Settings ............................ 32 Chapter 4 On-Screen Display (OSD) Settings ................ 33 OSD Menu Controls ........................ 33 OSD Language Settings ......................35 Chapter 5 Taking Care of Your Qumi ..................46 Cleaning Qumi ......................... 46 Cleaning the Lens ........................46 Troubleshooting ........................47 Vivitek Support Site .........................

  • Page 7: Chapter 1 At A Glance

    Chapter 1 At a Glance Overview Front/Top/Right View...
  • Page 8 Rear/Top/Left View...

  • Page 9: Standard Accessories

    Standard Accessories Along with Qumi, the following accessories are include in the box: Remote Control (with one 3V CR2025 battery) Regional Power Cord and Power Adapter Documentation Kit* (Quick Start Guide, Warranty Card) Standard HDMI cable *Note: The user manual is located inside the projector’s internal memory: Projector’s internal memory:...

  • Page 10: Remote Control

    Remote Control...

  • Page 11: Setting Up The Remote Control

    Qumi. The remote control functions properly within a radius of approximately 7 meters (23 feet) and 15 degrees above or below the Qumi level (If the remote is not held perpendicular to the sides or rear of Qumi).

  • Page 12: Chapter 2 Getting Started

    Qumi to an external or portable music player. To play films, connect Qumi to a DVD player, Blu-Ray player or media player. To display files and other types of media, connect Qumi to peripherals like a personal computer via the provided HDMI cable or a USB drive.

  • Page 13: Setting Up Qumi

    Connect HDMI-compatible peripherals to Qumi using an HDMI cable (Included). Inserting a USB device or microSD Card Connect a USB device (USB Flash Drive, Keyboard, Mouse) or microSD card to the Qumi by inserting the desired device (s) into the appropriate port.
  • Page 14 Charging the Battery Follow the below steps to charge Qumi: Connect the AC power adapter to Qumi. Connect the other end of AC power adapter to a wall outlet. Notes: The battery will be fully charged in about 3 to 4 hours.
  • Page 15 Starting and Shutting Down Qumi Connect the AC power adapter to Qumi. Connect the other end of AC power adapter to a wall outlet. Note: The adapter models may differ between countries. Press power button to turn on Qumi. ...
  • Page 16 Adjusting the Projector Level Flip down the kickstand to adjust the projector level. Using a Tripod Qumi can be used with a tripod by connecting the tripod to the bottom of Qumi. Many typical tripods can be connected. Supported Tripod Specifications:...

  • Page 17: Chapter 3 Qumi Home Screen

    Chapter 3 Qumi Home Screen Views The Qumi Q38 Home Screen is designed as the starting point for accessing all of the projector’s key functions and features. The Home Screen helps provide ease-of-use for conveniently operating and configuring the projector. It displays the main functions, app links, and notification bar.
  • Page 18 HotSpot, Bluetooth, Storage, General, Application and System. Quick Access Links The Qumi includes a Quick Access Links panel on the bottom left of the screen. This panel provides access to commonly used applications and system settings like Photo, Video Music, Browser, Documents and more. The Apps that appear in the Quick Access Shortcuts can also be customized and updated based on the user’s preference.
  • Page 19 Notification Bar Notification Bar appears on the top right of the screen. The notification icons indicate the Qumi connectivity status.  microSD Card Icon – microSD card is inserted.  Bluetooth Icon – Bluetooth function is activated.  USB Drive Icon – USB flash drive is inserted.

  • Page 20: Photo

    Photo The available images in the connected USB drive, microSD card or Internal Memory are listed in the Photo menu. Press buttons on top of the projector or remote controller to select files and press to display the chosen file. The control panel display will change based on the file.

  • Page 21: Video

    Video Available videos in the connected USB drive, microSD card or Internal Memory are listed in the Video menu. Press buttons on top of the projector or the on the remote controller to select files and press to display the chosen file. The control panel display will change based on the file.

  • Page 22: Music

    Music Available music in the connected USB drive, microSD card or Internal Memory are listed in the Music menu. Press buttons on top of the projector or buttons on the remote controller to select files and press to display the chosen file. The control panel display will change based on the file.

  • Page 23: Document

    Document Available documents in the connected USB drive, microSD card or Internal Memory are listed in the Document menu. Press buttons on top of the projector or the on the remote controller to select files and press to display the chosen file. The control panel display will change based on the file.

  • Page 24: App Store

    Close App Store Manage downloads, updates and access to the APP Store. Search for the desired App.

  • Page 25: Browser

    The table below lists available functions. Menu Description Bar/Icon Bookmark this page Search or type URL Find local bookmark Notes: When navigating the web with the built-in browser, it’s recommended to connect a USB mouse and keyboard to Qumi.

  • Page 26: My Apps

    My Apps Manage and operate all applications installed on Qumi. Applications downloaded through the App Store will be show in the My Apps drawer.

  • Page 27: Wifi

    WiFi Setup and manage wireless connections (Example: Tablet, Smartphone) Enable WiFi -- Select network name Input user name and password -- Click Connect Press buttons on top of the projector or the remote controller to select files and press for display. The control panel display will change based on the file.

  • Page 28: Mirroring Setup

    This feature will allow the wireless mirroring of connected personal computers, smartphones and tablets (iOS/MacOS/Windows/Android operating systems) to the Qumi Q38 without requiring any physical cables. The Qumi Q38 supports 3 types of mirroring technology and this includes AirPlay with AirReceiver, Google Cast with AirReceiver and Miracast.
  • Page 29 There is no need to download the AirReceiver App to your iOS/MacOS Smartphone/Tablet/PC. a. On your iOS Smartphone/Tablet, slide up from the bottom of the screen to display the control console. The AirPlay button should appear, then click on it. Select the suitable device to switch on the screen mirroring. In this case, the name will appear as “Vivitek”.
  • Page 30 Connect your Android Smartphone/Tablet and Qumi Q38 to the same office or home wireless network. Launch the Miracast App on the Q38. The application can be found in the Connectivity folder on the Homescreen. Connect the Android Smartphone/Tablet to the Projector Launch the Smartphone/Tablets mirroring feature and make sure to enable the wireless display feature.
  • Page 31 Note: The AirReceiver application is defaulted to always be on, so no need launch it. Connect your WindowsOS PC and Qumi Q38 to the same office or home wireless network. On your WindowsPC, launch the Chrome Browser and click on the 3-Dot icon and choose the “Cast”...

  • Page 32: Settings

    Settings Access to a variety of settings including Wi-Fi, Display, Sounds, Apps, Storage, Bluetooth, System and more. Press buttons on top of the projector or on the remote controller to select files and press for display. The control panel display will change based on the file.

  • Page 33: Chapter 4 On-Screen Display (Osd) Settings

    Chapter 4 On-Screen Display (OSD) Settings OSD Menu Controls Qumi has an On-Screen Display (OSD) settings menu (Menu button can be found on top of the projector or on the remote control) that allows you to make adjustments and change settings, such as display and audio settings. The OSD menu has 11 sub-menus: ...
  • Page 34 OSD Menu Overview Use the following table to quickly find a setting or determine the range for a setting. Main Menu Submenu/Setting Česky, English, Français, Dansk, Espaol, Hrvatski, Deutsch, Eλληolk, Italiano, Magyar, Polski, Româneste, Nederlands, Português, OSD Languages Slovenščina, Norsk, Pусский, Srpski, Suomi, 简体中文, Svenska, 繁體中文...

  • Page 35: Osd Language Settings

    OSD Language Settings Qumi’s OSD language menu can be easily changed. Perform the following steps to change the OSD language: 1. Press the OSD Screen Menu button on the top of the projector or on the remote control to enter the Settings menu.

  • Page 36: Input Source

    Input Source Perform the following steps to change the display mode: 1. Press the OSD Screen Menu button on the top of the projector or the remote control to enter the Settings menu. 2. Move the cursor to highlight the Input Source, and press to enter this mode.
  • Page 37 Display Mode Settings Perform the following steps to change the display mode: 1. Press the OSD Screen Menu button on the top of the projector or the remote control to enter the Settings menu. 2. Move the cursor to highlight the Display Mode, and press to enter this mode.
  • Page 38 Sound Mode Settings Perform the following steps to change the sound mode: 1.Press the OSD Screen Menu button on the top of the projector or the remote control to enter the Settings menu. 2. Move the cursor to highlight the Sound Mode, and press to enter this mode.

  • Page 39: Color Temperature Settings

    Color Temperature Settings Perform the following steps to change the color temperature settings: 1. Press the OSD Screen Menu button on the top of the projector or the remote control to enter the Settings menu. 2. Move the cursor to highlight the color temperature, and press to enter this mode.

  • Page 40: Aspect Ratio Settings

    Aspect Ratio Settings Perform the following steps to change the projector’s aspect ratio: 1. Press the OSD Screen Menu button on the top of the projector or the remote control to enter the Settings menu. 2. Move the cursor to highlight the Aspect Ratio settings and press to enter this mode.
  • Page 41 Projection Method Settings Perform the following steps to change the projector’s projection method: 1. Press the OSD Screen Menu button on the top of the projector or the remote control to enter the Settings menu. 2. Move the cursor to highlight the Projection Method settings and press to enter this mode.
  • Page 42 Keystone Correction Settings Perform the following steps to change the projector’s keystone correction: 1. Press the OSD Screen Menu button on the top of the projector or the remote control to enter the Settings menu. 2. Move the cursor to highlight the Keystone Correction settings, and press enter this mode.
  • Page 43 Settings menu. 2. Move the cursor to highlight the Reset All settings and press to enter this mode. 4. Press button to select Yes and to select No. After selecting Yes, the Qumi system will be reset to original factory settings.
  • Page 44 Status Settings Perform the following steps to view the projector’s status: 1. Press the OSD Screen Menu button on the top of the projector or the remote control to enter the Settings menu. 2. Move the cursor to highlight the Status settings and press to enter this mode.
  • Page 45 Software Update Settings (USB) 1. Download software and unzip file 2. Place software into USB flash drive File Name: MERGE_DLP30.bin Note: Place file directly into USB drive (Not in folder) 3. Insert USB flash drive into the USB port (Right side port) 4.

  • Page 46: Chapter 5 Taking Care Of Your Qumi

    2. Use only a dampened cloth when cleaning. Do not allow water to enter the ventilation openings on Qumi. 3. If a small amount of water gets into the interior of Qumi while cleaning, unplug Qumi and set it in a well-ventilated area for several hours before using.

  • Page 47: Troubleshooting

    Qumi to service personnel. System Reset Method (Reboot) On the rear side of Qumi (below the two USB ports), there is a small pinhole. Insert a paperclip (or similar sized object) into the hole and press for 3 seconds to reboot Qumi.
  • Page 48 1. Adjust the focus directly via the focus buttons on the projector or remote control 2. Ensure that the distance between the Qumi and the screen is within specified range 3. Clean Qumi lens with optical lens cleaning cloth if it is dirty.
  • Page 49 Can Qumi project content from a television? Watching television content can be done by connecting a cable box, digital set-top box or satellite receiver directly to Qumi. For example, if a cable box is used, it can be connected by an HDMI cable to Qumi.

  • Page 50: Vivitek Support Site

    How long will the LED light source in Qumi last and can it be replaced? Qumi does not use a typical light source. It uses a set of Light Emitting Diodes (LED) to illuminate and project images. LED’s have a greater lifespan than conventional lamps.

  • Page 51: Specifications

    Specifications Qumi Q38 Model No.: Native Resolution FullHD 1080p (1920 x 1080) Maximum Resolution WUXGA (1920 x 1200) / UHD 4K video playback support on Android OS Throw Ratio 1.2:1 (Distance/Width) Image Size 0.5m - 3.3m (19” - 130”) (Diagonal) Projection Distance 0.5m - 3.5m (1.6ft –...

  • Page 52: Projection Distance Vs Projection Size

    Projection Distance vs Projection Size Projection Distance and Size Table Image Diagonal Image Width Image Height Projection Distance (cm/inch) (cm/inch) (cm/inch) (cm/inch) 76/30 66/26 33/13 77/30 102/40 89/35 43/17 103/40 127/50 111/44 54/21 128/50 152/60 133/52 65/25 154/61 178/70 155/61 76/30 179/71 203/80...

  • Page 53: Timing Mode Table

    Timing Mode Table Horizontal Synchronization Vertical Synchronization Resolution [KHz] [HZ] VESA640x480_60 31.47 59.94 VESA640x480_72 37.86 72.81 VESA640x480_75 37.5 VESA800x600_60 37.88 60.32 VESA800x600_72 48.08 72.19 VESA800x600_75 46.88 VESA1024x768_60 48.36 VESA1024x768_70 56.48 70.07 VESA1024x768_75 60.02 75.03 VESA1280x768_60-RB 47.4 59.99 VESA1280x768_60 47.78 59.87 VESA1280x800_60 49.7 59.81...

  • Page 54: Qumi Dimensions

    Qumi Dimensions...

  • Page 55: Regulatory Compliance

    Regulatory Compliance FCC Warning This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
