To select winter mode, press the "WINTER" button. The display will show "W"
and the controller will turn the pump on for a short time each day.
To resume normal operation, press the "WINTER" button and the unit will begin
automatic operation.
TROPICAL MODE.
NOTE: This mode is used to cool your pool at night if it overheats in VERY hot
weather. Most people do not need to use this function.
To select tropical mode, press the "WINTER" and "DISPLAY" buttons together.
The "Tropical" LED will come on and the unit will then turn on for a short time every
4 hours to check the pool temperature and heat or cool as required.
To resume normal operation, press the "WINTER" and "DISPLAY" buttons together.

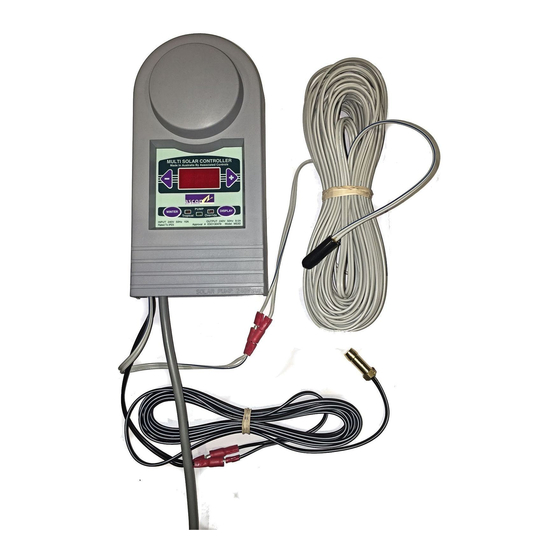

Solar Controller
OVERRIDE MODE . Before selecting this mode, remember that the MS3D
is designed to work automatically. Overriding the automatic operation
can result in overheating of your pool or spa or even cooling if the solar
system continues to run when the sun is not shining.
To select override on, press the "+" and "
" buttons together. The display will
–
flash between "ON1" and the current Pool temperature. The "Override" LED will
Model MS3D
flash and the pump will operate until these buttons are operated again or power is
removed from the MS3D unit. This mode will time out after 1 hour. To select 4 hour
override on, press and hold the "+" and "–" buttons down for 5 seconds, the display
will show "ON 4" .
To resume normal operation, press the "+" and "–" buttons together.
To select override off, press the "+" and "DISPLAY" buttons together. The display
will flash between "OFF" and the current Pool temperature. The "Override" LED will
The sun always shines with Ascon Pool
flash and the pump will turn off and stay off until the buttons are operated again.
This mode will time out after 1 hour.
To resume normal operation, press the "+" and "DISPLAY" buttons together.
ERROR INDICATION
Associated Controls (Australia) Pty Limited,
ABN 210 002 245 64
NOTE: In extremes of temperature, the fault displays may show although the unit
is not faulty. Remember the pool temperature is sensed from the inlet pipe which
2-4 Norfolk Road, Greenacre, NSW 2190, Australia.
PO Box 5605, Chullora, NSW 2190
can be much colder or hotter than the pool if the system has been off for some
Tel: 02 9642 4922
time.
Email:
info@asconpool.com.au
Web:
www.asconpool.com.au
MS3D will sense a fault in roof or pool sensors, and indicate it by flashing "PPP" or
22062-03.PDF 15264
"rrr" .
In this state the unit will not work properly until serviced.
