Summary of Contents for Medihelp Healthcare Baselight 420X

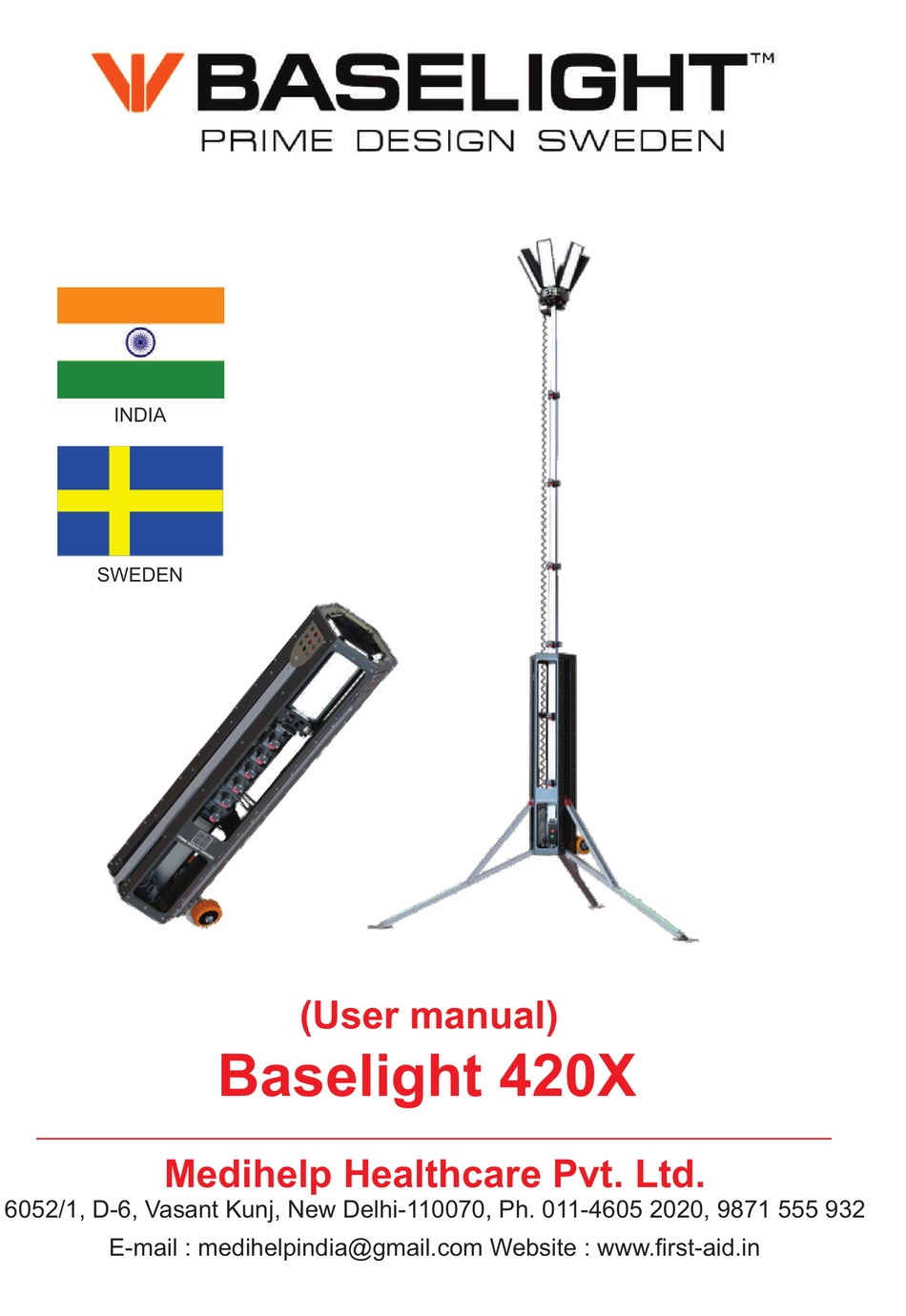

- Page 1 INDIA SWEDEN (User manual) Baselight 420X Medihelp Healthcare Pvt. Ltd. 6052/1, D-6, Vasant Kunj, New Delhi-110070, Ph. 011-4605 2020, 9871 555 932 E-mail : medihelpindia@gmail.com Website : www.rst-aid.in...
-
Page 2: Table Of Contents
Table of contents General cauions Operaion overview Component diagram Leg operaion 1 Leg operaion 2 Mast operaion 1 Mast operaion 2 Armature coniguraion 1 Armature coniguraion 2 Using the ballast accessory Maintenance Technical data... - Page 3 Intended usage Baselight 420X is a mobile lighing equipment intended for temporary illuminaion where high lumen output in combinaion with low weight and minimal power consumpion is required. Baselight is designed to protect the operator as much as possible and all important safety funcions are in red color.
-
Page 4: Operaion Overview
OPERATION OVERVIEW Extend all three legs Engage locking lever in up Raise box unil it stands to the ground. posiion on all three legs (Se up. Self locking. chapter ”Leg operaion”) Adjust leg angels if necessary so that Raise armature out of Chose armature conigura- Baselight stands straight and level transport box unil irst... -
Page 5: Component Diagram
COMPONENT DIAGRAM Armature Armature plaform Armature juncion box Mast lock Spiral cable Mast Transport box Mains juncion box Dimmer Power switch Power extension outlet Power cord Power supply x 2 Wheels Wheels assembly Leg lock Support leg Main leg Surface shoe... - Page 6 LEG OPERATION 1 CAUTION! Never try to adjust leg angels ater the mast is extended. Always lower the mast before making adjustments. Baselight have three support legs that can be individually adjusted to compensate for uneven terrain. The goal for the operator is to ensure that Baselight transport box always stand straight (level) before rising the mast.
- Page 7 LEG OPERATION 2 How to secure legs before rising transport box When the locking lever is in its top posiion the self locking mecha- nism is engaged. Baselight will now self lock when transport box is raised. The operator must determine if Baselight transport box is standing straight (level) ater being raised from ground.
-
Page 8: Mast Operaion
MAST OPERATION 1 CAUTION! Baselight contains a self locking telescopic mast. To avoid personal injury or damage to Baselight these procedures must be followed! TO EXTEND THE MAST Make sure that the support legs have been extended and locked and that the transport box is raised from ground and in a level posi- ion. - Page 9 MAST OPERATION 2 CAUTION! Baselight contains a self locking telescopic mast. To avoid personal injury or damage to Baselight these procedures must be fol- lowed! TO LOWER THE MAST Always start by lowering the botom secion irst and then the one above (and so on). Place one hand around the lock and use the index inger to pull on the red grip while the other...
-
Page 10: Armature Coniguraion
ARMATURE CONFIGURATION 1 When the upper most secion of the telescopic mast is raised (see chapter: MAST OPERATION 1) out of the transport box it is ime to select which armature coniguraion to use. 360 Degree coniguraions This type of coniguraion provides light in all direcion (360 degree). When used in a ilted mode make sure that the fricion lock engages. - Page 11 ARMATURE CONFIGURATION 2 Open the snap lock on the armature base and lit the let part of the armature slightly over the slide base. Push gently with both hands on each side of the armature unil it lock into posiion. Check that it has locked by trying to close the armature.
- Page 12 Solarstock (Power Bank)
-
Page 13: Maintenance
MAINTENANCE Baselight is designed for minimal maintenance and use in remote locaions. It is a key feature of the prod- uct to require litle or no maintenance. The recommended maintenance is as follows: Before every usage the operator must: Check electrical wires for damage. This relates to: -Main power cable &... -
Page 14: Technical Data
TECHNICAL DATA Wind resistance without ballast........Up to 20 m/s Wind resistance with ballast………………………………………...Up to 30 m/s Luminous lux..............50.000 Lumen Light source lifeime............50.000 Hours Working temperature..........-30 to + 45 Deg C Operaing voltage..........90 to 305 VAC/50Hz Power connector............CEE or Schuko Colour temperature........6000 Kelvin (Bright Daylight) Power consumpion........15 to 420 Wat (Dimmable) IP Raing..................IP67 Weight..................30Kg(66lb) - Page 16 MediHelp Healthcare Pvt . Ltd. D-6, 6052/1,V asant Kunj, New Delhi-110070 Phone- 011- 4605 2020, E-mail: medihelpindia@gmail.com...
