Performance Tool W89721 Owner's Manual

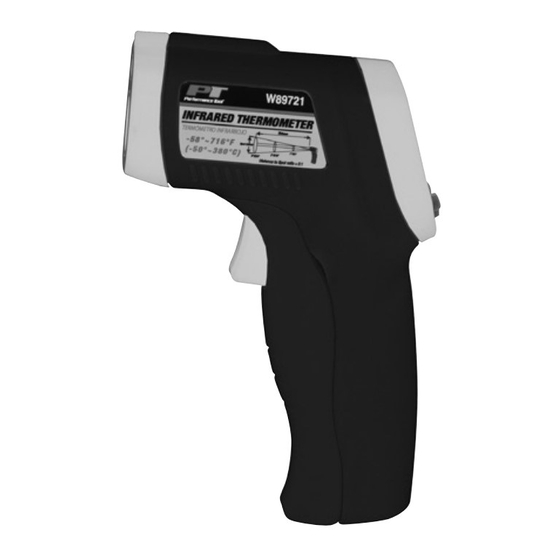

Infrared Thermometer
Stock Number W89721
PRODUCT SPECIFICATIONS
Temperature Range
Accuracy
Resolution
Response Time
Emissivity
Distance to Spot Ratio
Spectral Response
Storage Temperature
Operating Temperature
Power
INTRODUCTION
Introduction
Compact rugged and easy to use. Just aim and push the button, it reads
current surface temperatures in less than a second. Safely measure surface
temperatures of hot, hazardous or hard-to-reach objects without contact.
HOW IT WORKS
How it works
Infrared thermometer measures the surface temperature of an object. The
unit's optical sensor emitted, reflected, and transmitted energy which is col-
lected and focused onto a detector. The unit's electronics translate the infor-
mation into a temperature reading which is displayed on the unit. The laser
makes aiming and measurement even more precise.
WARNING:
Do not point laser directly or indirectly (through reflective surfaces) at eye.
FOR YOUR SAFETY,
please read these instructions carefully and retain them for future use.
OWNER'S MANUAL
-50 - 380°C (-58 - 716°F)
+1.5% or +1.5°C
.1°C (0.1°F)
<0.8s
0.95 Fixed
12:1
8:14um
0~40°C (32~140°F)
-20~60°C (-4~140°F)
9V
