Summary of Contents for DIGM Technology GSM-0308WPC

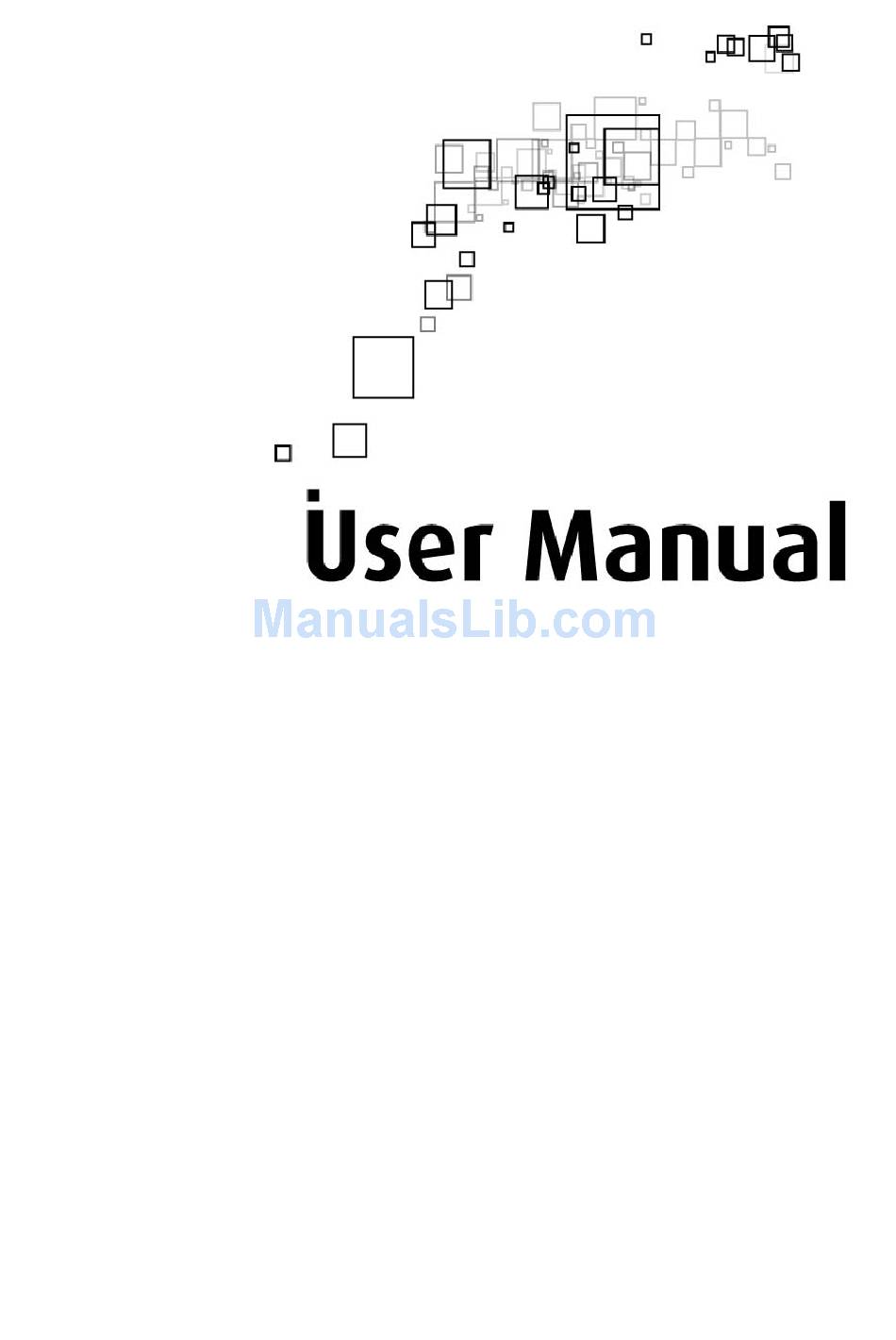

- Page 1 GSM WATER PUMP CONTROLLER AND MONITORING SYSTEM Model: GSM-0308WPC...
-
Page 2: Table Of Contents
GSM-0308WPC User Manual Table of Contents Application………..……………………………………………...…………………………………………3 Instructions…………….……………………………………………………………………………………4 Installation Diagram….……………………………………………………………………..………….5 Device Design…………..………………………………………………………….………………………5 Technical Parameter..…………………………………………………………………………………..6 Setup Instruction………………………………………………………………………………………….6 1 Administrator 1.1 Temporary Administrator Privilege……………………………………………………………………………………….6 1.2 Changing a Password…………………………………………………………………………………………………………….6 1.3 Add an Administrator Number……………………………………………………………………………………..……….7 1.4 Enquiry to Administrator Numbers in the list………………………………………………………………………..7 1.5 Delete Administrator Number in the list……………………………………………………………………………….8 1.6 Enquiry Signal Strength………………………………………………………………………………………………………...8 1.7 Time Schedule to send SMS Reminder to the Administrator……………………………………………..….8 2 System Alarm Alert Programming 2.1 Call Alert For Trigger Type Alarm.………..……………………………………………………………….……………….9 3. Pump Activation.………..……………………………………………………………………………………….……………….9 ... -
Page 3: Application
GSM-0308WPC User Manual Applications: This product is suitable for water pump control, reservoir control, aquarium etc. Can use SMS to remotely Enquiry for, Text Content for Alarm Alert / Call Alarm Alert. 3 | P a g e ... -
Page 4: Instructions
GSM-0308WPC User Manual Instructions: After connect to the unit, connect the input to your trigger unit on dry contact at the object you need to monitor. Once the device trigger will SMS / phone call to inform you. Maximum 5 group administrator can be set up to receive alarm alerts. 4 simple steps to use the device: 1. Insert the SIM card 2. Plug in the power cable into the power supply socket 3. Switch on the On/Off switch 4. After the device starts, make a call to the device (call the SIM card phone number) Note: When hear a "~di" sound, you can determine the equipment has been start successfully. When it reply as follows, it is ready to use. ... -
Page 5: Installation Diagram
GSM-0308WPC User Manual Installation Diagram Device Design 5 | P a g e ... -
Page 6: Technical Parameter
GSM-0308WPC User Manual Technical Parameter • Power Supply: Single Phase 220V‐240V 50/60Hz • GSM Frequency: GSM900/1800Mhz (Optional GSM850/900/1800/1900Mhz) • Device Power: <2W • Backup Battery: 7.4V/600mAH Lithium Polymer Battery • Maximum Load For Control: NO: 10A / 277VAC, NC: 12A / 125VAC • Remote Monitoring Distance: GSM network coverage area • Physical Casing Dimension: 180mm x 140mm x 60mm • Enclosure IP Rating: IP65 Setup via SMS Command 1. Administrator 1.1 Temporary Administrator Privilege: *100*AAAAAA# Setting up a Temporary Administrator Privilege for Programming Mode: AAAAAA = 6 Digits Password Default Password = 123456 By using this commando, you will obtain administrator privilege for 10 Minutes. That means you can do all programming within those 10 Minutes. If you add your tel. no. in the administrator list, you do not need this function anymore. If another uses same commando within the 10 Minutes, then you will lose your Administrator privilege. All tel. no. on the Administrator list have full control over the unit at all time. 1.2 ... -
Page 7: Add An Administrator Number
GSM-0308WPC User Manual 1.3 Add an Administrator Number *101*A*BBBBBB# Add administrators to the Administrator List A = Administrator no‐ (1 – 5) BBBBBBBB = Tel. no. of new administrator. You can add a Minimum of 3 digits and a maximum of 20 digits. Example: Send *101*5*13812512456#, System will set 13812512456 as Admin 5 Send *101*3*123456#, System will set 123456 as Admin 3 1.4 Enquiry to the Administrator Numbers in the list *102# Check administrator list It will reply with a full list of all administrators on the list. 7 | P a g e ... -
Page 8: Delete Administrator Number In The List
GSM-0308WPC User Manual 1.5 Delete Administrator Number in the list: *103*A# Deleting administrator tel. no. on the list A = administrator no. (1 – 5) Example: Send *103*5#, the system will delete the Admin 5 Enquiry Signal Strength: 1.6 *104# Check signal strength on the GSM connection Enquiry for Signal Strength CSQ = 0 – 10 (Weak Signal) CSQ = 11‐ 20 (Average Signal) CSQ = 21 – 30 (Good Signal) CSQ = Above 30 (Excellent Signal) 1.7 Time Schedule to send SMS Reminder to the Administrator *109*XXX# SMS check message to say the unit is still up and running. XXX = Days (Value = 000 ‐ 255, must be in 3 digits, every week = 007) Default as 000 (Not Sending SMS reminder) Default Text reads as “Hi! I'm OK” (Can edit the text using *111* Command) Example: (send) *109*002# the system will start to calculate from the moment it receives the SMS. After 2 days, it will send out a SMS reminder. Note: If the system had been restarted, it will clear the time to ZERO and recalculate again for 2 days from the moment the system restarted, then send out the SMS reminder after 2 days. 8 | P a g e... -
Page 9: System Alarm Alert Programming
GSM-0308WPC User Manual 2. System Alarm Alert Programming 2.1 Call Alert for Trigger Type Alarm: *302*A*B# B = 0 or 1 (0 = OFF, 1 = ON) default as when alarm, will not message before phone call alert A = Trigger Types as per below; (1): System Restart (2): Power Outage (3): Power Recover (7): Line Cut (8): Line Cut Recover Note: you can choose as many of them you want which means you can simple choose to on/off the call function of the 5 Types of Alarm Alert 3. Pump Activation Command use to program unit at hill top from the main unit in order to activate pump (0 = OFF, 1 = ON) *1000*A# A=0 or 1 For more additional command, please refer to “Additional Command List For GSM‐0308 Series” 9 | P a g e ...
