Summary of Contents for Allnet ALL95100

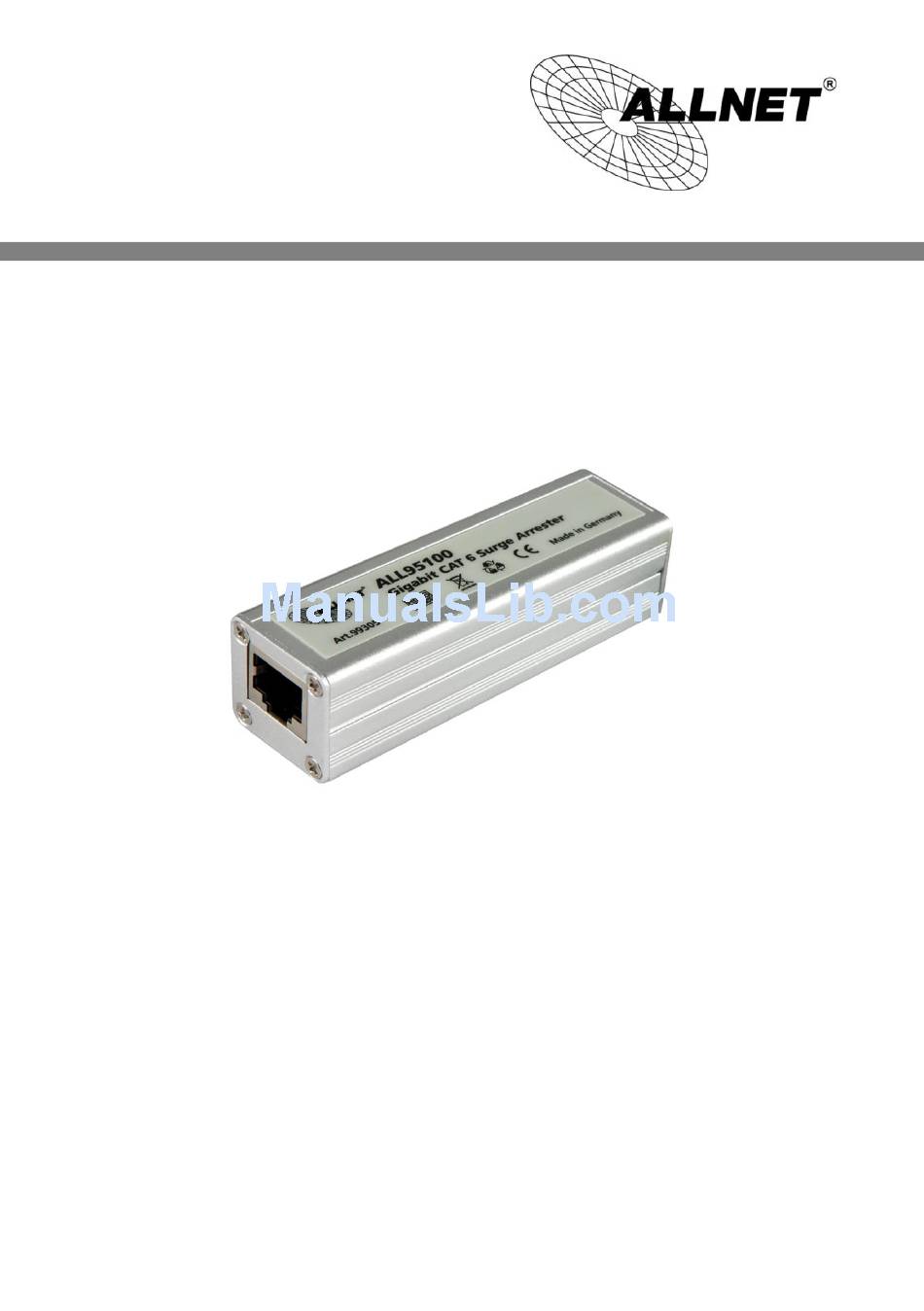

- Page 1 ALL95100 Gigabit CAT 6 Surge Arrester For 10/100/1000Mbit Ethernet + PoE Quick Installation Guide...
- Page 2 Safety instructions for the installation - ALL95100 is just for network interface cards, hubs, switches and other network equipment. - Never install the ALL95100 during a electric storm! - Only for installation in cool, dry rooms. - Power off all devices which should be prevented before installation.
- Page 3 Network cable Network cable ALL95100 Grounding conductor Note: Due to the bi-directional structure of the ALL95100 Surge arresters the input and output side is arbitrary exchangeable. Installation 1. Power off the device which should be prevented. 2. Disconnect the network cable from the device which should be prevented.
-
Page 4: Technical Specifications
(Pins) 1 - 8 (on 8 pinned modular jack) Standard Compliance: IEEE 802.3, CAT 5, 6 Please note: We recommend that the protective conductor should be installed by a qualified electrician. © ALLNET GmbH Munich 2013 - All rights reserved. - Page 5 The safety advice in the documentation accompanying the products shall be obeyed. The conformity to the above directive is indicated by the CE sign on the device. The Allnet ALL95100 conforms to the Council Directives of 2004/108/EC. This equipment meets the following conformance standards: IEC61000-4-6:2009...
