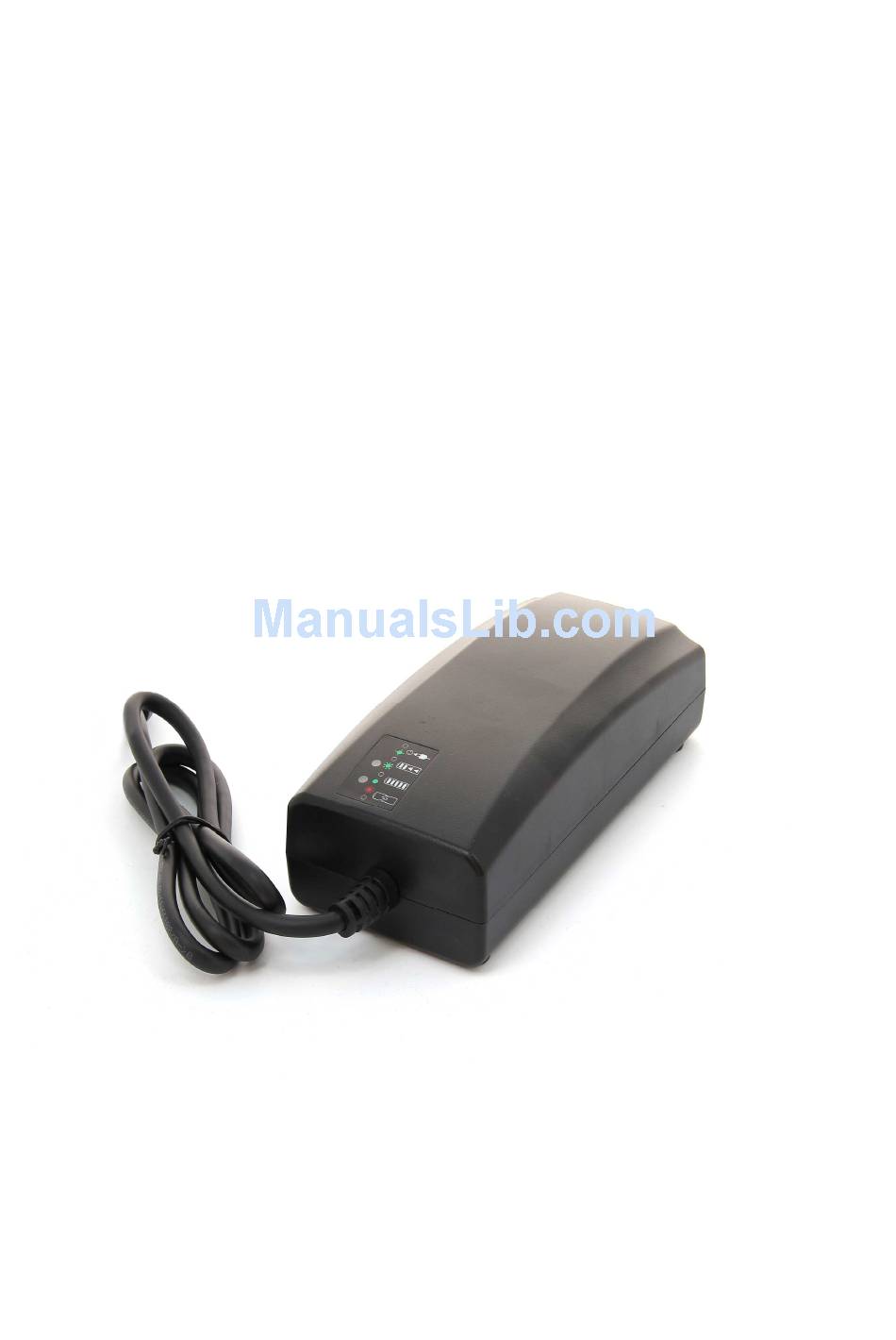

BEDIENUNGSANLEITUNG / OPERATING INSTRUCTION

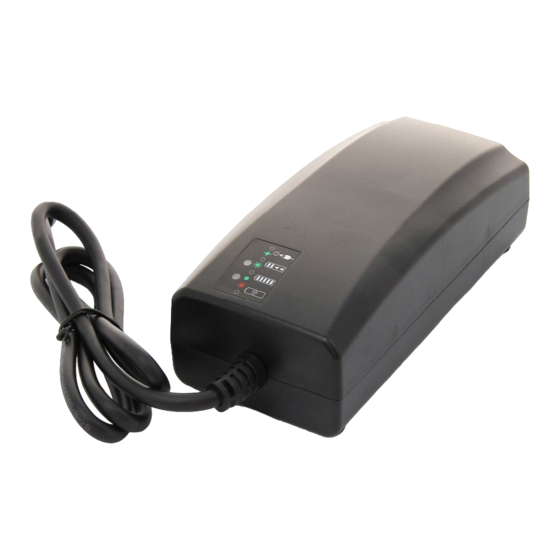

LADEGERÄT / CHARGER 42Vdc 4A
Artikel Nr. / Part No. 24555-x
Geeignet zum Laden eines
10 Zellen in Serie / 36V, max. 25Ah Li-Ion Akkupack
Suitable to charge a
10 cells in serial / 36V, max. 25Ah Li-Ion Battery pack
Bedienungsanleitung vor Gebrauch sorgfältig lesen! Read
this operating instruction carefully before use!
Advertisement
Table of Contents
Summary of Contents for BMZ Drive Systems 24555 series
- Page 1 BEDIENUNGSANLEITUNG / OPERATING INSTRUCTION LADEGERÄT / CHARGER 42Vdc 4A Artikel Nr. / Part No. 24555-x Geeignet zum Laden eines 10 Zellen in Serie / 36V, max. 25Ah Li-Ion Akkupack Suitable to charge a 10 cells in serial / 36V, max. 25Ah Li-Ion Battery pack Bedienungsanleitung vor Gebrauch sorgfältig lesen! Read this operating instruction carefully before use!
- Page 2 General Safety Instructions Read these operating instructions carefully before use! Improper handling of Lithium Batteries may cause fire, explosion or chemical danger. Check battery manufacturer instructions. Charge only Li-Ion battery packs. Do not charge Lead Acid-, NiCd- NiMh or non-rechargeable primary batteries. Connect the charger to a suitable mains supply, only.
- Page 3 Functions 1. This charger is suitable to charge a 36 Volt Li-Ion battery pack, 10 cell in serial. The max. charge current is 4 A. The max. capacity of the battery pack can be 25 Ah. The charger has an overload, short circuit, overvoltage and wrong polarity protection.
- Page 4 5. If the battery pack is fully charged the charger cuts off. The green LED will give a steady light and indicates the full battery pack. 6. The charger has an internal temperature control that protects the charger at to high ambient temperature as well as continuous overload.
