- Page 1 Light-Manager Air Quickstart Guide...
-
Page 3: Overview And Scope Of Delivery

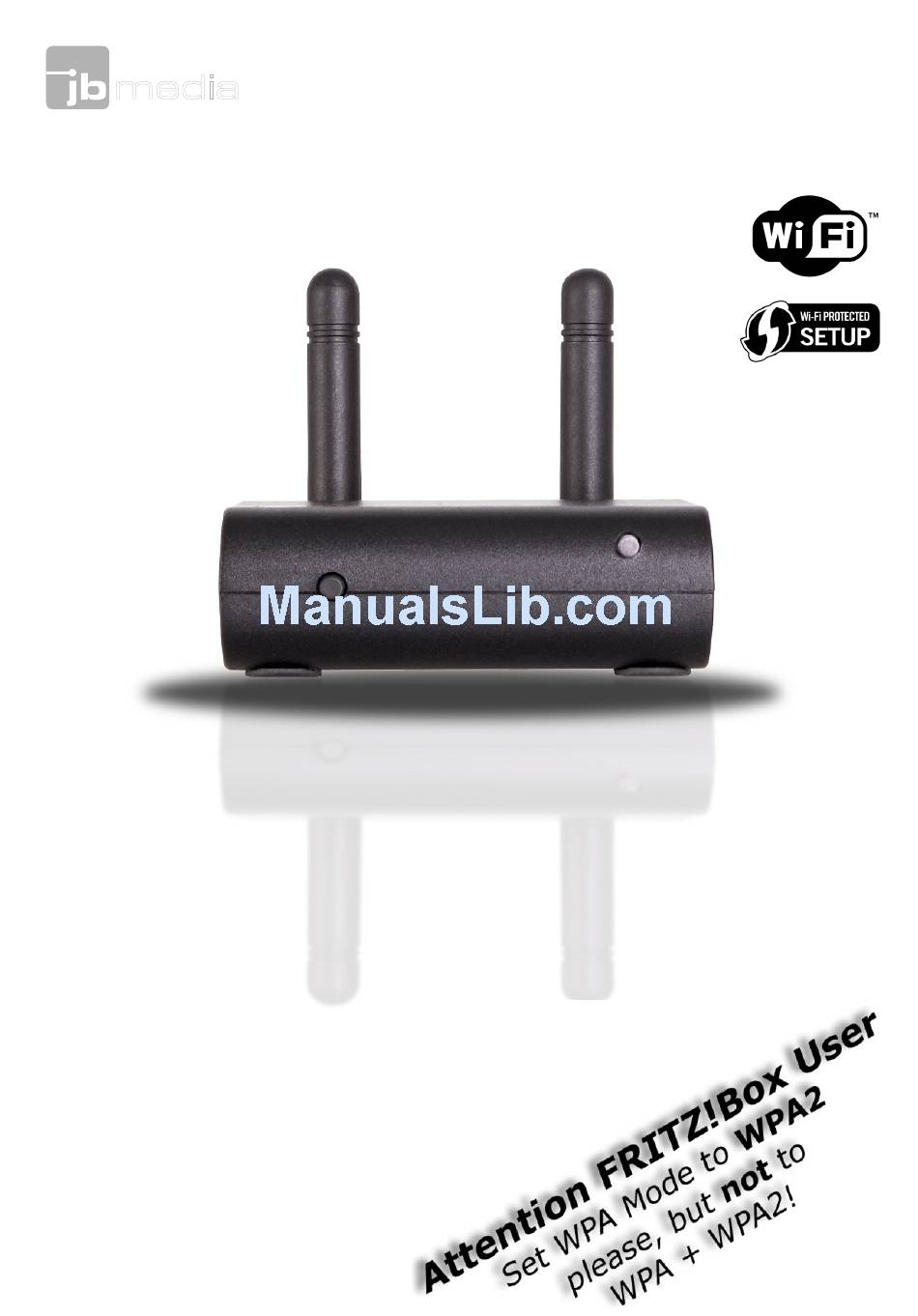

• Wi-Fi compatibility The Light-Manager Air uses the 802.11g standard (54 Mbit) with WPA2 encryption on the channels 1-11. Please ensure that your access point is configured accordingly. The network type can be set to any mode including g, for example 802.11 n+g. - Page 4 Note: The encryption type must be set to WPA2. The outdated mixed mode WPA+WPA2 is not supported. This is especially important for FRITZ!Box routers which usually come with mixed mode enabled by default. Setup with WPS A comfortable method to connect the Light-Manager to your Wi-Fi network is by using WPS (Wi-Fi Protected Setup).
- Page 5 Right after power has been plugged in, the Light-Manager creates its own Wi-Fi network called Light-Manager Air. You can connect to this network with your smartphone, tablet or PC. There is no password required.
-
Page 6: Reset To Factory Defaults
Possible errors during connection establishment If the LED flashes in red during connection establishment then there is an error. The number of times it flashes in red gives information about the error source. 1x Blinking: the network name (SSID) is wrong •... - Page 7 The configuration of the Light-Manager is done with the software airStudio which can be found in the download section of www.jbmedia.de free of charge. On the left side of the main window there is a table which shows the whole configuration.
- Page 8 Manual scene: Triggers by a press of a button in the web interface or on an • infrared remote control Timer: Triggers at fixed points of time or by astro function • Temperature: Triggers by over- or underrun of inside or outside temperature •...
- Page 9 To start this scenario with a Logitech Harmony remote control, please add the device Light-Manager Air from the Logitech database to your remote control. This will install buttons with the names L001 until L255 on your Harmony. The number behind the letter L corresponds to the scene number configured in AirStudio.
-
Page 10: Astro Function
Timer With the integrated real time clock of the Light-Manager it is possible to trigger scenarios at certain points of times at certain days. The internal clock of the Light-Manager is synchronized with an Internet time server resulting in a very accurate time adjustment at any time. The option Simulate presence will move points of time in the range of +/- 60 minutes randomly. - Page 11 You can define your location in airStudio under Options -> Astro function comfortably by a Google maps application. The hops in the curves are changes from summer to winter time and back. For control purposes the dusk and dawn times for the current day are displayed in the lower right corner of the window.
- Page 12 Temperature Scenarios can be triggered when the temperature rises above or falls below a certain level. For this purpose the Light-Manager measures temperature every minute and triggers scenarios if required. This function is useful to control a fan or electric blinds for example.
-
Page 13: Front Button
A very powerful feature is the ability to trigger scenarios by signals of RF transmitters, e.g. wall switches, motion detectors, magnet switches, brightness detectors or other components. To create such a scenario it is sufficient to send an RF signal with one of these components. - Page 14 The Light-Manager allows getting a notification by e-mail when a scenario has been executed. This is especially suitable for scenarios which are triggered by sensors. So you could get an e-mail as soon as a window or a door has been opened or motion has been detected.
- Page 15 Before you can select an actuator from the drop down list it has to be added to the actuator administration. To get there click on the little button next the drop down list. The actuator administration will show up in a new window. In the upper part of the window all actuators and zones are listed which have been added already.
- Page 16 areas of your home. Below the table there are tabs for each supported system. On these you can configure each actuator. Please note that some tabs are meant for more than one brand. So the InterTechno – Trust tab is also made for brands like COCO, KlikAanKlikUit, Trust, HomeEasy UK, Elro, Chacon, Nexa and more.
- Page 17 Markers Markers are a powerful tool for advanced programming technics. Markers are variables which can have the values 1 (ON) and 0 (OFF) only. The value of each marker can be altered by actions within scenarios. This makes it possible to visualize certain information in the marker section of the web interface.
-
Page 18: Transferring The Configuration
Transferring the configuration When configuration is completed it has to be transferred to the Light-Manager. This is done with the Transfer button. Finally the Light-Manager is ready for action. A click on the Browser button opens up the web interface in the default browser instantly. There it can be verified and used instantly. - Page 19 temperature is shown as well as the current time, date and wind speed. Below the head line there are several areas which can be opened and closed individually. The first area includes all scenes defined in airStudio. The adjacent areas are the zones, defined in the actuator administration of airStudio.
- Page 20 http://IP-address/?user=xxx&pass=yyy (Example: http://192.168.1.100/?user=admin&pass=123456). Afterwards select Add to home screen as described before. From now on the web app will use this data automatically. We recommend to delete the browser history eventually as the login data would show up there. media...
- Page 21 Manager setup Extended settings. From interface is always available under the shown URL. If a different port than port 80 is used, the port number has to be appended with a colon. So the final URL might be: http://0123456789ab.dns.jbmedia.de:100 media...
- Page 22 As this URL is not easy to remember, it is useful to send the URL to yourself by e-mail. By double click it will be opened in the default browser automatically. This URL can also be used for other devices in your household, which you might want to access online. By using different ports an unlimited number of devices like IP cams can be connected this way.
-
Page 23: Technical Data
Technical data Operating voltage: 5 Volts Power consumption: ca. 0.9 Watts Dimensions (W x H X D): ca. 6 x 6 x 2 cm Wi-Fi types: Infrastructure and Virtual Access Point Wi-Fi standards: 802.11 g with WPS function Wi-Fi channels: 1 – 11 Wi-Fi encryption: WPA2 Radio transmission frequencies: 433.42, 433.92 and 868.35 MHz Radio reception frequencies: 433.42, 433.92 and 868.35 MHz... - Page 24 Dreherstrasse 24 42899 Remscheid Germany jbmedia...
