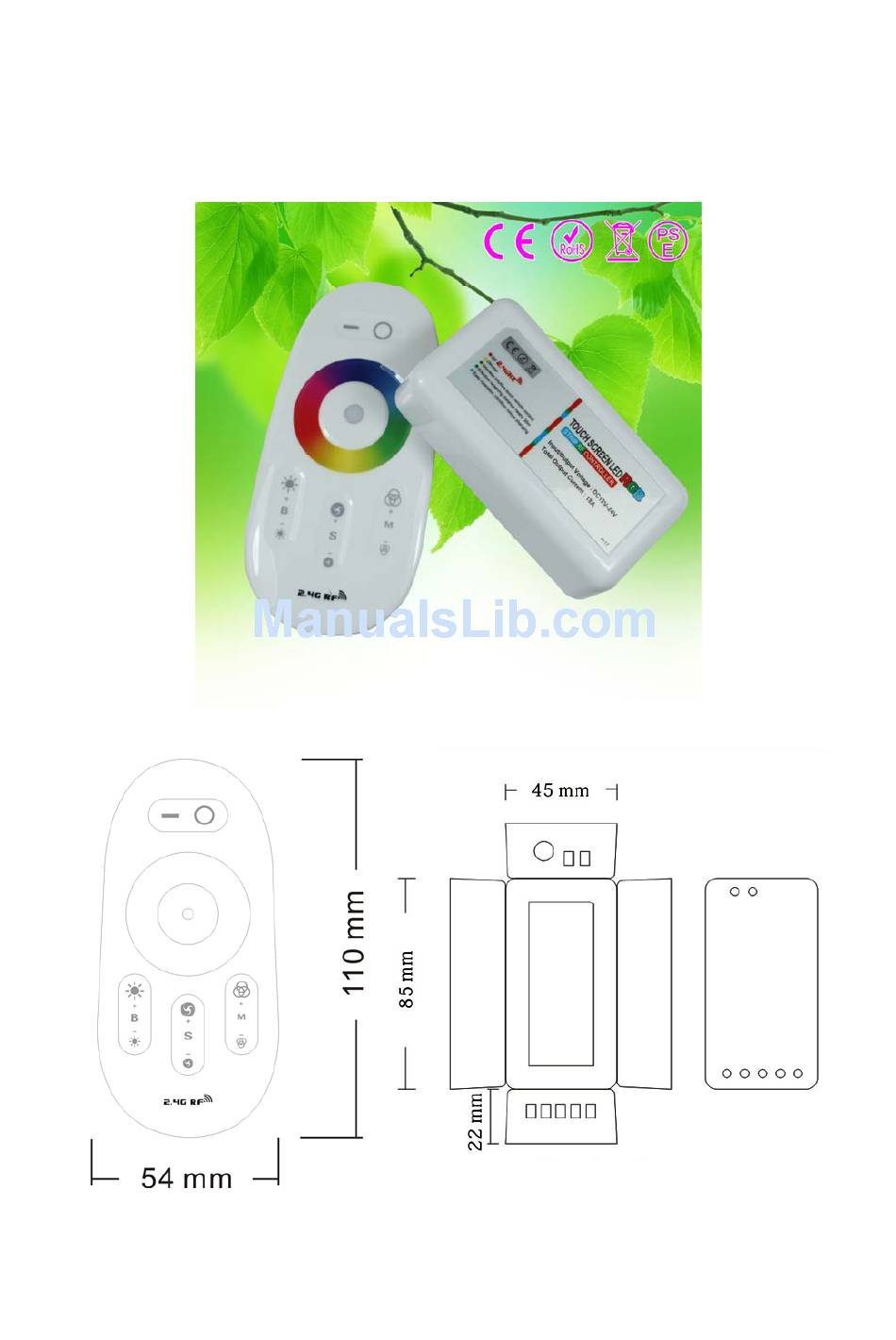

- Page 1 2.4G Touch Screen RGBW LED Control System...
- Page 2 Welcome to use Touch Screen RGBW LED Control System,please read the instruction carefully before using. I .Product Description This system is a high-performance RGBW LED touch remote controller, adopting the most advanced PWM control technology, controlling all RGBW LED products with Five lines and four circuits( common anode),owning 640 thousand colors and 20 automatical changing modes to choose.
- Page 3 II. Technical Data Size 110×52×20mm Power AAA×2 Remote Material Fabrication processing Multicolor printing & UV varnish Size 85×45×23mm Working voltage 12V～24V Control way R G B W four channels Controller Max load per channel Output Connection Common anode Telecontrol distance 20--30 meters Programs 20 kinds...
- Page 4 IV. Program List Numbe Mode Brightness Speed State Remark State Static white color Adjustable Unadjustable White only Color /white static coexis Adjustable Unadjustable Color ring free to choose, Brightness adjusts color light only All colors gradual change Adjustable Adjustable White (off ) Four colors gradual change Adjustable Adjustable...
- Page 5 V.Programming(code clearing and code matching ) Code matching : For a new kit ( remote& controller), the remote can work only when it is programmed to the controller. Please follow the below instructions: Correctly connect the power supply, LED controller and LED load. Switch off the power, then switch on again, and press key 5 once (within 3 seconds) the moment you see the light is on.The LED light blinks three times slowly when it is done.
- Page 6 2.Please check the battery installation and controller(totally discharge the power), when you programme after switching off and switching on. VI.Connection: VII. Attention 1.Please check whether the input voltage of the constant voltage power supply is in accordance with the controller, and please check the connection of both the cathode and anode, otherwise the controller will be broken.
