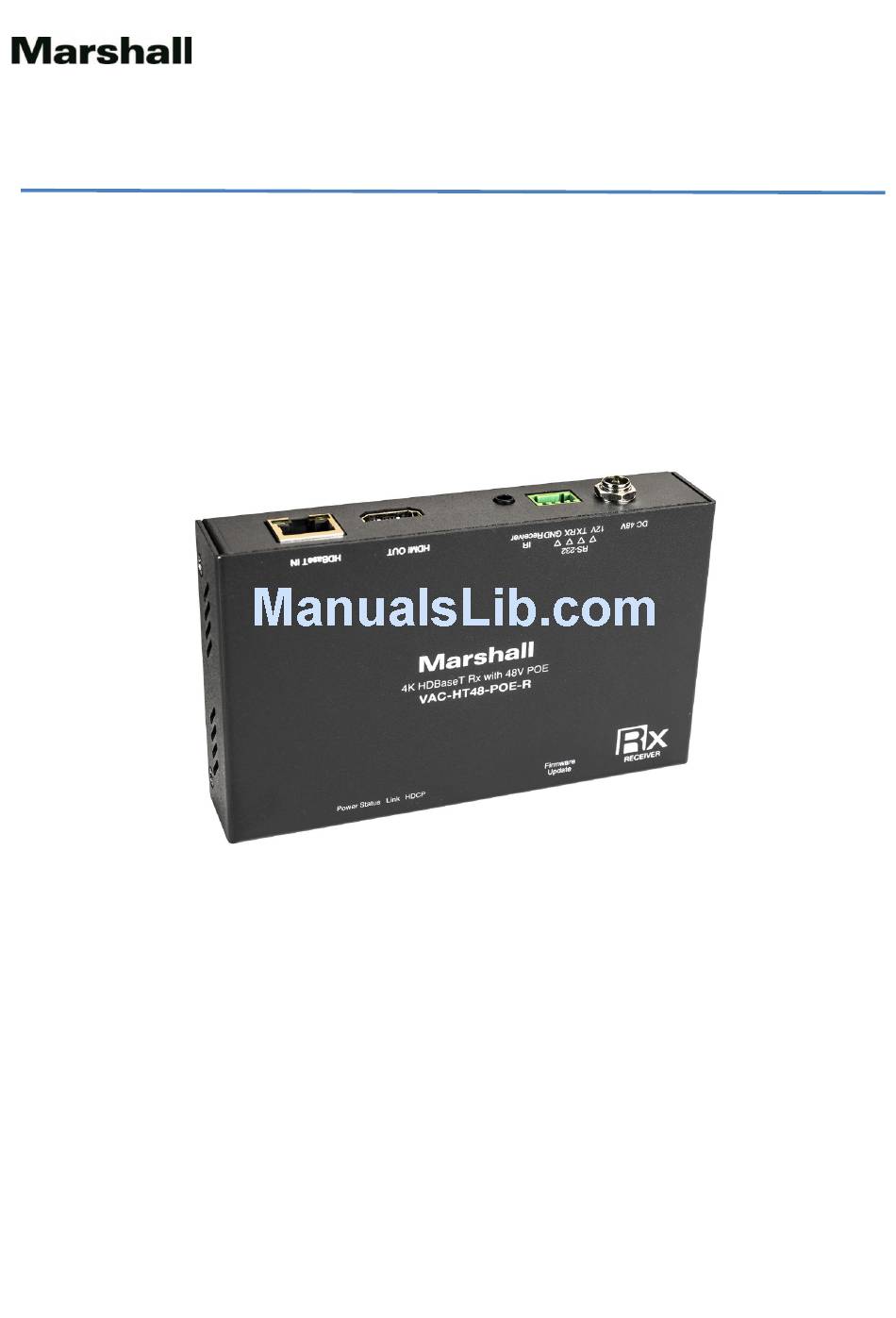

Page 1: User Manual
VAC-HT48-POE-R 4K HDBaseT HDMI Receiver User Manual v.1-2... -
Page 2: Table Of Contents
Warranty.............................……………………..7 IMPORTANT SAFETY INSTRUCTIONS: The VAC-HT48-POE-R 4K HDBaseT HDMI Receiver has been tested for conformance to safety regulations and requirements, and has been certified for international use. However, like all electronic equipment, the VAC-HT48-POE- R should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 3: Introduction
1. Introduction The VAC-HT48-POE-R 4K HDBaseT Receiver converts HDBaseT to HDMI and provides power & control options for local & remote devices. HDMI cables can only cover relatively short distances. The VAC-HT48-POE-R guarantees up to UHD 3840 x 2160p 29.97Hz video over Cat.6a/7 cable for distances up to 100m.*... -
Page 4: Specifications
4. Specifications VAC-HT48-POE-R Function 4K HDBaseT HDMI Receiver HDMI compliance HDCP compliance Video bandwidth Single-link 340MHz [10.2Gbps] Video support 1280 x 720p 50/50.94Hz 1920 x 1080i 50/59.94Hz 1920 x 1080p 50/59.94Hz 3840 x 2160 25/29.97Hz HDMI over UTP Cat.5e/6: up to 1920 x 1080p 59.94Hz 100m Cat.6: up to 3840 x 2160p 29.97Hz 70m... -
Page 5: Connection Diagram
5. Connection Diagram 4K HDBaseT HDMI Receiver... -
Page 6: Panel Descriptions
6. Panel Descriptions Front Panel LED: Power LED, Status LED, Link LED, HDCP LED (1) Power LED: Always ON = OK (2) Status LED: Blinking = OK (3) Link LED: Always ON = OK (4) HDCP LED: Always ON = HDCP ON Blinking = HDCP OFF USB Type B jack for firmware updates Dip Switch:... -
Page 7: Notice
8. Notice 1. The transmission length is largely affected by the type of CAT5e/6/6a/7 cables, the type of HDMI sources, and the type of HDMI display. The testing result shows solid UTP cables (usually in the form of 300m [1,000ft] bulk cables) can transmit a lot longer signals than stranded UTP cables (usually in the form of fixed length patch cords). - Page 8 A division of Marshall Electronics, Inc. 20608 Madrona Avenue Torrance, CA 90503 Phone: (310) 333-0606 / (800) 800-6608 Fax: (310) 333-0688 www.marshall-usa.com support@marshall-usa.com...
