Geermarc CL7350 OPTOCLIP Quick User Manual

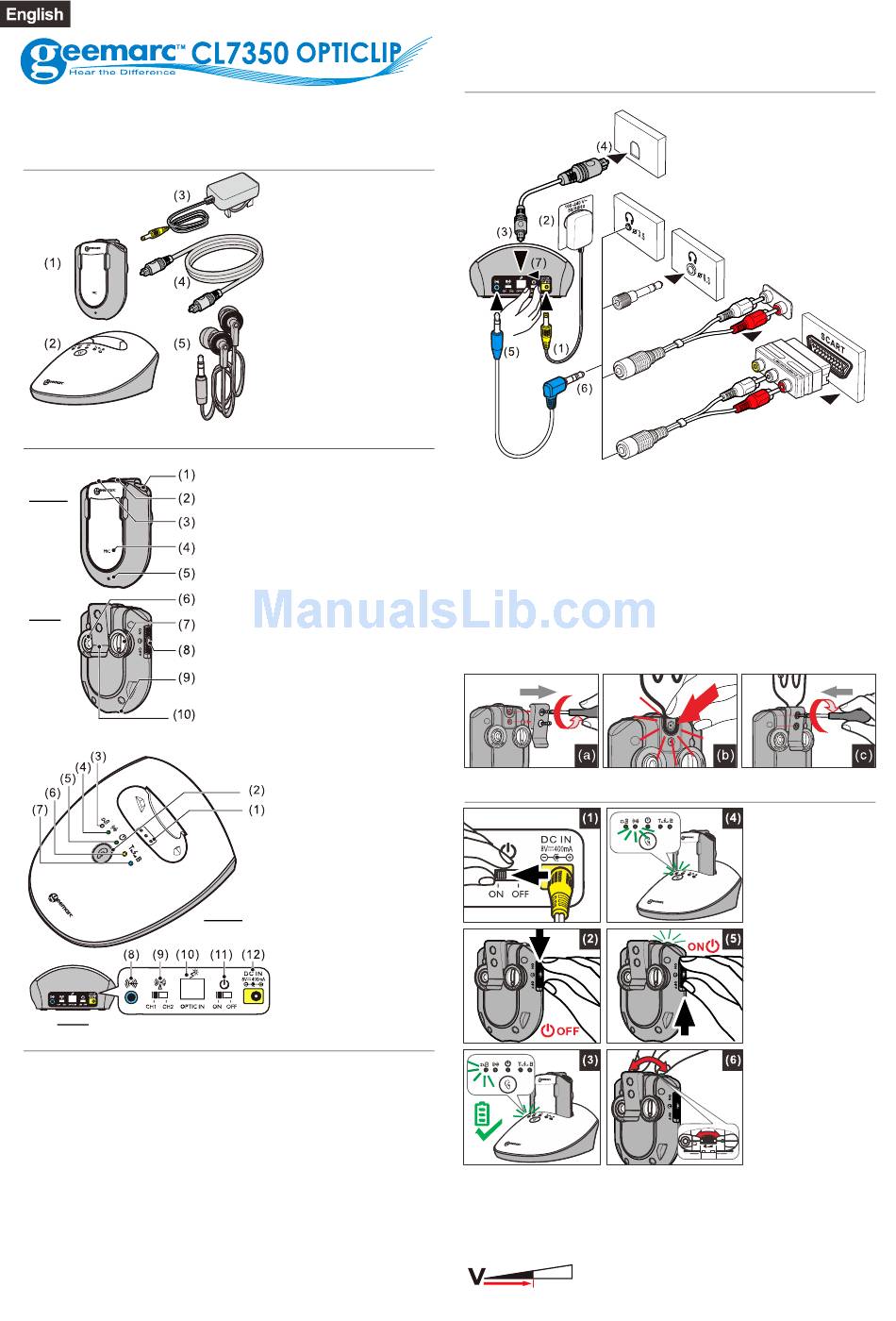

QUICK USER GUIDE
!!! Please refer to our website: www.geemarc.com for an up to date user guide, as
there may be important updates and changes you need to be aware of !!!
PACK COMPONENTS
Description
Function Identification: TV Receiver
FRONT
REAR
Function Identification: Charging Cradle
REAR
INTRODUCTION
The Geemarc Wireless Audio Listener is an audio amplification system specifically designed
for people with hearing difficulties.
The Geemarc Audio Listener can be used with all kinds of audio systems for interference
-free listening enjoyment – TV set, Smartphone, DVD player, CD player, Hi-Fi system, etc.
Audio output from a TV or audio device is transmitted by the Charging Cradle, the wireless
receiver receives the signal and amplifies the audio sound for the listener.
● The listener's comfort and long-term enjoyment has been built into every feature of the
Geemarc Wireless Audio Listener:
● Rich, adjustable audio quality:
o Broad audio bandwidth;
o Adjustable bass, treble and balance to compensate for hearing loss.
● Up to 25 meters transmit-receive range keeps you within hearing distance all over the
house and garden;
● Auto-tune button on your Receiver–tune in for the best sound exactly where you are;
● Listen and keep in touch with your surroundings:
o Multiple Receivers can be paired with one Charging Cradle;
o Single-touch Mute function switches the Audio Listener into a conversation assistant
enabling you to talk with and listen to the people around you with the receiver on, taking
advantage of its built-in audio amplifier to hear everything better.
● Up to 6 hours of rechargeable battery life per full charge – never lose the soundtrack in
(1) TV Receiver (with Belt Clip)
(2) Charging Cradle and
Transmitter
(3) Power Supply
(4) Optical Cable
(5) Ear Phones
(1) 3.5mm Audio out
(2) Volume Control
(3) Power/Signal LED Indicator
(4) Mic / Audio mode
(5) Microphone
(6) Auto Tune Button for Frequency
Channel
(7) Sound Balance Control
(8) Power On/Off Switch
(9) Battery Contact
(10) Belt Clip
(1) Charging Pins
(2) Tone Adjustment
(3) LED Indicator: Battery
Charge (Red = charging,
Green = fully charged)
(4) LED Indicator (Green):
Audio Signal
(5) LED Indicator (Green):
Power
(6) LED Indicator (Yellow):
Treble enhanced
(7) LED Indicator (Blue): Bass
FRONT
enhanced
(8) Audio In
(9) Frequency Channel
Selector (CH1 or CH2)
(10) Optical In Socket
(11) Power ON/OFF
(12) DC In Socket
1
mid-program;
● Only 3 hours to fully recharge the Receiver simply by replacing the Receiver in its Charging
Cradle.
INSTALLATION
Transmitter
(1) Connect the Power Supply to the DC IN Socket located on the Charge Cradle rear panel.
(2) Connect the Power Supply to an electricity socket (100-240V~50/60Hz).
(3) Connect one end of the Optical Cable to the rear panel of the Charge Cradle.
(4) Connect the other end of the Optical Cable to your Audio Source (e.g. TV set, Hi-Fi
system) with Optical Output.
(5) Accessories for items (5) and (6) in above drawing are not provided in the pack
components.
(6) If your Audio Source does not have an optical socket, then use one of the following
Adapters (not provided in the pack components) that connects to the Audio In of the
Transmitter.
• 3.5mm to 3.5mm Audio Cable
• RCA Adapter Cable
(7) On the rear panel of the Charging Cradle, switch the Power ON/OFF Switch to ON. The
green Power Indicator LED will glow immediately.
When the audio signal is detected from the Audio Source, the Green LED Signal Indicator
will glow constantly.
Lanyard installation
OPERATION
continuously (see figure (4) at right).
2. Put the Ear Phone plug into the 3.5mm phone jack of TV Receiver. On the TV Receiver,
switch the ON the On/Off Switch (see figure (5) at right). The green signal LED Indicator will
glow continuously.
3. Adjust the Volume to the desired sound level (see figure (6) at right), then fit the earbuds in
your ears.
NOTE: Make sure the volume on your Audio Source (TV set or other audio device) is turned
up to at least half of its full volume to get good sound quality in your Earbuds.
Optical Jack
3.5mm headphone
socket
6.3mm headphone
socket
RCA socket
• 3.5mm to 6.3mm Adapter Plug
• SCART Adapter
Initial Operation
1. Make sure the CL7350 is
plugged into the mains
supply.
2. Switch ON the CL7350 –
on the rear of the Charging
Cradle (see figure (1) at
right).
3. Place the TV Receiver in
the Charging Cradle for at
least three hours to allow it
to fully charge.
• Make sure
Receiver is switched OFF
(see figure (2) at right).
• The LED Indicator glows
red during charging.
• It will glow green after the
battery is fully charged (see
figure (3) at right).
4. After the three hours
have passed
charging LED has turned
green, you can proceed to
use the device.
Routine Operation
1. Switch on the Audio
Source (TV set or audio
device) that the Transmitter
is connected to. The Signal
LED Indicator will glow
2
SCART
socket
the TV
and the
