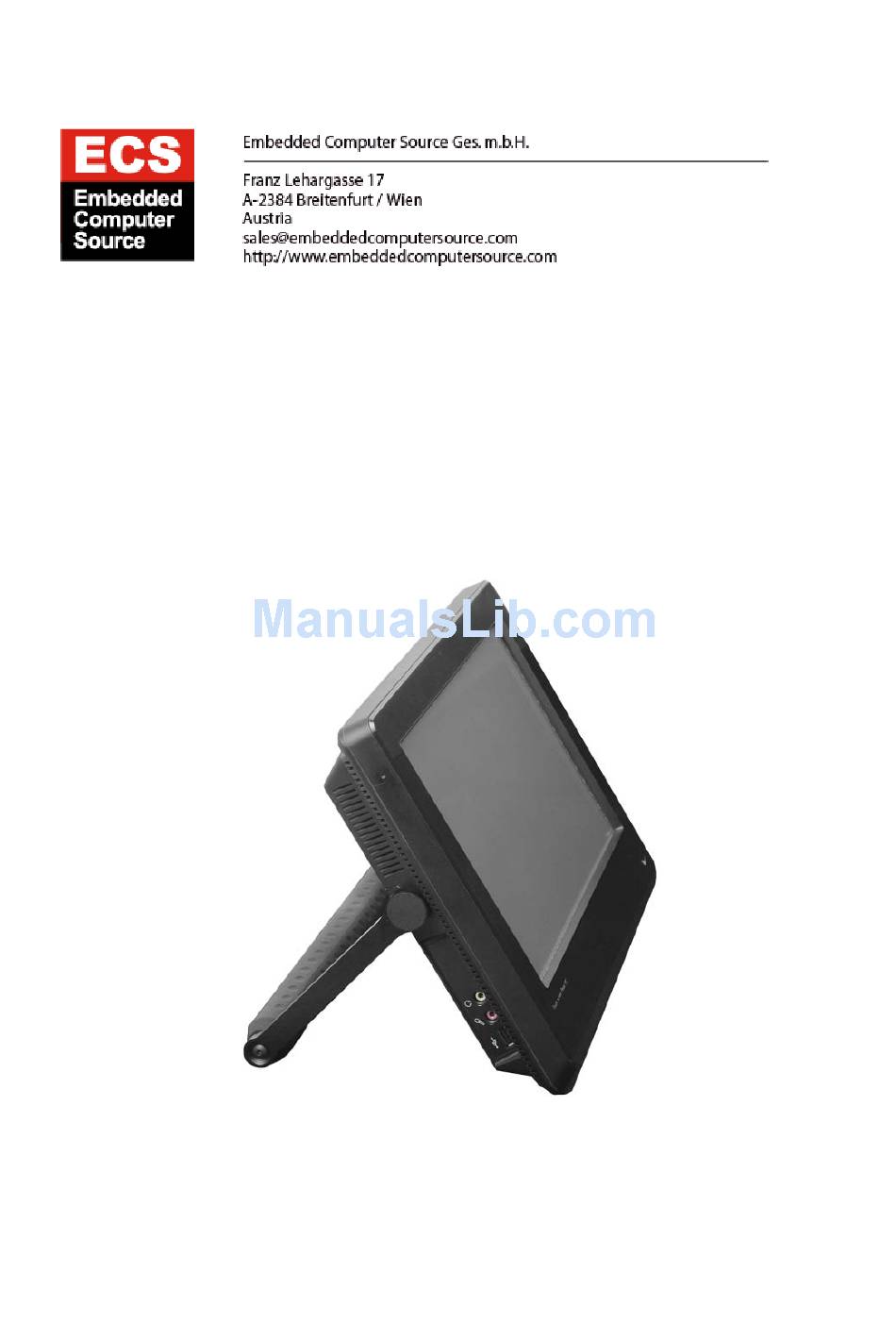

  • Page 1 Preliminary V13I06C/V13I10C User’s guide PPC1310RT  User’s Guide ...

  • Page 2: Safety Instructions

    Preliminary V13I06C/V13I10C User’s guide Safety Instructions ◆ Contents Before You Begin ................ix When Working Inside a Computer ..........x Preventing Electrostatic Discharge ..........xi...

  • Page 3: Before You Begin

    Preliminary V13I06C/V13I10C User’s guide Before You Begin ◆ Before handling the VIPANO 13, read the instructions and safety guidelines on the following pages to prevent damage to the product and to ensure your own personal safety. Refer to the “ Advisories” section in the Preface for advisory conventions used in this user’...

  • Page 4: When Working Inside A Computer

    Preliminary V13I06C/V13I10C User’s guide When Working Inside a Computer ◆ Before taking covers off a computer, perform the following steps: 1) Turn off the computer and any peripherals. 2) Disconnect the computer and peripherals from their power sources or subsystems to prevent electric shock or system board damage.

  • Page 5: Preventing Electrostatic Discharge

    Preliminary V13I06C/V13I10C User’s guide Preventing Electrostatic Discharge ◆ Static electricity can harm system boards. Perform service at an ESD workstation and follow proper ESD procedure to reduce the risk of damage to components. We strongly encourage you to follow proper ESD procedure, which can include wrist straps and smocks, when servicing equipment.

  • Page 6: Table Of Contents

    Preliminary V13I06C/V13I10C User’s guide Preface ◆ Contents How to Use This Guide ..............xv Advisory Conventions ..............xvi Unpacking .................. xvii Regulatory Compliance Statements ........... xviii Warranty Policy ................xix Limited Warranty ..............xix Return Procedure ..............xix Limitation of Liability............. xix Maintaining Your Computer ............

  • Page 7: How To Use This Guide

    Preliminary V13I06C/V13I10C User’s guide How to Use This Guide ◆ This guide is designed to be used as step-by-step instructions for installation, and as a reference for operation, troubleshooting, and upgrades. The following is a summary of the chapter contents: ◆...

  • Page 8: Unpacking

    Preliminary V13I06C/V13I10C User’s guide Unpacking ◆ When unpacking, follow these steps: 1) After opening the box, save it and the packing material for possible future shipment. 2) Remove all items from the box. If any items listed on the purchase order are missing, notify customer service immediately.

  • Page 9: Regulatory Compliance Statements

    Preliminary V13I06C/V13I10C User’s guide Regulatory Compliance Statements ◆ This section provides the FCC compliance statement for Class B devices. FCC Compliance Statement for Class B Devices The product(s) described in this user’ s guide has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 10: Maintaining Your Computer

    Preliminary V13I06C/V13I10C User’s guide Maintaining Your Computer ◆ Environmental Factors Temperature ◆ The ambient temperature within an enclosure may be greater than room ambient temperature. Installation in an enclosure should be such that the amount of air flow required for safe operation is not compromised. Consideration should be given to the maximum rated ambient temperature.

  • Page 11: Power Protection

    Preliminary V13I06C/V13I10C User’s guide ◆ Power Protection The greatest threats to a system’ s supply of power are power loss, power spikes, and power surges caused by electrical storms, which interrupt system operation and/or damage system components. To protect your system, always properly ground power cables and one of the following devices.
  • Page 12 Preliminary V13I06C/V13I10C User’s guide Chapter 1 ◆ Product Introduction Contents Overview ..................1-3 Checklist ................1-4 Features ................1-5 Product Specifications ............... 1-6 Mechanical Layout ..............1-7 Front and Side Panel ............1-7 I/O Panel ................1-7 Mechanical Dimensions ............1-8...

  • Page 13: Overview

    Preliminary V13I06C/V13I10C User’s guide Overview ◆ Vipano 13 series, the ultimate solution for All-in-one Touch Panel PC system, compact, slim and stylish design dedicated for highly human interface purpose. 1GHz Celeron/512K L2 Cache performs all you need in 1280x768 resolution, connecting by internal 802.11b/g,and the internal webcam and Microphone make your vision surf over internet applications, For some certain applications, RFID, SD Card reader bring your business active in most efficiency way.

  • Page 14: Checklist

    Preliminary V13I06C/V13I10C User’s guide ◆ Checklist 1. Take out the VIPANO 13 series unit from the carton box, check if the unit is properly secure in the plastic bag. 2. Check the contents of the carton box: Panel PC AC power adapter (incl. wall socket cord)

  • Page 15: Features

    Preliminary V13I06C/V13I10C User’s guide ◆ Features ◆ Display The VIPANO 13 has a 13” TFT LCD display with WXGA resolution and 200 cd/m brightness and with a 5 wires Resistive type touch screen panel. ◆ Motherboard The VIPANO 13 implements a Mini-ITX motherboard with Intel® ULV Celeron® M 600MHz or 1.0GHz µFC-BGA (512KB L2 cache), Intel®...

  • Page 16: Product Specifications

    Preliminary V13I06C/V13I10C User’s guide Product Specifications ◆ System Intel Celeron-M 600MHz/1.0GHz 512K L2 Cache Chipset Northbridge Intel 852GM GMCH+ICH4 Memory DDR266 SODIMM up to 1GB 2.5" HDD storage Internal Storage 1x CompactFlash TypeⅡ socket Built in 2x1.5W speaker Audio Realtek ALC-655 AC’97 1x Fast Ethernet 2x USB2.0;1x Serial Port RS232...
  • Page 17 Preliminary V13I06C/V13I10C User’s guide Table 1-1. VIPANO 13 Specifications...

  • Page 18: Mechanical Layout

    Preliminary V13I06C/V13I10C User’s guide Mechanical Layout ◆ ◆ Front and Side Panel Figure 1-1. VIPANO 13 Mechanical Layout - Front and Side...

  • Page 19: I/O Panel

    Preliminary V13I06C/V13I10C User’s guide ◆ I/O Panel Figure 1-2. VIPANO 13 Mechanical Layout - I/O Panel...

  • Page 20: Mechanical Dimensions

    Preliminary V13I06C/V13I10C User’s guide ◆ Mechanical Dimensions Figure 1-3. VIPANO 13 Mechanical Dimensions...
  • Page 21 Preliminary V13I06C/V13I10C User’s guide Chapter 2 ◆ Assembly Contents VESA Mounting ................2-3 Desktop Mounting ..............2-4 Wi-FI Antenna Installation (optional) .......... 2-5...

  • Page 22: Vesa Mounting

    Preliminary V13I06C/V13I10C User’s guide VESA Mounting ◆ The VIPANO 13 comes with VESA FDMI 75 standard mounting holes as shown below. Use M4x5mm screws. Figure 2-1. VESA 75 mounting hole locations on the VIPANO 13...
  • Page 23 Preliminary V13I06C/V13I10C User’s guide Desktop Mounting(Optional) ◆ The VIPANO 13 comes with a desktop mounting bracket. Figure 2-2. Attach V13 optiona desktop mounting.

  • Page 24: Getting Started

    Preliminary V13I06C/V13I10C User’s guide Chapter 3 ◆ Getting Started Contents Power Connection ..............3-3 Operating System and Drivers ........... 3-4 Chipset Driver Installation ............. 3-4 Graphics Driver Installation ........... 3-4 Audio Driver Installation ............3-4 LAN Driver Installation ............3-5 Touch-Screen Driver Installation ...........

  • Page 25: Power Connection

    Preliminary V13I06C/V13I10C User’s guide Power Connection ◆ Connect the supplied the AC adapter to the system by inserting the DC connector of the adapter into DC power inlet on the I/O panel of the system as shown. Secure the connector by tightening the knurled screw on the DC connector.

  • Page 26: Operating System And Drivers

    Preliminary V13I06C/V13I10C User’s guide Operating System and Drivers ◆ The VIPANO 13 Series of Panel PC does not come with operating system and drivers pre-installed. After you have finished assembling your system and connected the appropriate power source, power it up using the ATX Power Switch and install the required operating system.

  • Page 27: Lan Driver Installation

    Preliminary V13I06C/V13I10C User’s guide ◆ LAN Driver Installation To install the LAN Driver, extract the contents of LAN_V13.rar, run the file “ e100exp.exe” , accept the license agreement, and save the files to the desired folder.
  • Page 28 Preliminary V13I06C/V13I10C User’s guide Update Driver. Open the Device Manager and R-click on Ethernet Controller and select When asked whether or not Install from a list or specific location to connect to Windows Update, select . Select and include the folder you Finish saved the installation files to above.

  • Page 29: Touch-Screen Driver Installation

    Preliminary V13I06C/V13I10C User’s guide ◆ Touch-Screen Driver Installation To install the Touch-Screen driver, extract the contents of Touch_V13.rar and run Setup.exe from the folder All_In_One_2k_XP_Vista_5.0.0.5017. Click through the menus, leaving “ Install PS/2 interface driver” unchecked, and choose “ None” for the calibration check.
  • Page 30 Preliminary V13I06C/V13I10C User’s guide Click “Yes” when asked to perform the 4 point calibration, then touch and hold down on each flashingx until it stops flashing and a beep is heard.
  • Page 31 Preliminary V13I06C/V13I10C User’s guide Click “OK” to exit Touchkit USB Controller. To access the Touch-screen Utility Help Documentation, to go Start>Programs>TouchKit>Document. ◆ Wi-Fi Driver and Utility Installation (optional) To install the optional Wi-Fi card driver, extract the contents of Wlan_V13.rar and run Setup.exe from the folder Ralink WLAN_071205.
  • Page 32 Preliminary V13I06C/V13I10C User’s guide ◆ RFID Driver and Utility Installation (optional) To install the optional RFID Driver,extract the contents of RFID_V13.rar and run PL-2303 Driver installer.exe, when asked to reboot system, click “ Yes” .
  • Page 33 Preliminary V13I06C/V13I10C User’s guide Chapter 4 ◆ Maintenance Contents Maintenance and Prevention ............. 4-3...

  • Page 34: Maintenance And Prevention

    Preliminary V13I06C/V13I10C User’s guide Maintenance and Prevention ◆ Your VIPANO 13 system requires minimal maintenance and care to keep it operating correctly. Occasionally wipe the system with a soft dry cloth. You should only remove persistent dirt by use of a soft, slightly damp cloth (use only a mild detergent).
  • Page 35 Preliminary V13I06C/V13I10C User’s guide Chapter 5 ◆ Interfaces Contents External Connectors ..............5-3...

  • Page 36: External Connectors

    Preliminary V13I06C/V13I10C User’s guide External Connectors ◆ For Rear Panel Connector locations, please refer to the diagram below. Keyboard/Mouse Connector (KM1: 6-pin Mini DIN): ◆ Table 2-21. Keyboard/Mouse Connector pin definition COM1 RS-232 Serial Port Connector (COM1: D-Sub 9-pin male): ◆...
  • Page 37 Preliminary V13I06C/V13I10C User’s guide USB0 Connector (USB1: Type A) ◆ Table 2-25. USB0 Connector pin definition VGA Display Connector (VGA1: D-Sub 15-pin female): ◆ Table 2-26. VGA Display Connector pin definition...
