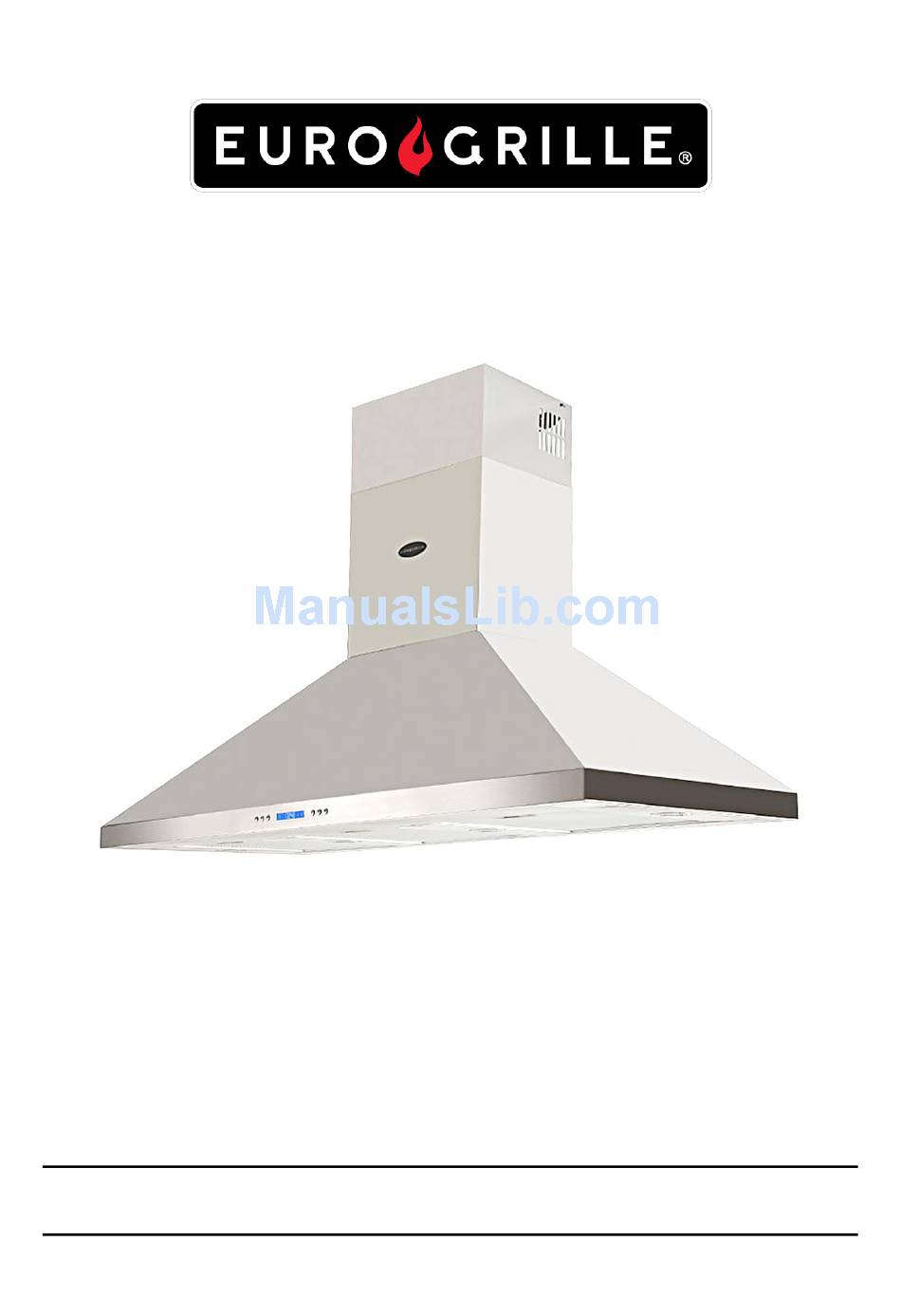

1500mm Wall Mount Range Hood
User Manual
[Revision 2.0 October 2017]
READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY
DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by
this manual may vary in appearance, assembly, inclusions, specifications, description and packaging.
E&OE
©2017 Eurogrille
Advertisement
Table of Contents
Summary of Contents for Eurogrille COKRHWEUGAS15
- Page 1 READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance, assembly, inclusions, specifications, description and packaging. E&OE ©2017 Eurogrille...
-
Page 2: Safety
• Do not attempt to alter the appliance. • The manufacturer is not responsible for any injuries to persons or animals or property damage that may be caused by the incorrect installation or use of this product. E&OE ©2017 Eurogrille... -
Page 3: Table Of Contents
Safety ............................. 2 Parts Identification ........................4 Included Items .............................. 4 Installation ............................. 5 Using the Range Hood ........................9 Setting the Clock ............................9 Using the Fan Timer ........................... 10 Maintenance ..........................10 Specifications ..........................10 E&OE ©2017 Eurogrille... -
Page 4: Parts Identification
#8 Self Tapping Screw / Wall Anchor (12) • Flue Cover (1) • #6 Self Tapping Screw (4) • Extension Flue Cover (1) • Vent Pipe (2) • Mounting Bracket (1) • Flue Support Bracket (1) • Flue Bracket (1) E&OE ©2017 Eurogrille... -
Page 5: Installation
Note: If the wall is gyprock or drywall, and the mounting bracket screws are to screw into the wooden frame behind the wall, make sure that the holes align with the wooden frame, or there is a suitable material behind the wall to accept the screws directly. E&OE ©2017 Eurogrille... -
Page 6: Vent
(4). Place the exhaust valves (5) in position over the seals and secure them using the removed screws. Figure 4 8. Refer to Figure 5. Place the end of the vent pipes (6) over the exhaust valves and secure them with 4 #6 self-tapping screws (7). E&OE ©2017 Eurogrille... -
Page 7: Flue Support
11. Refer to Figure 7. Bring the range hood up to the mounting bracket and carefully hook the slots on the rear of the range hood over the mounting brackets tabs, then allow the range hood to rest against the wall. E&OE ©2017 Eurogrille... - Page 8 13. Refer to Figure 8. Gently pull the flue extension (10) up from inside the range hood flue (8) until it reaches the ceiling. Secure it to the flue extension mounting bracket using 2 M4 x 20 screws (12). Figure 8 14. Connect the range hood to an electrical supply. It is now ready for use. E&OE ©2017 Eurogrille...
-
Page 9: Using The Range Hood
4. Press the Timer button – the minutes part of the time flashes – set the value using the Slow and Medium fan speed buttons. 5. Press the Timer button to save the setting and exit clock setting mode. E&OE ©2017 Eurogrille... -
Page 10: Using The Fan Timer
• If the product malfunctions, contact an authorised service centre. Specifications Electrical 240VAC / 50Hz Vent Tube Diameter 160mm Lamps 4 x 1.5W LED Fan Speeds Filters Aluminium, multi-layer Vent Tube Length 1.5m Power Cord Length 1.1m E&OE ©2017 Eurogrille... - Page 11 ©2017 Eurogrille. All rights reserved. No part of this document, including descriptive content, concepts, ideas, diagrams or images may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, scanning or recording, or any information storage and retrieval system, without express permission or consent from the publisher.
