Scantool OBDLink LX Bluetooth Quick Start Manual

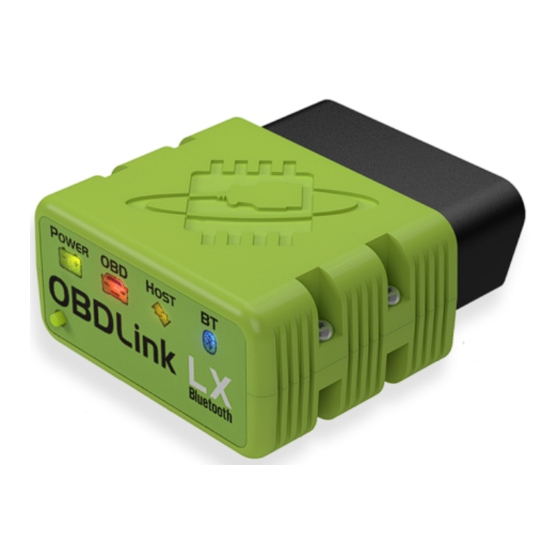

OBDLink LX Bluetooth
Android Quick Start Guide
1
Download & install OBDLink app
Scan the QR code or visit the URL from your Android
device to download the OBDLink app:
obdlink.com/app
Plug OBDLink LX into the diagnostic link
2
connector (DLC)
The DLC is usually found on the driver's side, under
the dash.
—Can't find your DLC? Visit
3
Turn ignition on
P OBD H
OWER OST
'Power' LED will turn ON, and the 'BT' LED will start
flashing slowly.
—LEDs are off? Check vehicle for blown fuses.
Open 'Settings' app, and
4
tap 'Wireless & networks'
Make sure 'Bluetooth' is enabled, then
5
tap 'Bluetooth settings'.
6
Press the 'Connect' button on OBDLink LX.
P
dlc-locator.com
'Connect'
button
The 'BT' LED will switch to a fast blink.
BT
Tap 'Scan for devices', and wait for
7
7
OBDLink LX to appear on the device list.
8
Tap 'OBDLink LX - Pair with this device'
7
[instructions continue on reverse]
OBD H BT
OWER OST
Attention!
You must complete steps 7, 8, and 9
within 2 minutes. If you need more
time, press the button again.
