Anemostat CTE-5101 Installation Manual

A I R D I S T R I B U T I O N

Mounting

General
CTE-5100 series thermostats require a scale plate
assembly and a cover, which must be ordered
separately. To ensure accurate temperature sensing,
mount thermostats on interior walls and away from
heat sources, sunlight, windows, air vents, and air
circulation obstructions (e.g., curtains and furniture).
These thermostats may be mounted horizontally or
vertically to a standard 2 x 4" (51 x 102 mm) handy
box using a HMO-5024/5026/5030/5031 backplate or
directly to a hollow wall using an HMO-5023 kit.

Electrical Box Mounting

1. Install, but DO NOT TIGHTEN, the HMO-
5024/5026/5030/5031 backplate to a handy box
using the two 6-32 screws (included).
2. Adjust and level the backplate using the slotted
mounting hole.
3. Tighten the two mounting screws.
4. Pull all thermostat wires and cable through the
backplate and decorative trim plate opening (of
the HMO-5024/5026/5030/5031). Be careful not to
damage the trim plate while wiring.
5. Connect the thermostat's wires according to its
particular application. See the Connections and
Wiring section.
6. Position the trim plate between the backplate and
the thermostat (with the cover removed).
7. Align the mounting holes and secure the
assembly with the two 6-32 x 2" self-tapping
screws (included).

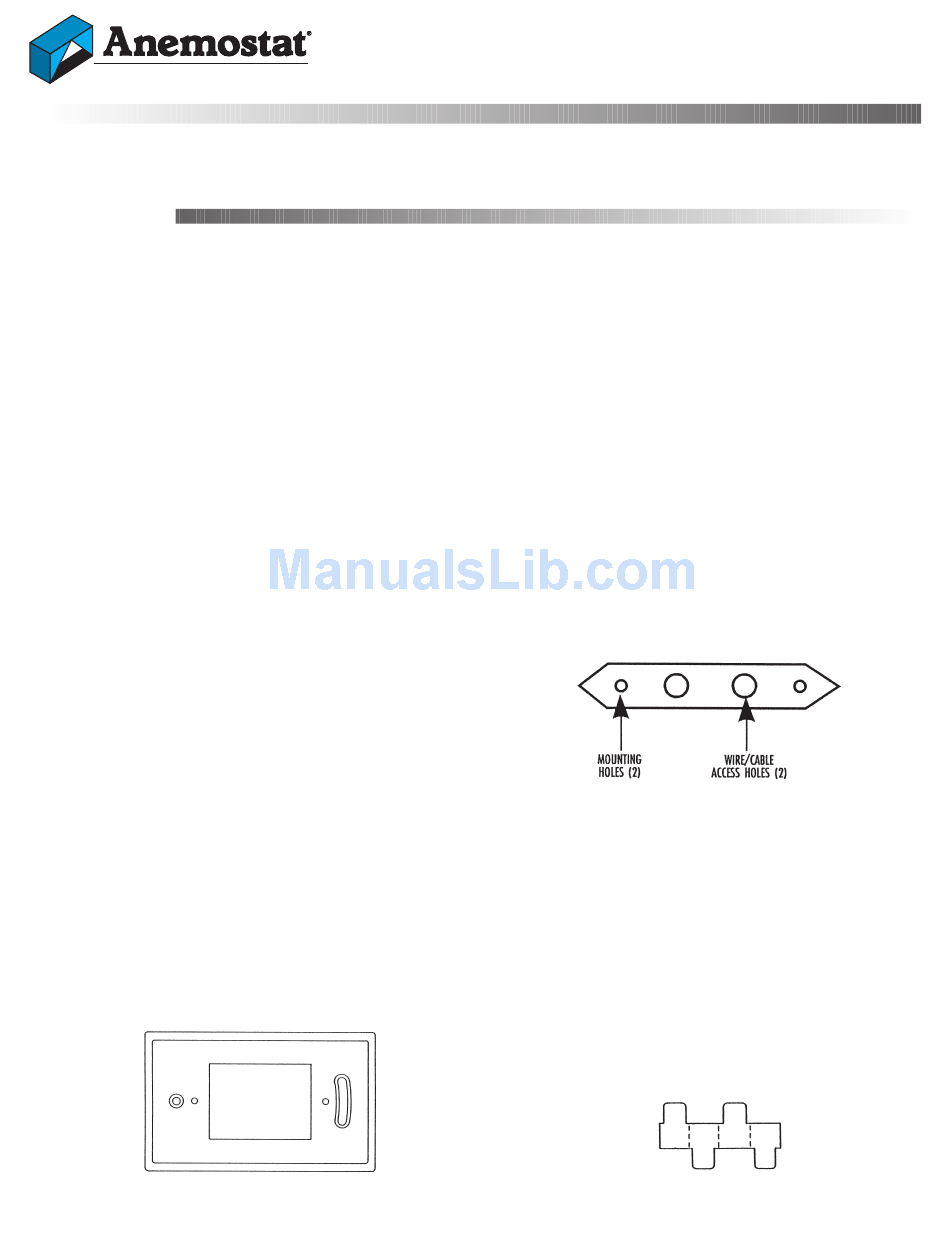

HMO-5024/5026/5030/5031 Back Plate
Anemostat, 1220 E. Watson Center Road, Carson, CA 90745
CTE-5100 Series

Installation Guide

Hollow Wall Mounting

Thermostats may be mounted on a hollow wall up to
5/8" thick using the HMO-5023 hollow wall mount-
ing kit.
1. Using the template, cut a 1-1/2 x 2-11/16" opening
2. Loosely mount the HMO-5023 bracket to the
3. Pull all thermostat wires or cable through the
4. Connect the thermostat wires according to its
5. Insert bracket diagonally, through the wall

Setpoint Stops

Optional setpoint stops can be used to lock or limit
the setpoint range. Each HFO-0027 setpoint stop
strip (accessory sold separately) contains four stops.
1. Break a stop from the strip by gently folding on
2. Insert a stop into the slider track on one or both
3. Repeat for second slider.
/ 310-835-7500
1
Electronic Room Thermostats
in the drywall.
thermostat (with cover removed) using the two
6-32 x 2" screws.
bracket's wiring/cable access hole(s).
particular application. See the Connections and
Wiring section.
opening, and then center and tighten the screws.
HMO-5023 Hollow Wall Mounting Kit (Screws Not Shown)
the seam with pliers.
sides of the slider.
HFO-0027 Setpoint Stop Strip
