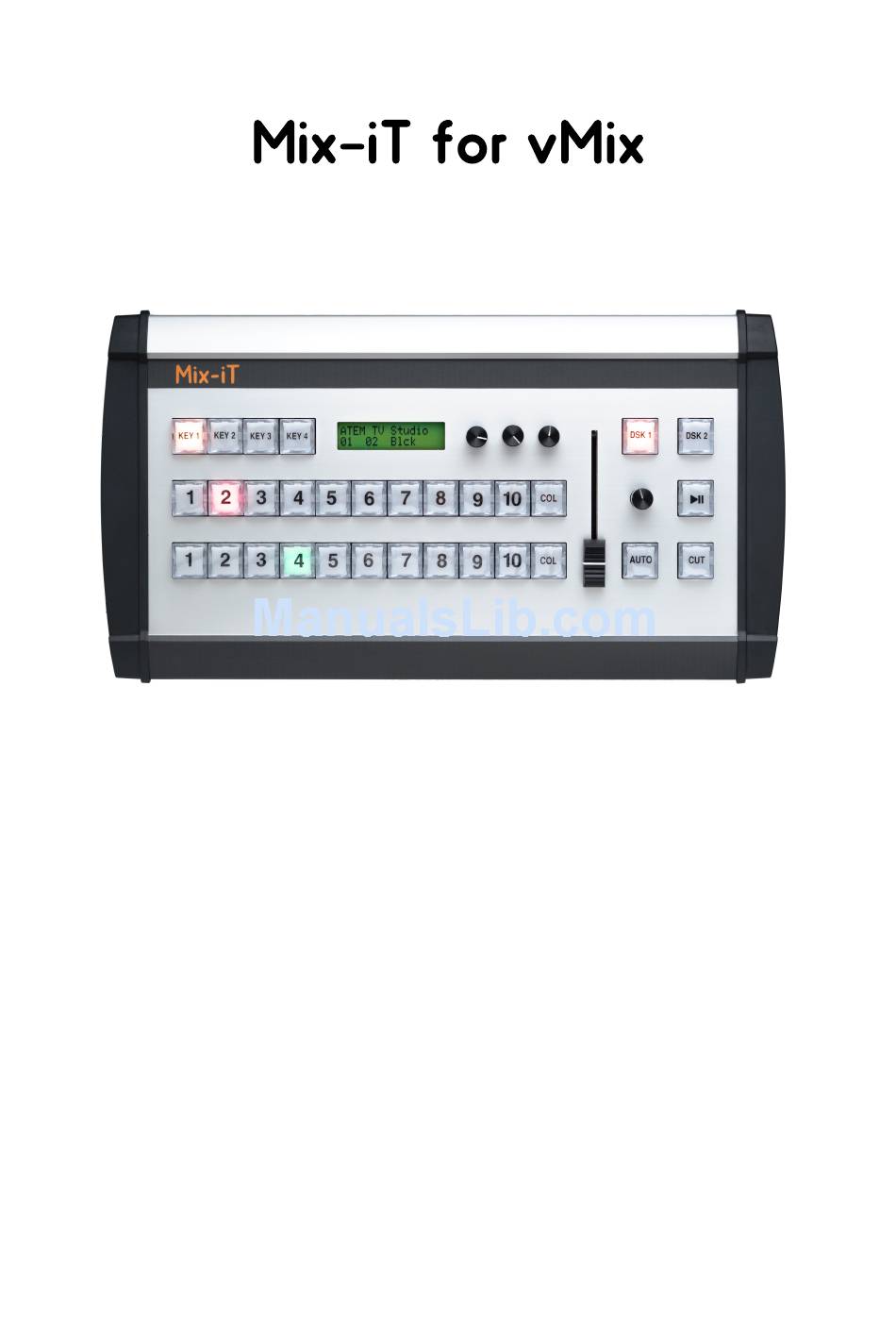

- Page 1 User Guide Mix-iT.vMix v1.0 April 2018 User Guide Mix-iT for vMix v1.0 - 1 -...
-
Page 2: Declaration Of Conformity
FCC CFR 47 part 15:2013 EN61000-3-2:2014 EN61000-3-3:2013 EN61000-4-2 EN61000-4-3 EN61000-4-4 EN61000-4-5 EN61000-4-6 EN61000-4-8 EN61000-4-11 as stated in report: ART-20150603-I1 tested at BICON Laboratories BV in accordance with EMC-directive 2004/108/EC Manufacturer/representative: Function: hard/software developer Date: 11-9-2015 User Guide Mix-iT for vMix v1.0 - 2 -... -
Page 3: Table Of Contents
SIDE PANEL ......................7 CONNECTING MIX-IT ..................7 MENUS.........................8 IP CONFIG MENU ....................8 BUTTON MAP MENU ..................10 AUX MENU......................11 MACROS ..........ERROR! BOOKMARK NOT DEFINED. UPDATE FIRMWARE ..................12 SPECIFICATIONS....................13 DIMENSIONS .....................13 SERVICE & SUPPORT ..................14 User Guide Mix-iT for vMix v1.0 - 3 -... -
Page 4: Introduction
Mix-iT may be connected directly to the computer running vMix, or can be connected via a network switch. After the network settings are made, Mix-iT can be used to control vMix right away. By mapping buttons and rotaries, you can fine-tune it to your needs. -
Page 5: Front Panel
By pressing these buttons, overlays are switched on. Pushing the button once more switches the overlay off. Which input is used as an overlay can be set in the menu opened with rotary 3. The buttons can also be assigned as shortcuts. User Guide Mix-iT for vMix v1.0 - 5 -... - Page 6 The function of this button is set in the vMix shortcut menu. See menus. 10. Auto button To run a transition automatically, the speed of the transition is set in the vMix software. 11. Cut button To switch instantly between preview and program bus. User Guide Mix-iT for vMix v1.0 - 6 -...
-
Page 7: Side Panel
Power over Ethernet. The panel now tries to connect to vMix, if this succeeds the Mix-iT model is shown in the LCD. If no connection can be established, a message appears in the screen. Check cabling and IP settings. -
Page 8: Menus
192.168.10.210 for the vMix PC 2. Mix-iT IP address If you enter this menu entry, you can change the IP Address of the Mix-it. You should enter an address that differs from the vMix address, but it must be located in the same subnet. - Page 9 5. Gateway Address This address is only used if the vMix PC and Mix-iT are not located in the same subnet. The default value for the gateway address is 192.168.10.1 6. Save & Exit This entry allows you to save the changed IP parameters. If you made any changes, the Mix-iT will now restart, and connect, using the new parameters.
-
Page 10: Button Map Menu
Button map menu By clicking rotary 2, you enter the button menu. In this menu, you can tailor the Mix-iT to your needs. 1. Map busses Traditionally, in broadcast switchers you make use of a preview bus (row of buttons) to prepare a shot, and a program bus that shows the selected shot In the 'map busses'- entry, you can change this arrangement of the busses, for example when you have a lot of titles that you want to select directly. -
Page 11: Aux Menu
To use a shortcut, you enter the vMix menu Setting - shortcuts Now click 'add' , in the window 'find'. Press the button on Mix-iT that you want to assign. Netx, you can set which fiunhction you want to start, and with what input it should be performed. -
Page 12: Update Firmware
Update firmware The current version of the firmware can be checked in the Mix-iT with rotary 1 - IP config menu, entry 8 - version info, this shows the vMix version and Mix-iT fw version. The Mix-iT firmware can be updated via Ethernet. First you need to download a zip-file containing the firmware file together with the update tool for your PC or Mac from the Mix-iT website - suport. -
Page 13: Specifications
All vMix versions Switchers Supported ATEM 20.0 or higher firmware Power Consumption 7.5V/0.2A (1.5W) Operating 0~50°C [32~114°F] Temperature Storage Temperature -10~ +60°C Dimension 345mm(W) x 185mm(L) x 60mm(H) Certifications CE / FCC Dimensions User Guide Mix-iT for vMix v1.0 - 13 -... -
Page 14: Service & Support
Service & support For more information on Mix-iT, check the website www.mix-it.tv. Here you can find the latest news, the pdf manual and information on updates. The online vMix documentation contains more information on operating your switcher software. User Guide Mix-iT for vMix v1.0...
