Summary of Contents for Echomaster PBS-MWSK

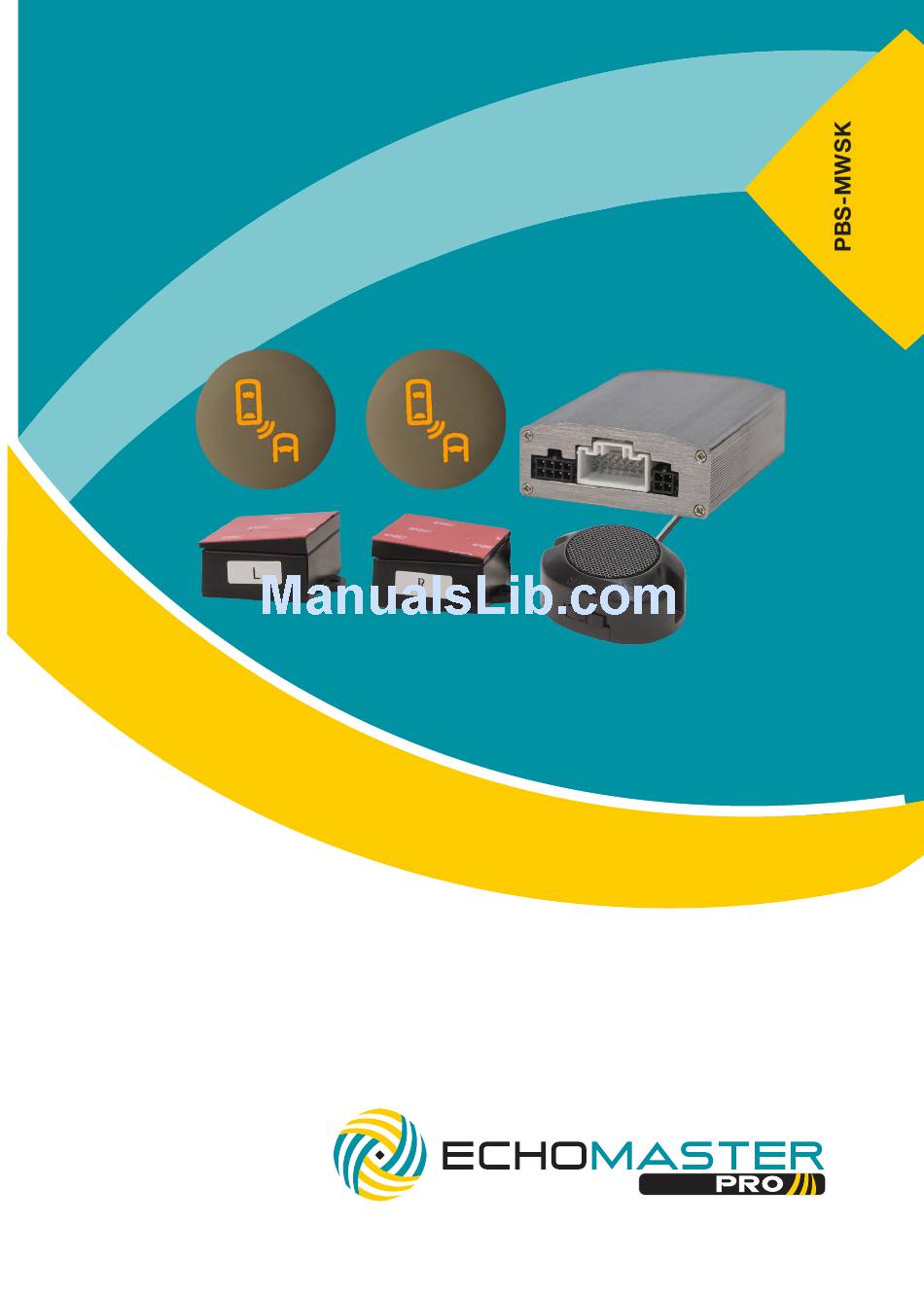

- Page 1 Microwave Blind Spot Sensor System Installation/User Manual...
-
Page 2: Box Contents
Spot Sensor system. This detection system is designed for you and your vehicle’s safety. EchoMaster® is strictly a driver assistance device, and should not be relied upon as a substitute for safe driving practices. Use common sense when driving and always follow recommended safe driving guidelines from your local state and county Department of Motor Vehicles. - Page 3 Installation Guide PBS-MWSK Microwave Blind Spot Sensor System Fitting Instructions Installing the Sensors Wiring for Left Side Harness Routing Wiring for Right Side Harness Routing Right Right A-Pillar LED Sensor ACC (Red) Buzzer RIGHT Turn Signal (Purple) Control Module RIGHT Turn Signal (Brown)
-
Page 4: Wiring Diagram
Installation Guide PBS-MWSK Microwave Blind Spot Sensor System Fitting Instructions (continued) Installing the LED indicators and Speaker Remove A-pillar covers. Find a suitable mounting location where there are no obstructions behind the pillar panel. Do NOT drill into the pillar cover prior to removing it and checking for obstructions. - Page 5 Installation Guide PBS-MWSK Microwave Blind Spot Sensor System Operating Guide System will become engaged once vehicle is running. The microwave sensor system will only detect moving objects within the blind spot of your vehicle. Only when the speed of the moving object is greater than your current speed, the system will detect and alert the driver.
- Page 6 Installation Guide PBS-MWSK Microwave Blind Spot Sensor System Dimensions (mm/in) Control Module 63mm/2.49" 63mm/2.49" LED Indicator 9.5mm/0.37" 166mm/6.54" email - support@aampglobal.com (US) tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast) email - technical.eu@aampglobal.com (Europe)
-
Page 7: Specifications
Installation Guide PBS-MWSK Microwave Blind Spot Sensor System Specifications PBS-MWSK Operating Voltage 12V DC Current Consumption 200mA Power Consumption 2.4W Operating Temperature Range -40o - +85oC Detection Range 50ft (15m) email - support@aampglobal.com (US) tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast) - Page 8 Woolmer Way, Bordon, Hampshire, United Kingdom email - support@aampglobal.com (US) tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast) email - technical.eu@aampglobal.com (Europe) tel - +44(0)1420 487110 (sales) - +44(0)1420 470618 (technical) EchoMaster is a Power Brand of AAMP Global. EchoMaster.com REV. 121516...
