LIGATURE RESISTANT SOAP DISPENSER
INSTALLATION, MAINTENANCE & OPERATION INSTRUCTIONS
This heavy-duty metal construction soap dispenser reduces ligature risk normally associated with
standard soap dispensers. This ligature resistant product can be wall mounted in any location. The
activation allows for easy one hand operation. The unit is designed to fi t standard 1250 ml soap
cartridges allowing choice of different available products including soap, foaming soap and anti-
bacterial. The front housing contains a key locking device to allow quick access for cartridge replacement.
All exposed surfaces are powder coated in a durable white fi nish. The back-mounting plate has multiple
mounting holes to allow various confi gurations. Overall dimensions are 7-7/8"W x 12-3/8"H fl ange and
5-1/16"D.
SPECIFICATIONS
·
All exterior metal construction
·
All exposed fi nish surfaces are powder coated
·
Soap dispenser mounts directly to the wall
·
Front cover is secured by mounting lock with positive engagement
·
Includes keyed locking device to allow quick access for soap replacement
·
Dispenser accepts 1250 ml Gojo soap cartridges (i.e. anti-bacteria, body wash, etc.)
·
Cartridges can be easily replaced
·
Flanged edge engages with front cover
·
Tamper Resistant Screws used for mounting
ROUGH IN
3 1
"
8
80mm
4 5
"
16
110mm
4 1
"
4
108mm
5 1
"
2
140mm
706-705-1500
1 15
"
16
8 13
"
50mm
16
224mm
2 3
"
4
70mm
1 3
"
4
44mm
MULTIPLE MOUNTING HOLES
LOCATION PROVIDED
4 7
113mm
5 1
16
128mm
12 3
"
8
316mm
1 7
"
16
36mm
BUTTON
"
16
"
#SD750
8 5
"
16
210.9mm
1 1
"
2
39mm
CONTINUED
7 7
"
8
200mm
besafepro.com
Advertisement
Table of Contents
Summary of Contents for BSP SD750
-
Page 1: Specifications

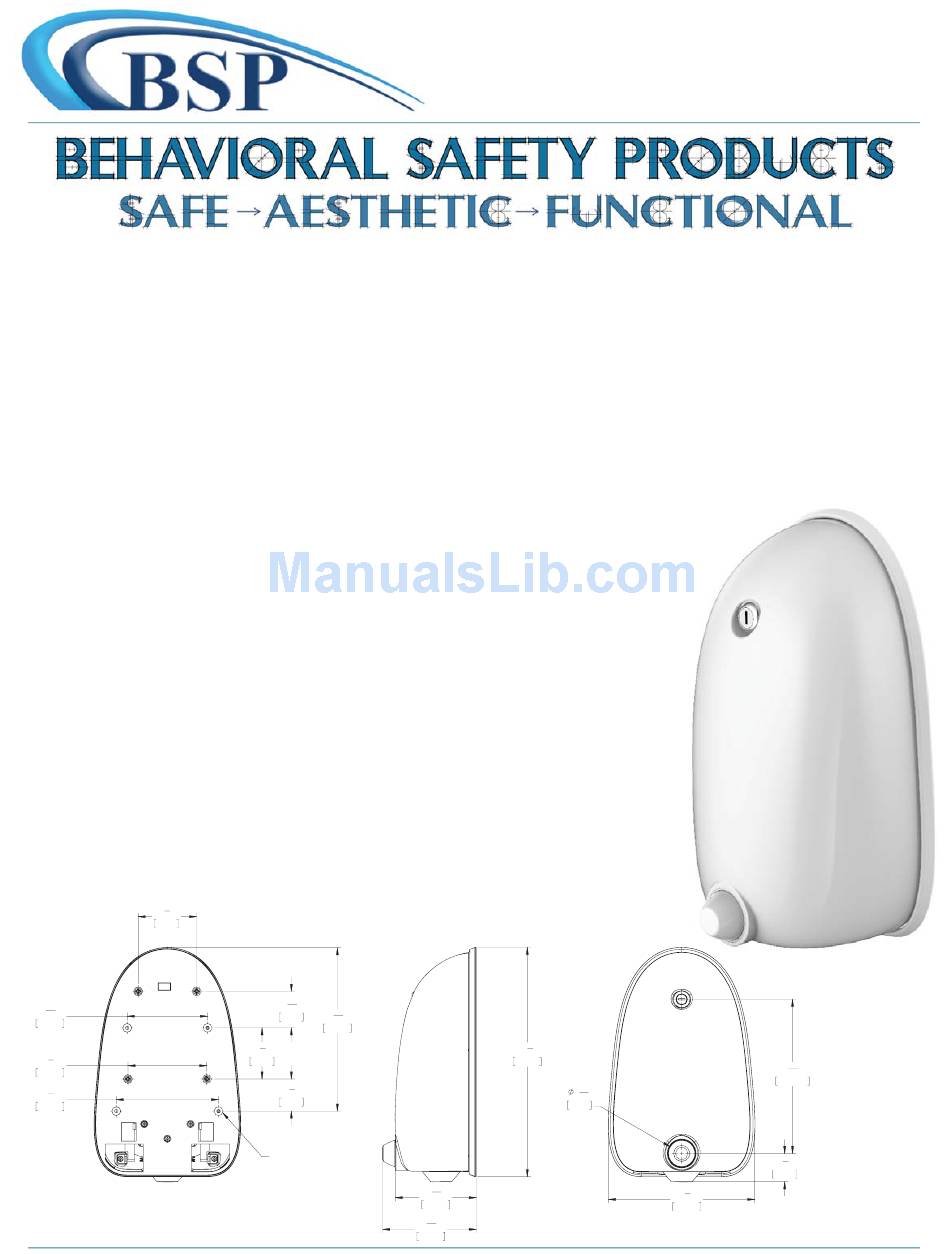

LIGATURE RESISTANT SOAP DISPENSER #SD750 INSTALLATION, MAINTENANCE & OPERATION INSTRUCTIONS This heavy-duty metal construction soap dispenser reduces ligature risk normally associated with standard soap dispensers. This ligature resistant product can be wall mounted in any location. The activation allows for easy one hand operation. The unit is designed to fi t standard 1250 ml soap cartridges allowing choice of different available products including soap, foaming soap and anti- bacterial. - Page 2 NOT represented as able to prevent such death or injury. Behavioral Safety Products, LLC (“BSP”) as the seller and Speakman Company as the manufacturer of these products have not, and will not represent or warrant to the purchaser shown in this contract (“Purchaser”) that its fi xtures and products will prevent death or injury in any case whatsoever.
- Page 3 PAGE 3 INSTALLATION INSTRUCTIONS #SD750, CONTINUED ❶ Determine desired mounting position of the Ligature Resistant Soap Dispenser. Ensure mounting location is capable of supporting the product in use. Ensure proper mounting structure is present within the wall cavity. ❷ Open the unit using the Key provided and the front cover will rotate downward.
- Page 4 PAGE 4 INSTALLATION INSTRUCTIONS #SD750, CONTINUED ❸ Position the product on the wall and mark the hole locations. Eight (8) mounting hole locations are provided. Please select a minimum of four (4) mounting holes based on your site requirements. Recommended mounting holes are highlighted below.
- Page 5 PAGE 5 SOAP BOTTLE INSTALLATION #SD750, CONTINUED STEP 1: Remove the Red Clip (1). STEP 2: Product is designed to accept GOJO®1250 mL soap refills. With the bottle inverted as shown, depress Soap Bottle Nipple upward. STEP 3: Align Soap Bottle Bracket with slots in Receiver (Blue) (2) and insert.
- Page 6 PAGE 6 SOAP BOTTLE INSTALLATION #SD750, CONTINUED STEP 4: Push Retainer Clip (red) into Yoke Slots (yellow). STEP 5: Close the unit and lock with the key. Push the button to activate the soap. TROUBLESHOOT If no soap is dispensed as you push the button: 1.
- Page 7 PAGE 7 REPAIR PARTS #SD750, CONTINUED Item Number Part Number Description RPG44-106407 Replacement Clip for SD750 RPG05-106408 Replacement Keys for SD750 (Two Keys to be Provided) besafepro.com 706-705-1500...
