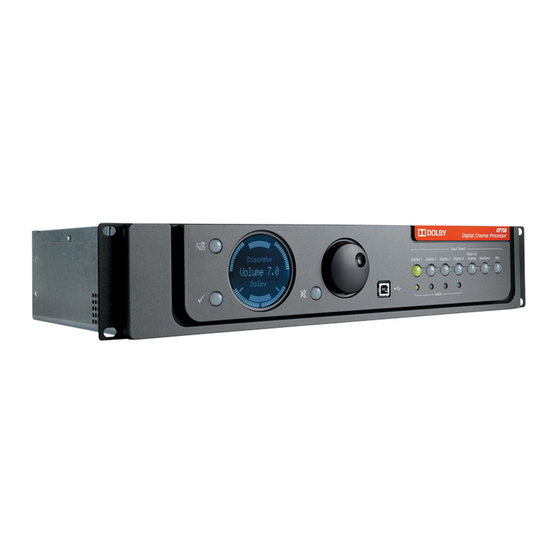

- Page 1 Dolby CP750 7.1 audio for the Dolby Multichannel Amplifier Installation Manual 7 May 2018 Issue 1...
- Page 2 Dolby Laboratories, Inc. 1275 Market Street San Francisco, CA 94103-1410 USA Telephone 415-558-0200 Fax 415-863-1373 http://www.dolby.com Trademarks Dolby and the double-D symbol are registered trademarks of Dolby Laboratories The following are trademarks of Dolby Laboratories: ™ ® Dialogue Intelligence Dolby Theatre ®...
-
Page 3: Table Of Contents
Related documentation.................. 5 2 Requirements....................6 Transmitting audio from a media block ............6 Connecting a CP750 (or other sound processor) to a media block....6 Converting audio with the Yamaha Tio1608-D..........7 3 Setting up the system................... 8 Setting up the Yamaha Tio1608-D..............8 Interconnecting the hardware ...............9... -
Page 4: Introduction To Dolby Cp750 7.1 Audio For The Dolby Multichannel Amplifier
1.1 About the CP750 (or other cinema processor) configuration for the Dolby Multichannel Amplifier You need to set up the CP750 (or other cinema processor) to transmit audio to a Dolby Multichannel Amplifier. The output of the Dolby Cinema Processor CP750 (and some other cinema processors) is analog audio, and the input of the Dolby Multichannel Amplifier is AES67 digital audio. -
Page 5: Related Documentation
1.3 Related documentation In addition to this manual, Dolby, Yamaha, and Audinate provide a full set of documentation to support the conversion of analog audio from a Dolby Cinema Processor CP750 (or other cinema processor) to AES67 digital audio. •... -
Page 6: Requirements
Converting audio with the Yamaha Tio1608-D 2.1 Transmitting audio from a media block You need to transmit 7.1 audio from a digital cinema playback system media block to a CP750 (or other cinema processor). You can use any DCI-compliant media block to transmit 7.1 audio to the CP750 (or other audio processor) AES3 digital audio input port. -
Page 7: Converting Audio With The Yamaha Tio1608-D
Requirements 2.3 Converting audio with the Yamaha Tio1608-D To convert the eight-channel analog audio from the CP750 (or other cinema processor) to digital AES67/Dante for the Multichannel Amplifier, you must use the Yamaha Tio1608-D analog-to- digital converter. This figure shows the Yamaha Tio1608-D front and rear views. -
Page 8: Setting Up The System
Setting up the system 3 Setting up the system To use the CP750 (or other cinema processor) with a Dolby Multichannel Amplifier, you need to set up and connect all of the required hardware and configure the system. • Setting up the Yamaha Tio1608-D •... -
Page 9: Interconnecting The Hardware
You will connect the analog inputs and digital outputs later when you interconnect all of the hardware components. 3.2 Interconnecting the hardware To use the CP750 (or other cinema processor) with a Dolby Multichannel Amplifier, you need to interconnect the required hardware. Dolby CP750 7.1 audio for the Dolby Multichannel Amplifier Installation Manual... -
Page 10: Using The Dante Controller For The Aes67 Setup
Procedure 1. Connect the AES3 output from a Dolby IMS2000 (or other cinema media block) channels 1-8 RJ-45 port to the CP750 (or other cinema processor) 4×AES IN port using an RJ-45 to male 25-pin D-connector audio adapter. 2. Connect the analog output from the CP750 (or other cinema processor) to the Yamaha 8 ×... - Page 11 4. Click the AES67 Config tab, then click Enabled in the drop-down menu. 5. Click the Reboot button to enable AES67, as indicated by the dialog message. Dolby CP750 7.1 audio for the Dolby Multichannel Amplifier Installation Manual 7 May 2018 Issue 1...
- Page 12 You have now completed the AES67 setup in the Dante Controller software. 8. Connect the Yamaha Tio1608-D Primary Ethernet port directly to the amplifier DOLBY ATMOS CONNECT IN port. Dolby CP750 7.1 audio for the Dolby Multichannel Amplifier Installation Manual 7 May 2018 Issue 1...
-
Page 13: Setting Up The Dolby Multichannel Amplifier
5. Click Network in the navigation bar to display the network parameters (shown in the following figure), and under the Command section, click Manual for IP configuration. When password . prompted for credentials, the default password is Dolby CP750 7.1 audio for the Dolby Multichannel Amplifier Installation Manual 7 May 2018 Issue 1... - Page 14 PTP domain number. This PTP setting allows the amplifier to search for a Yamaha device (autodetect). 7. In the Input Stream 1 drop-down menu, select the Yamaha Tio1608-D, then click Apply. Dolby CP750 7.1 audio for the Dolby Multichannel Amplifier Installation Manual 7 May 2018 Issue 1...
- Page 15 Here is a typical routing configuration: 1 = Left 2 = Right Dolby CP750 7.1 audio for the Dolby Multichannel Amplifier Installation Manual 7 May 2018 Issue 1...
-
Page 16: Configuring Advanced Connections
The Input Stream 1 field displays one Yamaha Tio1608-D and the Input Stream3 field displays another Yamaha Tio1608-D. Each device has a unique ID. Dolby CP750 7.1 audio for the Dolby Multichannel Amplifier Installation Manual 7 May 2018 Issue 1... - Page 17 (In these examples, 11a1da is the ID.) This ID identifies the Yamaha device that you need to select in the Dolby Multichannel Amplifier Network > Dolby Atmos Connect > Available Sessions screen. Dolby CP750 7.1 audio for the Dolby Multichannel Amplifier Installation Manual 7 May 2018 Issue 1...
-
Page 18: Pinouts
CP750 audio output cable pinouts 4.1 RJ-45 to 25-pin D-connector digital audio pinouts To connect the output of a digital cinema playback system to a CP750, you need to use the correct RJ-45 to 25-pin D-connector adapter pinouts. Digital cinema... - Page 19 Shield (LFE) Positive (+) Negative (-) Back Surround Left (Bsl) Shield Positive (+) Negative (-) Back Surround Right (Bsr) Shield Positive (+) Negative (-) Dolby CP750 7.1 audio for the Dolby Multichannel Amplifier Installation Manual 7 May 2018 Issue 1...
