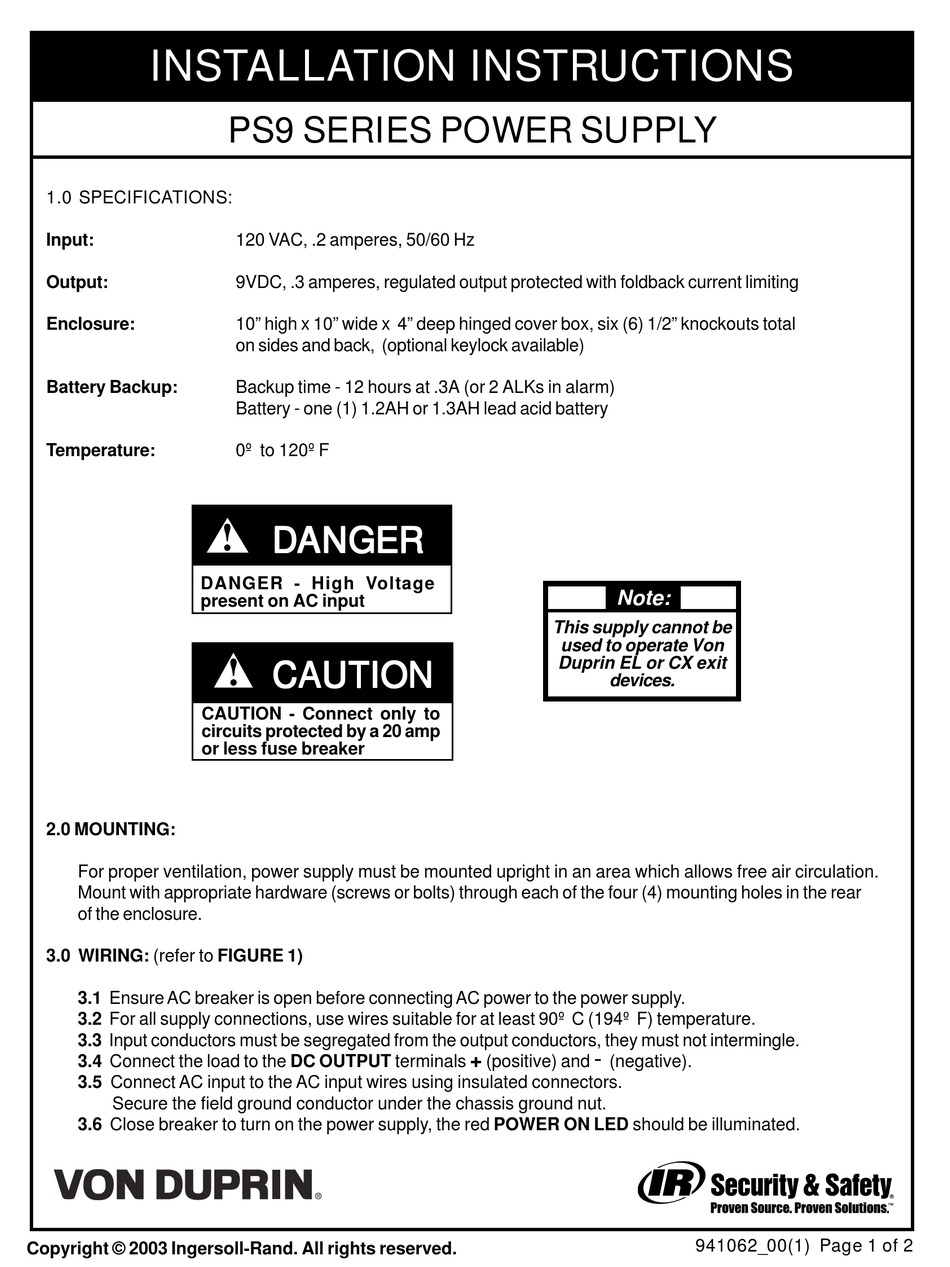

Von Duprin PS9 SERIES Installation Instructions

INSTALLATION INSTRUCTIONS

1.0 SPECIFICATIONS:

Input:
Output:
Enclosure:
Battery Backup:
Temperature:
DANGER - High Voltage
present on AC input
CAUTION - Connect only to
circuits protected by a 20 amp
or less fuse breaker

2.0 MOUNTING:

For proper ventilation, power supply must be mounted upright in an area which allows free air circulation.
Mount with appropriate hardware (screws or bolts) through each of the four (4) mounting holes in the rear
of the enclosure.
3.0 WIRING: (refer to FIGURE 1)
3.1 Ensure AC breaker is open before connecting AC power to the power supply.
3.2 For all supply connections, use wires suitable for at least 90º C (194º F) temperature.
3.3 Input conductors must be segregated from the output conductors, they must not intermingle.
3.4 Connect the load to the DC OUTPUT terminals
3.5 Connect AC input to the AC input wires using insulated connectors.
Secure the field ground conductor under the chassis ground nut.
3.6 Close breaker to turn on the power supply, the red POWER ON LED should be illuminated.
Copyright © 2003 Ingersoll-Rand. All rights reserved.
PS9 SERIES POWER SUPPLY
120 VAC, .2 amperes, 50/60 Hz
9VDC, .3 amperes, regulated output protected with foldback current limiting
10" high x 10" wide x 4" deep hinged cover box, six (6) 1/2" knockouts total
on sides and back, (optional keylock available)
Backup time - 12 hours at .3A (or 2 ALKs in alarm)
Battery - one (1) 1.2AH or 1.3AH lead acid battery
0º to 120º F
D D D D D ANGER ANGER ANGER ANGER
ANGER
!
CA CA UTION UTION
CA CA UTION CA UTION UTION
!
Note:
This supply cannot be
used to operate Von
Duprin EL or CX exit
devices.
-
+
(positive) and (negative).
*
941062_00(1) Page 1 of 2
