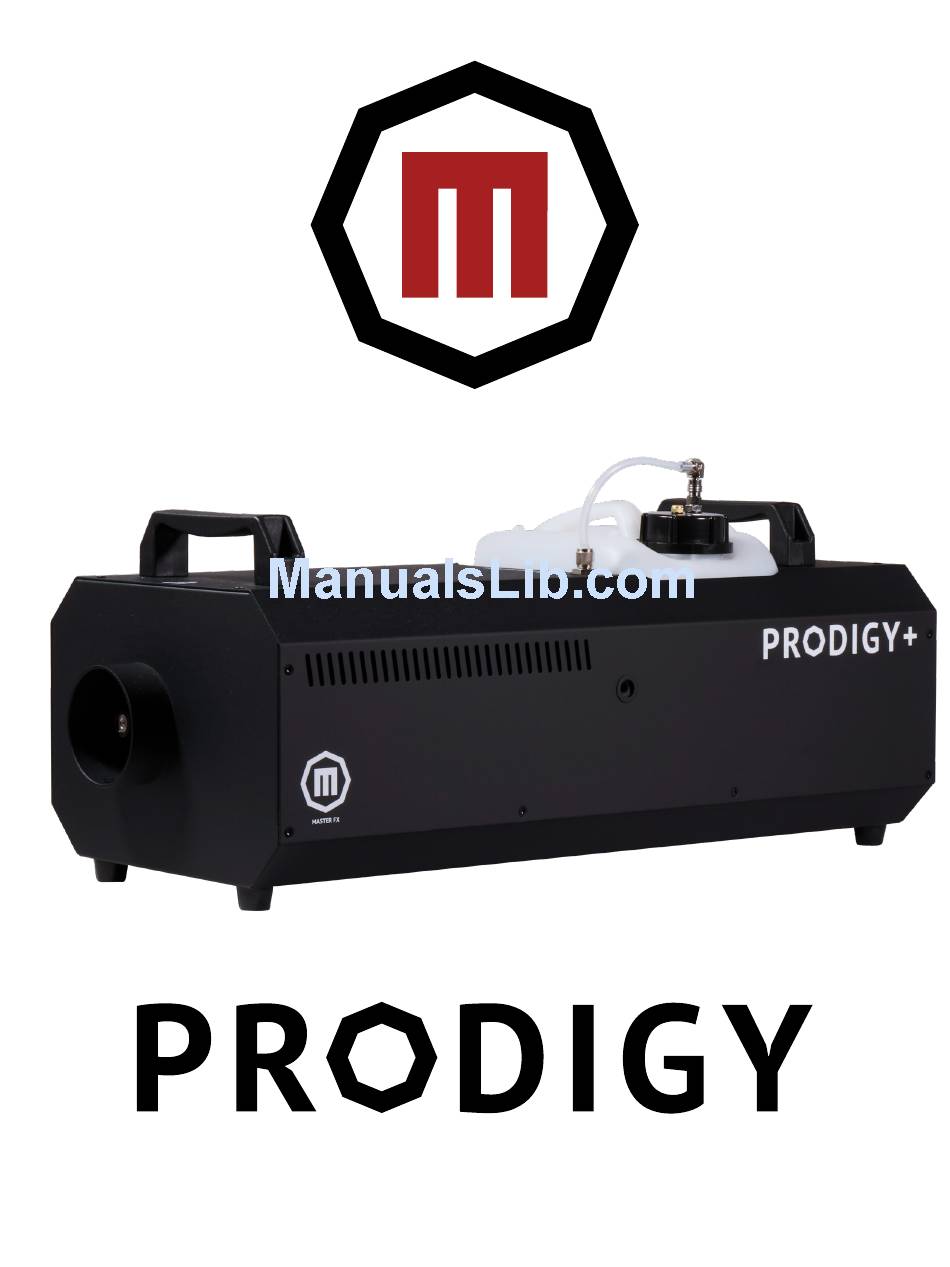

  • Page 1 U S E R M A N U A L...
  • Page 2: Table Of Contents

    T H A N K Y O U F O R Y O U R P U R C H A S E ! S E R I E S I N D E X Unpacking & Inspection..............Page 2 Production Dimensions..............Page 3 Safety Information................Page 4 Operation..................Page 5 Settings...................Page 6...
  • Page 3: Unpacking & Inspection

    Upon receiving your Prodigy or Prodigy Plus, promptly open the package and carefully remove contents to verify all components are accounted for and have been shipped and handled with care. If any parts are damaged or missing, notify your Master FX dealer. Packing list includes, but is not limited to: •...
  • Page 4: Production Dimensions

    D I M E N S I O N S & O V E R V I E W Quick Connect Hose Handle Output Nozzle Mounting Bracket Remote DMX In/Out Control Input Rocker Power Switch 15 Amp Breaker Neutrik PowerCon TRUE1 9 ⁄...
  • Page 5: Safety Information

    Keep the unit dry and away from any moisture and flammables. Only use Master FX Fog Fluids. Use of any other fluids will result in a voided warranty. Always use caution when pouring fluid and avoid any contact with hands and eyes. If contact occurs rinse thoroughly.
  • Page 6: Operation

    O P E R A T I O N S 1.) Place the Prodigy on a flat surface with at least 6 inches of open space around machine to allow for proper cooling. To avoid machine damage, remove 4 liter container before filling. Use Master FX fluids only (Visit MasterFX.com to explore various types of densities and hang times).
  • Page 7: Settings

    S E T T I N G S MASTER FX Waiting Time Set Waiting Time Set: The interval of time between each fog output while using timer 360 Sec operation. Time allowed ranges between 1 - 360 seconds. TIMER MASTER FX Timer Fog Output Timer Fog Output: The intensity of the fog output while using timer operation.
  • Page 8: Dmx Diagram

    Empty FLuid Tank To Start Pump TIMER TIMER TIMER DMX512: The Prodigy Series is equipped with DMX operation and utilizes one MASTER FX DMX512 Address: channel. Simply set the address for your external DMX controller to control fogger. (see below for DMX pin layout)
  • Page 9: Warranty Information

    Moreover, tampering with the internals and modifications will also void warranty. All service is to be done by Master FX authorized technicians only. Master FX is not liable for repair delays due to fire, strikes, or causes beyond our control.
