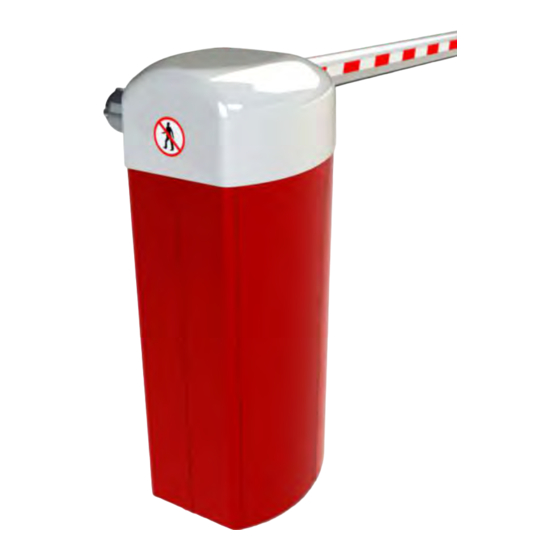

PF6000 Automatic Barrier
Installation, Operation &
Maintenance Manual
Parking and access control equipment manufactured in the UK
Rev:8.0
Automatic Barriers
Auto Sliding Gates
Auto Bi-Fold Gates
Auto Rising Kerbs
Auto Rising Bollards
Turnstiles

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PF6000 and is the answer not in the manual?

Questions and answers

Related Manuals for Parking Facilities PF6000

Summary of Contents for Parking Facilities PF6000

  • Page 1 Parking and access control equipment manufactured in the UK PF6000 Automatic Barrier Rev:8.0 Installation, Operation & Maintenance Manual Automatic Barriers Auto Sliding Gates Auto Bi-Fold Gates Auto Rising Kerbs Auto Rising Bollards Turnstiles...

  • Page 2: Table Of Contents

    Parking and access control equipment manufactured in the UK Automatic Raise Arm Barriers INDEX Page No: HEALTH & SAFETY INFORMATION WARRANTY & LIMITATIONS DELIVERY, MOVEMENT & TRANSPORT BARRIER SETUP BARRIER SEQUENCES EXPLAINED GENERAL SPECIFICATION COMPONENT IDENTIFICATION POLE ARM ADAPTOR BARRIER HANDING MANUAL RELEASE GUIDE STRAINING WIRE ASSEMBLY FIRST OPERATION MANOEUVRES...
  • Page 3 Parking and access control equipment manufactured in the UK Automatic Raise Arm Barriers Introduction and Warnings This equipment is part of a large range of traffic flow products. They are designed to be easy to install, as all settings and internal wiring have been completed in our factory. Any of the instructions in this manual should only be carried out by a qualified service engineer or a competent person.

  • Page 4: Warranty & Limitations

    Parking and access control equipment manufactured in the UK Automatic Raise Arm Barriers Warranty & Limitations Warranty and Limitations of Liability WARRANTY Our exclusive warranty is that the products are free from defects in materials and workmanship for a period of one year (or other period if specified) from date of sale by PFL. PFL MAKES NO WARRANTY OR REPRESENTATION, EXPRESS OR IMPLIED, REGARDING NON-INFRINGEMENT, MERCHANTABILITY, OR FITNESS FOR PARTICULAR PURPOSE OF THE PRODUCTS.
  • Page 5 Parking and access control equipment manufactured in the UK Automatic Raise Arm Barriers Delivery, Movement & Transportaton The barrier should ALWAYS! be moved with care and attention. The products are very heavy individually as well as a whole. You should not attempt to move this or any other products by unapproved handling methods.

  • Page 6: Barrier Setup

    Parking and access control equipment manufactured in the UK Automatic Raise Arm Barriers Barrier Setup r r i e r c B a T r a f fi Access Control Pedestal ENTRY Mains Power Safety Road Loop Loop Detector Input EXIT Mains Power Safety Road...

  • Page 7: Barrier Sequences Explained

    Parking and access control equipment manufactured in the UK Automatic Raise Arm Barriers Barrier Sequences Explained Standard Barrier Entry “One Way“ Operation Barrier raise requested (keypad/swipe card etc). Barrier Raised. Barrier “No Passage” timer started. Car moves onto safety loop (free exit loop inhibited, no passage timer cancelled). Car moves off...

  • Page 8: General Specification

    Parking and access control equipment manufactured in the UK Automatic Raise Arm Barriers General Specification Specification: Options for access control: CE Approved (Conforms to BS6571) Keypad Ÿ Maximum Boom length: Proximity Cards Ÿ 6.0 Meters Voice/Video Intercom Access Ÿ Boom Diameter: Token Acceptors Ÿ...

  • Page 9: Component Identification

    M6 Bolt 2 No. (Pole Arm) PRES PULSE FILT SENS FREQ PF6000 PF6000 Automatic Sliding Gate Manual Sliding Gate Maximum Span: 10 Metres Duty Cycle: 100% Barrier Pole Loop Detector(Optional) The numbers in the text document below relate to the drawings below.

  • Page 10: Pole Arm Adaptor

    Parking and access control equipment manufactured in the UK Automatic Raise Arm Barriers Pole Arm Adaptor Installation 60 5 45 mins 5/6. Picture shown is without pole for illustration purposes Picture shown is without pole for illustration purposes 7/8. Picture shown is now with a pole 60mm 60mm Note! YOU CAN DRILL THROUGH BOTH THE...
  • Page 11 Parking and access control equipment manufactured in the UK Automatic Raise Arm Barriers Changing Barrier Handing Remove lid Remove polearm Remove/loosen strikers...
  • Page 12 Parking and access control equipment manufactured in the UK Automatic Raise Arm Barriers Changing Barrier Handing Remove top arm bolts and rotate shaft to new correct position* Turn motor so that input shaft rotates to correct position* Flip polearm to new position and re- attach to barrier Re-attach strikers so limit switches are clicked at maximum...

  • Page 13: Barrier Handing

    Parking and access control equipment manufactured in the UK Automatic Raise Arm Barriers Changing Barrier Handing Right Handed Barrier Left Handed Barrier Ensure Power to Barrier is Isolated Barrier to be set with pole arm adaptor in down position (Horizontal) (if not fully down, use hand wind to lower until mechanical sop touches top plate) (keyway in top shaft should be facing up) Remove Circlip...

  • Page 14: Manual Release Guide

    Parking and access control equipment manufactured in the UK Automatic Raise Arm Barriers Manual Release Guide Please use the following instructions to operate the barrier manually, you MUST isolate the barrier and opened the cabinet door: Do not force the motor at any WARNING! point please be aware because of the gearing it does take a while...

  • Page 15: Straining Wire Assembly

    Parking and access control equipment manufactured in the UK Automatic Raise Arm Barriers Straining Wire Assembly...

  • Page 16: First Operation Manoeuvres

    Parking and access control equipment manufactured in the UK Automatic Raise Arm Barriers First Operation Manoeuvres 1.Before attempting the steps outlined below please obey common sense and make sure that you have closed the passage the barrier will inhibit provided a diversion and informed site inc pedestrians. 2.Follow the manual release guide in this manual and make sure the barrier moves un-hindered by inserting the winding handle and turning to make the barrier open and then close.

  • Page 17: Limit Switch Adjustment

    Parking and access control equipment manufactured in the UK Automatic Raise Arm Barriers Limit Switch Adjustment To adjust Upper limit switch trigger position. -Set barrier to closed position. -Loosen limit striker. -Move striker to desired position. -Re-tighten limit striker. Limit switch Striker Mechanical Stop Use a rubber mallet to advance the striker in small...

  • Page 18: Plc Usage Explained

    Parking and access control equipment manufactured in the UK Automatic Raise Arm Barriers PLC Usage Explained Power Inputs Inputs I1 I2 I3 I4 IB 24VDC Inputs I1...I4 IB..IE 24VDC Analog or 24VDC Memory card slot SR2 B121BD The barrier has a new program allowing you to select different modes of LCD Screen...

  • Page 19: Plc Usage Explained

    Parking and access control equipment manufactured in the UK Automatic Raise Arm Barriers PLC Usage Explained 3 Configuration and Operation Various aspects of the software can be configured to customise its operation for particular installations. Some features are controlled via the Zelio “parameters”...
  • Page 20 Parking and access control equipment manufactured in the UK Automatic Raise Arm Barriers PLC Usage Explained up and down arrows and the MENU/OK key to select YES or NO. Note: The parameters menu may be accessed in both run and stop modes. However, it is suggested that it normally be done in run mode.
  • Page 21 Parking and access control equipment manufactured in the UK Automatic Raise Arm Barriers PLC Usage Explained The table below describes what each of these fields means: TT5 Indicates which timer is currently being displayed (T5 here). Using the up and down arrows here will change screen to another clock or timer.
  • Page 22 Parking and access control equipment manufactured in the UK Automatic Raise Arm Barriers PLC Usage Explained 5 seconds Sets the delay before the gate closes after the photocells are clear. This is only active if Auto Close is enabled (see section 3.4.1). The exact behaviour is affected by the early close option –...
  • Page 23 Parking and access control equipment manufactured in the UK Automatic Raise Arm Barriers Power Inputs Inputs I1 I2 I3 I4 IB I1 I2 I3 I4 IB 24VDC Inputs I1...I4 IB..IE 24VDC Inputs I1...I4 IB..IE 24VDC Analog or 24VDC 24VDC Analog or 24VDC Memory card slot...
  • Page 24 Parking and access control equipment manufactured in the UK Automatic Raise Arm Barriers The table (bottom) relates to the diagram directly below to help you trouble shoot electrical component errors Showing program in “run mode” Showing program in “Stop mode” I1 I2 I3 I4 IB I1 I2 I3 I4 IB Example...
  • Page 25 Parking and access control equipment manufactured in the UK Automatic Raise Arm Barriers Frequently Here below are the most frequently asked questions and their answers: Asked Questions Question Answer Some parameters are not accessible. See the documentation to find out whether these elements can be changed. Example of an element I cannot access some parameters.
  • Page 26 Parking and access control equipment manufactured in the UK Automatic Raise Arm Barriers Change Summer/Winter Menu Description This function is used to change the time range automatically: Summer/winter, for smart relays with a clock. Illustration: C H A N G E S U M / W I N E U R O P E S U M M : 0 3...
  • Page 27 Parking and access control equipment manufactured in the UK Automatic Raise Arm Barriers Overview of Buttons Inputs LCD Display Escape Key Enter Key & Scroll Key Outputs How to change Barrier speed Please be aware limit switch strikers may have to be moved!! The display will show “...

  • Page 28: Inverter Usage Guide

    Parking and access control equipment manufactured in the UK Automatic Raise Arm Barriers Inverter Usage Guide Mounting and temperature conditions Install the unit vertically, at ± 10°. Do not place it close to heating elements. Leave sufficient free space to ensure that the air required for cooling purposes can circulate from the bottom to the top of the unit.
  • Page 29 Parking and access control equipment manufactured in the UK Automatic Raise Arm Barriers Inverter Configuration Configuration mode includes 3 parts: 1. MyMenu includes 11factory set parameters (among them 9 visible by default). Up to 25 parameters are available for user customiz a tion using SoMove software.

  • Page 30: Loop Guide

    Parking and access control equipment manufactured in the UK Automatic Raise Arm Barriers Loop Guide...
  • Page 31 Parking and access control equipment manufactured in the UK Automatic Raise Arm Barriers Loop Guide...
  • Page 32 Parking and access control equipment manufactured in the UK Automatic Raise Arm Barriers Loop Guide...
  • Page 33 Parking and access control equipment manufactured in the UK Automatic Raise Arm Barriers Loop Guide...
  • Page 34 Parking and access control equipment manufactured in the UK Automatic Raise Arm Barriers Loop Guide...
  • Page 35 Parking and access control equipment manufactured in the UK Automatic Raise Arm Barriers Loop Guide...

  • Page 36: Loop Guide

    Parking and access control equipment manufactured in the UK Automatic Raise Arm Barriers Loop Guide...

  • Page 37: Wiring Diagram

    Parking and access control equipment manufactured in the UK Automatic Raise Arm Barriers Wiring Diagram...
  • Page 38 Parking and access control equipment manufactured in the UK Automatic Raise Arm Barriers Wiring Diagram SAFETY SAFETY FREE EXIT /ENTRY FREE EXIT /ENTRY SPARE...

  • Page 39: Wiring Diagram

    Parking and access control equipment manufactured in the UK Automatic Raise Arm Barriers Wiring Diagram Master/Slave Wiring (open) if push buttons I1 I2 I3 I4 IB I1 I2 I3 I4 IB 24VDC Inputs I1...I4 IB..IE 24VDC Inputs I1...I4 IB..IE 24VDC Analog or 24VDC 24VDC...

  • Page 40: Wiring Information

    Parking and access control equipment manufactured in the UK Automatic Raise Arm Barriers Wiring Information Power Supply 230VAC I1 I2 I3 I4 IB Relay Inputs I1...I4 IB..IE 24VDC 24VDC Analog or 24VDC SR2 B121BD Menu/Ok Outputs Q1...Q4 : Relay 8A 24VDC 24v Negative Switch from Q4 1...

  • Page 41: Troubleshooting Guide

    Parking and access control equipment manufactured in the UK Automatic Raise Arm Barriers Troubleshooting Guide ELECTRICAL ERRORS CAUSE CORRECTION Door switch circuit not making Press door switch in and check PLC screen Blank screen on PLC but power to other PLC has developed an electrical fault or had a Change PLC devices in the control panel...
  • Page 42 Parking and access control equipment manufactured in the UK Automatic Raise Arm Barriers Troubleshooting Guide MECHANICAL ERRORS CAUSE CORRECTION Barrier arm keeps going up and down Limit switch fault check and reset limit switches Barrier creaking when moving Check turn buckle Oil or grease turn buckle Barrier motor not running Loss of voltage...

  • Page 43: Troubleshooting Guide

    Parking and access control equipment manufactured in the UK Automatic Raise Arm Barriers Troubleshooting Guide 1. If the barrier has a permanent raise signal for over 2 minutes the PLC display will show: PERMANENT RAISE SIGNAL 2. If the Free Exit/Entry Loop Detector has a constant signal the PLC display will show: CHECK FREE EXIT LOOP DETECTOR 3.
  • Page 44 Parking and access control equipment manufactured in the UK Automatic Raise Arm Barriers Barrier Maintenance As stated at the beginning of this manual we recommend a bi-annual service, but at a bare minimum, it is imperative that you get a service done once every 12 months. This is not a sales tactic in disguise, there is a very serious health and safety issue/risk associated with not complying to this.
  • Page 45 Parking and access control equipment manufactured in the UK Automatic Raise Arm Barriers Potential System Hazard Areas Please note these are things that you should look out for with the equipment that has been installed on your/your customers site. This is in no way a health and safety guide just a few key areas for you to be aware of and possibly make future changes to.

  • Page 46: Installation & Commissioning Check List

    Parking and access control equipment manufactured in the UK Automatic Raise Arm Barriers Installation/Commissioning Check List Barrier Maintenance System Operation - The user FULLY understands How to operate the system with all control devices How to isolate the power to the automation system How to manually release the system in event of power failure The safety rules and issues associated with your system Safety devices on the system have been verified and checked...
  • Page 47 Parking and access control equipment manufactured in the UK Automatic Raise Arm Barriers Service Log This Manual must be completed in accordance with the guidelines below, at any point service/repair work is carried out on the product. This is to achieve two things; 1.

  • Page 48: Commissioning Certificate

    Parking and access control equipment manufactured in the UK Commissioning Certificate We certify that the system covered by this certificate has been commissioned satisfactorily. Contract Reference Completion Contract Title Engineers Installing Commissioning Installation Commenced Works Description Part/Whole Certificate Handover Date Part 3.The system(s) designed and installed in accordance with the following documents: Document Ref: Revision...
  • Page 49 We hereby certify that the machinery stipulated below complies with all relevant provisions of the EC Machinery Directive and National Laws and Regulations adopting this Directive. Manufacturer Parking Facilities Ltd & European Unit 1 Kingsbury Link Industrial Estate Agent: Trinity Road Tamworth Staffs...
  • Page 50 Parking and access control equipment manufactured in the UK Automatic Raise Arm Barriers EUROPEAN MARK CERTIFYING CONFORMITY TO THE ESSENTIAL REQUIREMENTS OF THE STANDARDS 2006/42/EC Proudly Proudly Made in the UK 2003/108/CE Directive for waste electrical and Made using electronic Equipments recycled DISPOSE OF PROPERLY paper...
